All stock codes associated to this product
0761345235532, 0-761345-23553-2, TP550, TP-550
Features
The Advanced PSU Solution

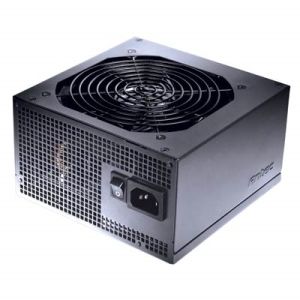

New features. Same true power. The TruePower New series by Antec offers users an advanced power supply solution, striking the perfect balance of reliability, efficiency and quality. With DC to DC voltage regulator modules, a 120mm PWM fan, and 80 PLUS Bronze certification, the TP-550, TP-650, TP-750 and TP-750 Blue are the ideal solution for elite system builders and quality-minded enthusiasts alike.
- NVIDIA SLI - ready certified
- 80PLUS Bronze Certified saves energy and lowers your electric bill
- DC to DC voltage regulator modules for greater system stability
- 120mm PWM fan runs up to 50% quieter than standard fans
- Blue internal LED illumination for TP-750 Blue
- Advanced Hybrid Cable Management improves airflow and reduces clutter
- Double layer PCB optimizes cooling efficiency and allows for heavy duty components
- Universal Input and Active Power Factor Correction
- Supports dual GPUs and dual/quad core CPUs
- 4 +12V output circuits provide stable power
- ATX12V v2.3 and EPS12V v2.91
- 1 x 6 pin and 1 x 8 (6+2) pin PCI-E graphics card connectors for TP-550
- Industrial grade protection
- Safety approval: UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI
- Weight: 2.3 kg
- Dimensions:
- 86mm (H) x 150mm (W) x 150mm (D)
Certification
Specifications
| |
Output |
|
Load MIN |
|
Range MAX |
|
Reg. |
|
Ripple & Noise |
| |
+5V |
|
0A |
|
25.0A |
|
5 |
|
50 |
| |
+12V1 |
|
0A |
|
20.0A |
|
3 |
|
120 |
| |
+12V2 |
|
0A |
|
20.0A |
|
3 |
|
120 |
| |
+12V3 |
|
0A |
|
20.0A |
|
3 |
|
120 |
| |
+12V4 |
|
0A |
|
20.0A |
|
3 |
|
120 |
| |
-12V |
|
0A |
|
0.8A |
|
10 |
|
120 |
| |
+5VSB |
|
0A |
|
3.0A |
|
5 |
|
50 |
| |
+3.3V |
|
0A |
|
25.0A
|
|
5 |
|
50 |
+3.3V, +5V max. load: 140W
+12V1, 12V2, 12V3 max. load: 45A
Input
| Input Voltage |
|
100~240VAC 10% |
| Input frequency Range |
|
47Hz ~ 63Hz |
| Input Current |
|
8A @ 115VAC, 4A @ 230VAC |
| Efficiency |
|
Min 82% at full load |
