Features
Don't Compromise - Save Energy and Maximize Performance

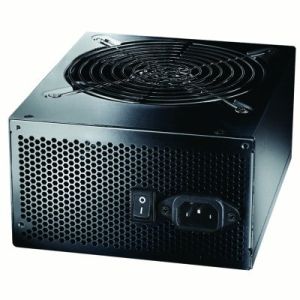

Get more power and lower your electric bill with the new EarthWatts 750. One of the most environmentally friendly power supplies available, Antec's EarthWatts 750 efficiently delivers 750 watts of reliable and stable power while meeting 80 PLUS certification, the highest standard in energy efficiency. That means the EarthWatts 750 consumes up to 33% less energy than an equivalent power supply with absolutely no reduction in performance. Plus, the EarthWatts 750 boasts Universal Input to automatically work on any power grid on the planet, and a 135mm fan to stay cool. Get the power you need, save money and help protect the environment with Antec's EarthWatts 750!
80 PLUS certified: reduces operating costs and protects the environment
ATX12V version 2.3
Universal Input
NVIDIA SLI-ready certified
Active Power Factor Correction (PFC)
Advanced Hybrid Cable Management improves airflow and reduces clutter
Four 12V output circuits provide added system stability
135mm low noise cooling fan
Industrial-grade protection circuitry prevents damage resulting from short circuits, power overloads, over voltage, and under voltage
9 SATA connectors
2 x 8-pin (6+2) and 2 x 6-pin PCI-E connectors
Safety approvals: UL, CUL, FCC, TV, CE, CB, C-tick, CCC
PF value up to 99%
Operating Temperature: 0C to 50C
AQ3 - Antec Quality three-year parts and labor warranty
Operating Temperature: 0C to 50C
Unit Dimensions:
- 86.4mm (H) x 149.9mm (W) x 180.4mm (D)
Package Dimensions:
- 238.8mm (H) x 238.8mm" (W) x 109.2mm (D)
Weight: 2.6 kg
Certification
Specifications
| |
Output Voltage |
|
Range MAX |
|
Reg. |
|
Ripple & Noise |
|
| |
+5V |
|
25.0A |
|
5 |
|
50 |
|
| |
+12V1 |
|
25.0A |
|
5 |
|
120 |
|
| |
+12V2 |
|
25.0A |
|
5 |
|
120 |
|
| |
+12V3 |
|
25.0A |
|
5 |
|
120 |
|
| |
+12V4 |
|
25.0A |
|
5 |
|
120 |
|
| |
-12V |
|
0.5A |
|
10 |
|
120 |
|
| |
+5VSB |
|
3.0A |
|
5 |
|
50 |
|
| |
+3.3V |
|
25.0A |
|
5 |
|
50 |
|
+3.3V, +5V max. load: 170W
+12V1, 12V2, 12V3 & 12V4 max. load: 56A
Input
| Input Voltage |
|
100~240VAC 10% |
| Input frequency Range |
|
47Hz ~ 63Hz |
| Input Current |
|
11A @ 100Vac, 5.5A @ 240 Vac |
| Efficiency |
|
Greater than 80% |
