IMG 1 of 5
No Longer Available

Part Number:
100768
(?) Brand:
Manuf No:
DX630.AAU
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
DX630.AAU, DX630AAU, 1306809, 8801031255108
Features
High Brightness & Contrast Ratio with XGA resolution

The DX630 offers native 1024x768 XGA resolution, 3000 ANSI lumens and a 2300:1 contrast ratio. (max resolution:SXGA+)

3000 ANSI-lumens High brightness makes the DX630 capable of displaying a bright, easily viewed image under lighted zone

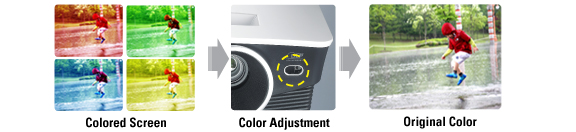

Auto Color Adjustment

LG DX630 automatically controls the R/G/B Gain by sensing the color of the wall with its built-in camera

Auto Color

Built in camera detects wall color and delivers the original color of the source.

Auto Color


Brilliant Color

Brilliant Color Technology provides increased brightness in non-primary colors and boosts overall color intensity by amplifying mid-tone color.

Brilliant Color
Brilliant Color


Extremely Low Noise 24dB (Eco)

The noise level of the DX630 is the worlds lowest among the 3000ANSI-Lumens grade business projectors.This excellent noise reduction achieved by ICND (Integrated Cooling and Noise Design) technology, is an LG patent.

Low Noise


Expert Color Management

This function allows the users to separately control the Gain (contrast), saturation, and the color tone of Red, Green, Blue, Cyan, Mgt, and Yellow.

Expert Color


Presentation Timer

Presentation Timer' function is useful when a user wants to be notified about the presentation time limit or assignment execution time.

Presentation Timer


Quick Power on/off

LG DX630 can displays its full-bright picture within 12 sec from power on and shut down the cooling operation within 10 sec. So, User can save the waiting time before and after of usage

Quick On/Off


Front Exhaust

Front Exhaust Minimize user inconvenience by exhausting hot air to front side

Front Exhaust


INPUT / OUTPUT Terminals
INPUT/ OUTPUT Terminal

Specifications
Projection System
Display Technology DLP / 0.55 inch DMD
Native Resolution XGA (1024x768), Support SXGA+(1400x1050)
Brightness 3000 ANSI-Lumens
Contrast Ratio 2300:1
Noise High Brightness 29dB

Economic 24dB
Uniformity >95%
Color Wheel 4 segment(RGBW)
Iris -
Projection Offset 115%
Projection Lens Focal Length 22~22.5mm

Manual Focus
Manual Zoom 1.17x
Projection Image Screen Size 40~250

Standard 100inch@4m
Throw Ratio 1.94/2.27(wide/tele)
Lamp 230W

Life 2000/3000hrs(Economic)
Lens Shift -
General Specification
Menu Language Korean, English, French, Spanish, German, Italian, Swedish, Portuguese, Chinese Simplifie, polski
Aspect Ratio Control Native 4:3, Support 16:9
Sound -
Dimension 302x271x95
Weight 3.4kg
Power Consumption 290W / ST-BY 5W under
Power Supply AC 100 ~ 240V(Free Voltage), 50Hz/60Hz
Signal Compatibility RGB Up to SXGA+(1400X1050@60Hz)

Digital(HDMI/DVI) Up to SXGA+(1400X1050@60Hz)
Component 1080i / 720p / 576P / 576i / 480p / 480i
Video NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
IN/OUT Terminals
RGB IN 1xD sub 15
RGB OUT 1xD sub 15
DIGITAL 1xHDMI / ver 1.3
VIDEO IN 1xComponent(YPbPr)

1xS-Video
1xComposite
Control RS-232C
USB Type B / SVC
Special Features Keystone Correction, Picture Still, Quick On/Off, Auto Sleep, Image Flip, Auto Color ADJ, Presentation Timer, Brilliant Color, Expert Color Management
Accessory
Carry Bag -
Remote Control Yes
Cable Power Cord

D sub 15
Ceiling Mount -
Lamp Option(AJ-LDX6)
etc. Lens Cap,CD Manual, 2xAAA Battery

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (LG) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
