VW202B
To transfer digital video signal from a PC to LCD monitors via USB 2.0 interface, providing the flexibility for multi-screen applications.
ASUS EzLink Display: Easy to Link, Easy to Expand
Word, Excel, Internet Explorer, Calculator, Powerpoint, stock information, instant messengers, media players... Cant fit all of these windows into one screen? Then try six! With ASUS EzLink monitors, adding new monitors is no more difficult than plugging your USB stick into any desktop or laptop! Experience enhanced multitasking with multi-screen applications* - with all of these open windows at one go, youll never want to go back to just using one!
* All connected monitors require the ASUS EzLink functionAdopting the latest ASUS EzLink Technology, the VW202B is the best choices to help broaden your screenspace for enhanced work efficiency. After installing the EzLink driver, you can expand almost any PC with ASUS EzLink Displays via USB2.0 input for a better experience than VGA.
Plug and display to extend viewing area and increase productivity by adding additional displays without an extra graphics card, much deployment cost, and additional technical training.
Multi-monitor for Enhanced Working Efficiency

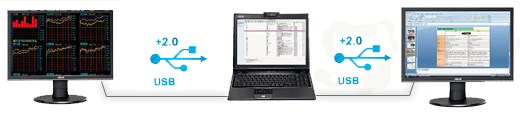

Support up to six monitors to be chained over the USB 2.0 hub and cables connected to a single PC or laptop. EzLink driver helps automatically revert back to a one-screen setting when the USB is disconnected. When you reconnect the USB with the computer, EzLink automatically switches to multi-monitor mode.
VW202B is perfect for those who require a large amount of screen and desktop space like banking and finance executives, SOHO workers, professional bloggers, information seekers, etc.
Exceptional Image Quality with Rich Video Features
- High-quality 16:10 widescreen panel
1680 x 1050 high resolution and wide viewing angle make the LCD monitor perfect for viewing high-quality images. 16.7 million display colors deliver rich and colorful images to surprise your eyes.
- ASCR(ASUS Smart Contrast Ratio) Technology
ASCR(ASUS Smart Contrast Ratio) Technology automatically adjusts the luminance of the backlight for better displays according to the image contents, and improves the contrast ratio to 3000:1.
- Display 4:3 Contents Perfectly on Widescreen
Aspect control function enables 4:3 contents without image distortion on the widescreen.
- Intelligent image enhancement
Splendid Video Intelligence Technology fine tunes the color, brightness, contrast and sharpness of images in different video applications and offers 5 preset video modes (Scenery, Theater, Games, Night View and Standard) selection via hotkey and 3 skin tone options (Reddish, Yellowish and Natural).
|
|
|
TFT-LCD Panel
|
Panel Size: 20.1 Wide Screen
True Resolution: WSXGA+ 1680x1050
Pixel Pitch: 0.258mm
Brightness(Max): 300 cd/
Contrast Ratio (Max.): 3000 :1 (ASCR)
Display Color: 16.7M
Viewing Angle (CR10): 160(H)/160(V)
Response Time: 5 ms
|
|
Video Features
|
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes (5 modes)
Skin-Tone Selection (3 mode)
Color Temperature Selection(5 modes)
|
|
Convenient Hotkey
|
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
|
|
Input / Output
|
PC Input: USB 2.0(EzLink)/D-Sub
|
|
Signal Frequency
|
Analog Signal Frequency: 31~80KHz(H) / 56~75Hz(V)
Digital Signal Frequency: 31~80KHz(H) / 56~75Hz(V)
|
|
Power Consumption
|
Power Consumption < 49 W
Power Saving Mode < 2 W
|
|
Mechanical Design
|
Chassis Colors: Black
Tilt: +20~ -5
VESA Wall Mounting: 100x100mm
|
|
Security
|
Kensington lock
|
|
Dimension (WxHxD mm)
|
Phys.Dimension(WxHxD): 473x392x210mm
Box Dimension(WxHxD): 570x455x150mm
|
|
Weight
|
Net Weight (Esti.): 4.4 kg
Gross Weight (Esti.): 6.5 kg
|
|
Accessory
|
VGA cable
Power cord
USB cable
Quick start guide
support CD (EzLink Driver)
warranty card
|
|
Regulation Approval
|
Energy Star, TCO03, CSA, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, PSB, RoHS, WEEE, WHQL  |
|
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
|
