ThermalTake 500W Toughpower QFan - ATX 12V 2.2, 140mm Fan, Cable Management
  • 6x SATA, 2x PCI-E 6-Pin, 2x Floppy

IMG 1 of 1
No Longer Available
Part Number:
101017
(?) Brand:
ThermalTake Web Site
Manuf No:
W0151R
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
W0151R
  W0151RU
12V Combined Output 36A AMD / Intel Dual Core Support ATX 12V 2.2 Complies EPS 12V 2.91 Version PCI Express Connectors X2 S-ATA Connectors X6 Quiet Fan

Patent Information
Country
Patent No.
Taiwan
M 314373

What is QFan?

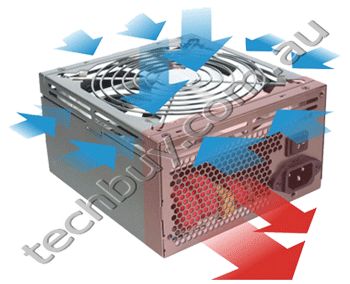

The 140mm QFan features a unique patent designed blade shape and a 360non-frame, effectively reducing the noise level. The air inlet is designed to increase air flow and reduce the sound of wind shear.Please see Figure 1, Figure 2
Non frame 140mm QFanFigure 1
Standard 140mm FanFigure 2

Why use QFan?
The QFan special five way air-intake housing design creates the best heat dissipation environment for the non-frame 140mm QFan at minimal noise level. Therefore, the fan at low speed setting yield a 17.1 dBA without compromising performance.
Please see Figure 3, Figure 4, Figure 5
Surround opening housingFigure 3
Standard housing FanFigure 4

World 1st 5-way air intake housing not only increase air flow
but also decrease the noise level. Thus, this unique & patented design
yield incredible 17.1 dB noise level. Figure 5

How QFan performances?
The 140mm QFan effectively decrease the noise level inside the PSU. The report as below:

Standard Fan dB(A)
QFan dB(A)

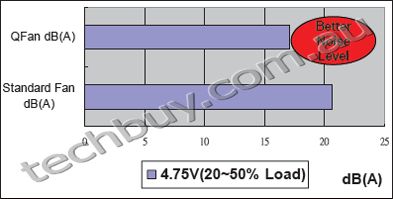

4.75V(20~50% Load)
20.7
17.1

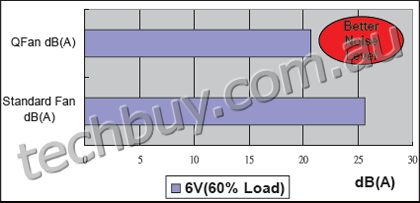

6V(60% Load)
25.6
20.7

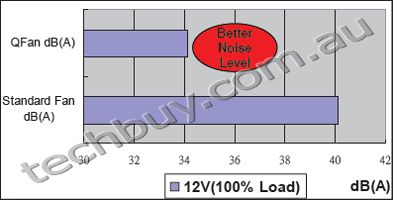

12V(100% Load)
40.1
34.1


140mm QFan & Standard Fan Comparison Chart
The 140mm ball bearing QFan effectively decreases the noise level inside the PSU. Performance report as below:




Standard Fan
QFan

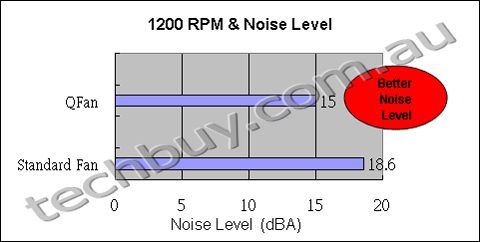

1200 RPM
18.6
15

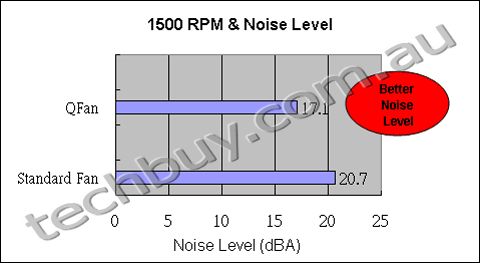

1500 RPM
20.7
17.1



Extremely Quiet 140mm ball-bearing fan decreases 17% noise level
Stable 500W continuous output (at 50 operating environment)
Complies with ATX 12V 2.2 & EPS 12V 2.91 version
Three independent & dedicated +12V rails (12V1,12V2,12V3 ) provide stable and superior performance for PC system (combined loading of 36A)
Supports Dual Core CPU and all Multi-Core GPU technologies
Modularized Cable Management to eliminate clutter and improve airflow inside the case
Independent Voltage Circuit: offers unflappable current delivery under heavy load
Strict voltage regulation (3%): provides steady voltage for system
Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)
Protections: Over Current, Over Voltage, and Short-Circuit protection
Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified

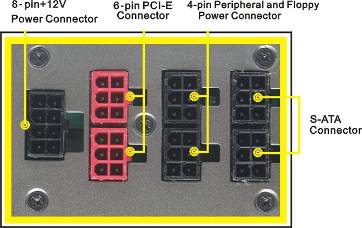

Total Output Connector:

20+4-pin Main Connector
X1
 4-pin / 8-pin +12V Power Connector X1 4-pin Peripheral Connector
X7
Floppy Connector
X2

5-pin S-ATA Connector
X6 		6-pin PCI Express Connector
X2


Technology Features:
"Special design of non-frame cooling fan"



Unique Housing design: Multi-directional air intake increases airflow
while keeping the extreme low acoustic noise


Embedded Socket Design:


Specification:
GENERAL:
- Wattage 500 Watts
- Fan 140 mm QFan
1900 10% RPM
Air Flow: 93 CFM
- Efficiency 85% +
- PFC
Active PFC
(PF > 0.9)
- Hold-Up Time
16ms at 80% of full load
- Switches
ATX Logic on-off additional power rocker switch
- Motherboard Connectors

24-pin Main Connector
8-pin Power Connector
4-pin Power Connector
- Power Good Signal
100-500 ms
- Form Factor

ATX 12V 2.2
- Dimension 6.3 x 5.9 x 3.3 inch (L)x(W)x(H)
160 x 150 x 85 mm (L)x(W)x(H)
- Warranty 5 Years
- Certifications N/A
AC INPUT:
- Input Voltage
115 VAC ~ 230 VAC
- Input Current
100Vac / 6.0A max. 200Vac / 3.0A max.
- Input Frequency Range
47 ~ 63 Hz
- Inrush Current
- Operating Range
- MTBF 120,000 hours minimum
- RFI / EMI CE, CB, TUV, FCC, UL, CUL, BSMI
DC OUTPUT:

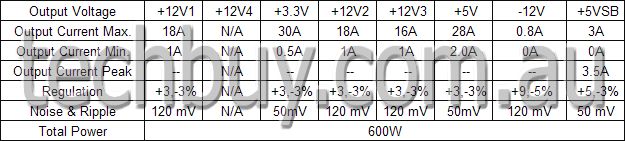

- Output Table
ENVIRONMENT:
- Operating Temperature
10 to 50
- Storage Temperature -20 to 70
- Operating Humidity
20% to 90%, non-condensing
- Storage Humidity
5% to 95%, non-condensing
PROTECTION:
- Over Voltage Protection +3.3V trip point @ 4.5 Vmax
+5.0V trip point @ 7.0 Vmax
+12.0V trip point @15.6 Vmax
- Over Current Protection
Not over 240VA for +5V & +3.3V output voltage
19A to 25A for +12V rails
- Over Load Protection
- Over Termperature Protection
- Under Voltage Protection
- Short Circuit Protection
All output to GND

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 Years Warranty

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
