CoolerMaster HYPER-N520 CPU Cooler - Intel LGA 1366/775, AMD 754/939/AM2/AM2+, 90mm, 1,800rpm, 43.8CFM, 19dBA

IMG 1 of 1
No Longer Available
Part Number:
101853
(?) Brand:
CoolerMaster Web Site
Manuf No:
HYPER-N520
HYPERN520
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HYPERN520, HYPER-N520

Features
    Universal Design
  • Intel LGA775
  • AMD (754/939/940/AM2/AM2+)
    Optimum Air Flow
  • Distinct appearance with dual fan bracket
  • Unique dual fan cooling design ensures cool air acceleratesstraight through the heatsink
    Superior Cooling Performance
  • Mirror finished copper base guarantees perfect contactbetween CPU and cooler
  • 5 heat pipes optimize heat transfer

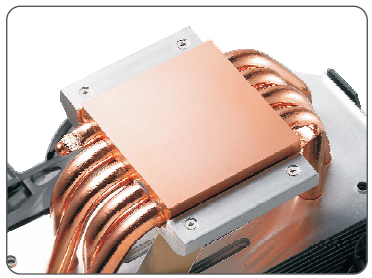

Pure Copper Base & Heat Pipes

Pure Copper Base provides excellent cooling performance with 5 Heat Pipes to maximize heat transfer >Aluminum Fins, Dual Fan & Unique Adapter

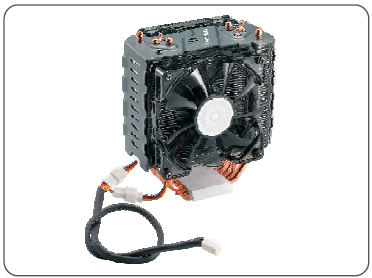

Dual Fan o for air flow through heatsink with Wide Surface Aluminum Fin Design to improve heat dissipation; comes with a 2 to 1 PlugAdapter for easy installation Applications



Model RR-920-N520-GP

CPU Socket Supports Core i7 with socket LGA 1366

Intel Socket T (LGA 775); Socket J (LGA 771 Skulltrail only)

AMD Socket AM2+ / AM2 / 939 / 754

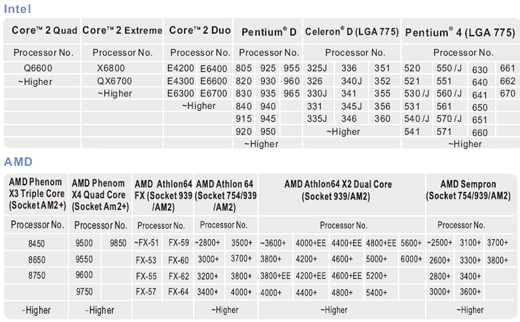

CPU Support Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium D / Celeron / Celeron D

AMD Phenom X4 Quad Core / Athlon 64 X2 Dual Core / Pentium 4 / Phenom X3 Triple Core / Athlon 64 FX / Athlon 64 / Sempron

Dimension 122.35 x 102.5 x 141 mm

Weight 1.52 lbs

Heat Sink Dimensions 115 x 62.3 x 141 mm

Heat Sink Material Cu base, Al fin, 5 heatpipes

Heat Pipes Dimensions O6 mm

Fan Dimension 92 x 92 x 25 mm

Fan Speed 1800 R.P.M.

Fan Airflow 43.8 CFM (Total)

Fan Air Pressure 3.24 mmH2O (Total)

Bearing Type Sleeve

Fan Life Expectancy 70,000 hours

Fan Noise Level (dB-A) 19 dBA

Connector 3-pin

UPC Code 884102002885


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
