All stock codes associated to this product
MB763X/A, XMB763X/A
Wireless network users demand two things: higher speeds and greater range. The AirPort Extreme Base Station delivers on both fronts and offers superfast wireless network access throughout just about any home, office, or classroom.1

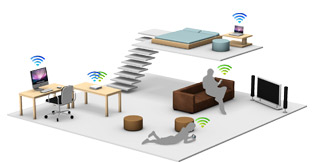

Simultaneous dual-band support.
Some Wi-Fi devices use the 2.4GHz wireless band, including iPhone, iPod touch, and devices using 802.11b/g. Other devices can use either 2.4GHz or the higher-speed 5GHz band, such as the latest 802.11n-based Mac computers and Apple TV. Instead of choosing one of the bands, AirPort Extreme now operates simultaneously on both bands, and your multiband devices automatically use the best available band. This means all your Wi-Fi devices get the fastest possible wireless performance and the best possible range.
Blazing performance.
Based on an IEEE 802.11n draft specification, AirPort Extreme uses a technology called multiple-input multiple-output (MIMO) to transmit multiple data streams simultaneously. The result? AirPort Extreme delivers data transfer speeds up to five times those of previous-generation 802.11g wireless networks while achieving up to twice the range.2
And with its support for both the 2.4GHz and 5GHz wireless bands, AirPort Extreme reduces the possibility of interference from appliances and cordless phones that use the 2.4GHz band.
Imagine the possibilities.
Up to 50 people can all share the same Internet connection, exchange files using the file-sharing capability built into Mac OS X or Windows, access local and remote file servers, annihilate the competition in multiplayer games anything a typical network user can do, plus a number of things that are decidedly not typical, such as wireless storage and printing.3
Share the Internet securely withguestnetworking.

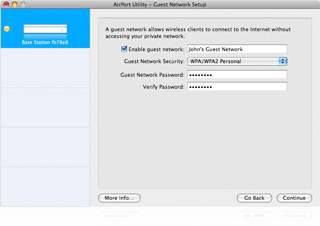

Now its easier than ever to allow guests to use your Internet connection without sharing your password or giving them access to the rest of your network. Simply enable the new guest networking feature using the AirPort Utility application and create a separate Wi-Fi network just for your friends. You can set up this guest network with a different password or with none at all. Your primary network including your printer, attached drives, or other devices remains secure.
Compatible with 802.11a/b/g.
All currently shipping Mac systems support the next-generation 802.11n technology in the AirPort Extreme Base Station. And AirPort Extreme is compatible with Mac computers, PCs, and wireless devices such as iPhone and iPod touch that use 802.11a, b, or g technologies. With AirPort Extreme you can also rest assured that it works with other certified 802.11n draft 2.0 products.
Technical Specifications
Size and weight
- Length: 6.5 inches (165 mm)
- Width: 6.5 inches (165 mm)
- Height: 1.3 inches (34 mm)
- Weight: 1.66 pounds (753 grams)1
Wireless protocols
Frequency bands
- 2.4GHz and 5GHz simultaneously
Radio output power
Compatibility
Interoperable with Wi-Fi Certified 802.11a, 802.11b, 802.11g, or 802.11n enabled Mac computers, iPhone, iPod touch, and Windows-based PCs- NAT, DHCP, PPPoE, VPN Passthrough (IPSec, PPTP, and L2TP), DNS Proxy, SNMP, IPv6 (6to4 and manual tunnels)
Included software and accessories
- AirPort Utility for Mac and Windows
AirPort Disk Utility for Mac OS X v10.4 Tiger and Windows- 802.11n Enabler for Mac OS X v10.4 Tiger3
- Bonjour for Windows
- Power supply with cord
- Printed and electronic documentation
Security
- Wi-Fi Protected Access (WPA/WPA2)4
Wireless security (WEP) configurable for 40-bit and 128-bit encryption- MAC address filtering
- NAT firewall
- Support for RADIUS authentication
- 802.1X, PEAP, LEAP, TTLS, TLS, FAST
- Time-based access control

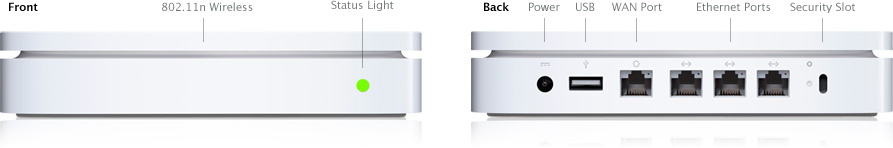

Interfaces
- One Gigabit Ethernet WAN port for connecting a DSL or cable modem
- Three Gigabit Ethernet LAN ports for connecting computers or network devices
- USB 2.0 port for connecting a USB printer or USB external hard drive
- 802.11n wireless2
Environmental requirements
- Operating temperature: 32 to 95 F (0 to 35 C)
- Storage temperature: -13 to 140 F (-25 to 60 C)
- Relative humidity (operational): 20% to 80%
- Relative humidity (storage): 10% to 90%
- Maximum operating altitude: 10,000 feet
- Maximum storage altitude: 15,000 feet
Agency approvals
- FCC Part 15 Class B, Canada RSS-210, EN 300-328, EN 301-489, EN 301 893, ARIB STD-T66, RCR STD-T33, AS/NZS 4268: 2003, UL 60950, CSA-C22.2 No. 60950
Channels
- Channels 1-11, 36-48, and 149-165 approved for use in the United States and Canada
- Channels 1-13, 36-64, and 100-140 approved for use in Japan
- Channels 1-13, 36-64, 100-112, and 132-140 approved for use in Europe
- Channels 1-13, 36-64, and 149-165 approved for use in Australia, Hong Kong, and New Zealand
Electrical
href="/airportextreme/360/360.html"
System Requirements
| |
For Mac Users |
For PC Users |
| For setup and administration |
Mac with Mac OS X v10.4 or later, CD drive, and Ethernet or wireless networking capability |
PC with Windows XP (SP3) or Windows Vista (SP1), CD drive, and Ethernet or wireless networking capability |
| For wireless client access |
Mac with AirPort wireless capability |
PC with Wi-Fi Certified 802.11a/b/g/n card |
| For shared printing with a USB printer |
- USB printer
- Mac with Mac OS X v10.2.7 or later
|
- USB printer
- PC with Windows XP (SP3) or Windows Vista (SP1); Bonjour for Windows (included on AirPort Extreme CD)
|
| For AirPort Disk with a USB hard drive |
Mac with Mac OS X v10.4.8 or later |
PC with Windows XP (SP3) or Windows Vista (SP1); Bonjour for Windows (included on AirPort Extreme CD) |
Networking
