 AMD Phenom II/Athlon X4/Athlon X3/ Athlon X2 (AM3 CPU)
This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual- channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.
|
  AMD Phenom X4/ Phenom X3 / Athlon X2/ Athlon/ Sempron processors (socket AM2+/AM2)
This motherboard supports AMD Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus, and AMD Cool n QuietTM Technology.
|
  HyperTransport 3.0 Support
HyperTransport 3.0 technology provides 2.6 times more bandwidth than HyperTransport 1.0, radically improving system efficiency to create a smoother, faster computing environment. |
  O.C. DDR2 1200
To attain top performance, ASUS engineers have successfully unleashed DDR2 1200(O.C.) MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications.
*Ensure that you download and update to the latest BIOS at www.asus.com and purchase the memory modules listed in the ASUS official memory Qualified Vendors Lists (QVL).
** We recommend that you install the DDR2 1200 memory modules on the yellow slots for better performance.
|
 AMD Cool n Quiet! Technology

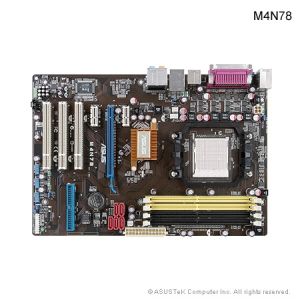

M4N78 supports AMD Cool n Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.
|
 NVIDIA GeForce 720D
NVIDIA nForce 720D supports HyperTransport 3.0 interface, PCI Express 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMDs latest AM3 / AM2+ and multi-core CPUs to provide excellent system performance.
|
  Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors.
|
 PCIe 2.0 support
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
|
|
 ASUS Express Gate
Instant Internet Access without Entering Windows!
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.
* File downloading and uploading on USB drives only
** The actual boot time is subject to hardware configurations and product models
|
 ASUS EPU- 4 Engine
System Level Energy Saving
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money!
|
 ASUS EZ Flash2
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.
|
 ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
|
  AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
 Turbo Key
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
|
 AI NET2
Diagnose LAN connection before entering OS!
AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.
|
 MyLogo2
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
|
|
GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.
|
