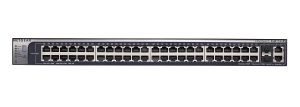

Netgear FSM7250RS-100AJS ProSafe Switch - 48-Port 10/100

Flexible, Stackable, Fast Ethernet Switching!

NETGEAR's low-cost, stackable, Fast Ethernet switches deliver maximum throughput and flexibility where you need it to high-density workgroups at the edge of the network, or in the backbone of small networks. The ProSafe FSM7226RS and FSM7250RS are managed 24-port and 48-port switches with auto-sensing 10/100 ports and two 10/100/1000 ports. This enables fiber connectivity through two hot-swappable small form-factor pluggable (SFP) Gigabit interfaces. The non-blocking design of the switches delivers simultaneous, full wire-speed, low-latency throughput to all ports. In addition, their 1U rack-mount form factor uses less rack space and provides a lower per-port cost than comparable Fast Ethernet switches.

Static routing ensures reliable routing between VLANs and network segmentation where and when you need it, at no additional cost. Plus, two high speed HDMI based dedicated stacking ports (10Gbps stacking speed per switch)in the back provide extra bandwidth for stacking application.

Robust security features include IEEE 802.1x port-based authenticationensuring that only authorized users can access your network and Access Control List (ACL) provides higher level of security for specific traffic and applications. Secure management of the switches is available through Secure Sockets Layer (SSLv3) for the Web GUI and Secure Shell (SSH) forCommand Line Interface sessions.Multiple switches can be securely managed via SNMPv3 with NETGEAR's ProSafe Network Management Software NMS100. These switcheshave an industry standard command line interface (CLI), which enables customers to cut down their operational expenses. If IT organization is already trained with industry certification, they can configure these NETGEAR switches without going through a recertification process. For workgroup deployments in cost-sensitive organizations that require Layer 2 switching, the flexibility of stacking and additional Gigabit capability, NETGEAR's ProSafeFSM7226RS and FSM7250RS switches deliver the ideal access-edge solution.

Additional enterprise class Layer 3-4 quality of service (QoS)featuresand 8 priority queues allow prioritization of VoIP, video and critical business applications. Finally, IGMP snooping and IGMP querier features allow businesses to deploy video surveillance, IPTV and other multicast based applications without complexity.

Powerful

In desktop switching environments, wire-speed performance with full QoS control for all 10/100 interfaces is critical. The 2 Gigabit Ethernet combo interfaces provide unprecedented flexibility, whether you are stacking between switches, attaching bandwidth-thirsty file servers, or aggregating critical data to the core of your network.

Easy-to-use

Simplify and reduce IT staff workload and mean time to repair with intuitive, GUI-based device configuration, and an industry-standard command-line interface (CLI). New 2.5 Gbps, high-speed stacking capabilities allow you to build a single IP manageable device with up to eight switches.

Outstanding Value

With their high-value price point, flexible design, and reduced maintenance requirements, NETGEAR's ProSafe 10/100 Layer 2+ Stackable Switch solutions yield a high return on investment, and are ideal for delivering highly reliable, converged voice, video, and data services over a single network infrastructure.

Work Space Friendly

The switch has a built-in thermal sensor to automatically speed up the fan to increase air flow in warm environments, and slow down the fan to reduce the noise when operating in an office environment.

 Network Protocol and Standards Compatibility

    * IEEE 802.3 10BASE-T
    * IEEE 802.3u 100BASE-TX
    * IEEE 802.3z 1000BASE-X
    * IEEE 802.3ab 1000BASE-T
    * IEEE 802.3x flow control

Layer 2 Services

    * IEEE 802.1Q static VLAN (up to 512)
    * IEEE 802.1p Class of Service (CoS)
    * IEEE 802.1D Spanning Tree Protocol
    * IEEE 802.1v protocol VLAN & port VLAN
    * IEEE 802.1w Rapid Spanning Tree Protocol
    * IEEE 802.1s Multiple Spanning Tree Protocol
    * IEEE 802.3ad link aggregation (Static, LACP)
    * IEEE 802.1x port access authentication
    * Mac-based VLAN
    * IGMP v1, v2, v3 snooping support
    * IGMP querier
    * Network storm protection, including broadcast, multicast and unicast traffic
    * Static multicast filtering
    * Ingress rate limit in 1Kbps increments
    * Protected port
    * Private group VLAN
    * Double VLAN
    * MAC filter
    * Port security

Layer 3 Services

    * VLAN routing
    * Static routing
    * Port-based routing
    * Access Control Lists - MAC, IP, TCP
    * ACLs - 224 global rules
    * DiffServ QoS (RFC 2998)
    * DNS caching
    * DHCP/BOOTP relay - primary and backup (RFC3046, option 82)
    * UDP relay

Switch Management Specifications

    * SNMP v1, v2c, v3 with multiple IP addresses
    * RFC 1157, 1901-1910, 2574, 2575
    * RFC 768 UDP
    * UDP relay
    * RFC 854-859 telnet
    * RFC 951 BOOTP
    * RFC 1027 Proxy ARP
    * RFC 1213 MIB II
    * RFC 1757 RMON groups 1,2,3, and 9
    * RFC 1215 SNMP traps
    * RFC 1493 bridge MIB
    * RFC 1643 Ethernet interface MIB
    * RFC 1534 DHCP and BOOTP interoperation
    * RFC 2030 Simple Network Time Protocol (SNTP)
    * RFC 2131, 2132 DHCP and BOOTP
    * RFC 2865 RADIUS (both switch and management access)
    * RFC 2866 RADIUS accounting
    * Private enterprise MIB
    * CPU traffic monitor
    * Port mirroring support (many-to-one)
    * SYSLOG
    * Firmware upgrade via TFTP or HTTP
    * Port description
    * TACACS+
    * LLDP/LLDP-MED
    * DHCP server
    * DHCP option 81

Single IP Address Management

    * Manage up to 48 fully managed switched
    * Feature can be used with the following models:
          o FSM726E, FSM7226RS, FSM7250RS
          o FSM7328S, FSM7352S, FSM7328PS, FSM7352PS
          o GSM7224R, GSM7248R
          o GSM7328S, GSM7328FS, GSM7352S

User Interfaces

    * Command-line interface (CLI) via console port
    * Prosafe Control Center Web-based management via embedded HTTP server protected with Secured Sockets Layer (HTTPS)
    * (SSLv3) or Transport Layer Security (TLS v1)
    * Telnet remote login (5 sessions) securable with Secure Shell (SSH v1.5, v2)

LEDs

    * Per port: Speed, link, activity
    * Per device: Power, fan status, stack ID, master, RPS

Physical Interfaces

    * 24 (FSM7226RS) or 48 (FSM7250RS) RJ-45 connectors for 10BASE-T, 100BASE-X (Auto Uplink and auto negotiate on all ports)
    * 2 1000Base-X with optional SFP connectors for fiber connection
    * 2 stacking ports at 2.5 Gbps each
    * RS-232 console port

Performance Specifications

    * Forwarding modes: Store and forward
    * Bandwidth:
          o FSM7226RS: 18.8 Gbps; 6.5 Mpps
          o FSM7250RS: 23.6 Gbps; 10.1 Mpps
    * Switch latency: Less than 80 microseconds for 64-byte frames
    * System memory: 128 MB
    * Packet buffer memory: 1 MB
    * Code storage (flash): 32 MB
    * MAC addresses size: 8K
    * Number of VLANs: 512 (1-4093 ID)
    * Number of trunks: 24
    * Number of QoS queues: 8
    * Number of static routes: 32
    * Jumbo frame support: up to 9K packet size
    * Number of multicast groups: 256

Electrical Specifications

Physical Specifications

    * FSM7226RS
          o Dimensions (w x d x h):
            440 x 205 x 43 mm
            (17.32 x 8.1 x 1.7 in)
          o Weight: 2.8 kg (6.2 lb)
          o Acoustic noise: (ANSI-S10.12) 36.6 dB
          o Heat dissipation: 51 Btu/hr
          o Mean time between failures (MTBF):
            562,110 hours (~64 years)
          o Thermal sensor
    * FSM7250RS
          o Dimensions (w x d x h):
            440 x 257 x 43 mm
            (17.32 x 10.1 x 1.7 in)
          o Weight: 3.6 kg (7.9 lb)
          o Acoustic noise: (ANSI-S10.12) 38.3 dB
          o Heat dissipation: 112 Btu/hr
          o Mean time between failures (MTBF):
            385,102 hours (~44 years)
          o Thermal sensor

Environmental Specifications

    * Operating temperature: -5° to 50° C (23° to 131° F)
    * Storage temperature: -20° to 70° C (-4° to 158° F)
    * Operating humidity: 90% maximum relative humidity, non-condensing
    * Storage humidity: 95% maximum relative humidity, non-condensing
    * Operating altitude: 10,000 ft (3,000 m) maximum
    * Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Emissions

    * CE mark, commercial
    * FCC Part 15 Class A
    * VCCI Class A
    * EN 55022 (CISPR 22), Class A
    * C-Tick

Electromagnetic Immunity

    * EN 50082-1, EN 55024

Safety

    * CE mark, commercial
    * CSA certified (CSA 22.2 #950)
    * UL listed (UL 1950)
    * CUL IEC 950
    * EN 60950
