 Phenom X4/ Phenom X3/ Athlon X2/ Athlon/ Sempron processors (socket AM2+/AM2)
This motherboard supports AMD Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 2600MT/s via HyperTransport 1.0 based system bus, and AMD Cool 'n' QuietTM Technology.
|
  Compatible with Phenom II/ Athlon X4/ Athlon X3/ Athlon X2 (AM3 CPU)
This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to2600MT/s via HyperTransport 1.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process.
|
 AMD Cool n Quiet! Technology

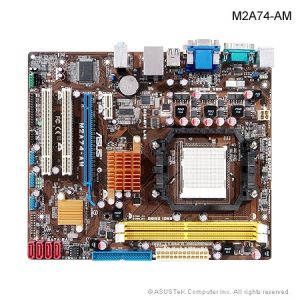

M2A74-AM supports AMD Cool n Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.
|
   Dual channel DDR2 1066
This motherboard is the first AMD platform with native DDR2 1066 support. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
*DDR2 1066 is supported by some of the AM2+/AM3 CPUs only. Refer to www.asus.com for the supported CPU models.
|
 Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 cache to satisfy the rising demand for more powerful processing capability.
|
  64-bit CPU support
64-bit computing, the technology to replace the 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
|
PCI Express Architecture
 PCI Express is the latest I/O interconnect technology that replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.
|
  DVI Interface
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D and RGB and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc.
|
|
 ASUS EPU
System Level Energy Saving
The new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 4-engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. The EPU automatically provides the most appropriate power usage for the CPU, VGA card, hard drives and CPU cooler fan - helping save power and money.
|
 Serial ATA 3Gb/s
This motherboard supports SATA hard drives based on the new SATA 3Gb/s storage specification.Allows RAID 0, RAID 1,RAID 10,and JBOD configurations for four SATA connectors.
|
 Gigbit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. |
 High Definition Audio
Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions technology that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meaning there will be no more confusion of Line-in, Line-out and Mic jacks.
|
 ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
|
 AI NET2
Diagnose LAN connection before entering OS!
AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.
|
 Max. 10 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
|
 Turbo Key
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
|
 ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
 ASUS EZ Flash2
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
 MyLogo2
Turn your favorite photos into 256-color boot logos to personalize your system.
|
 C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
|
|
GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.
|
