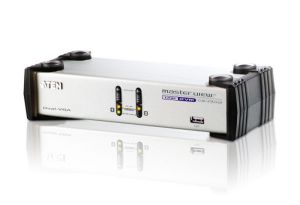

Aten CS1742 2-Port USB VGA Dual-Display/Audio KVMP Switch
CS1742 2 Port KVM Switch integrates functions of video signal dual output and
USB KVM switches. It allows a computer with dual-screen support to pair with two
VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742
provides 2 USB ports, allowing each server to share any USB peripheral device
that is connected to this HUB.
Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays
to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC
(Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits
independent PC, independent peripheral, and independent audio function,
regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and
FreeBSD
- SUN/Mac keyboard support and emulation*
- *1.PC keyboard combinations emulate SUN/Mac keyboards.
- *2.SUN/Mac keyboards only work with their own computers.

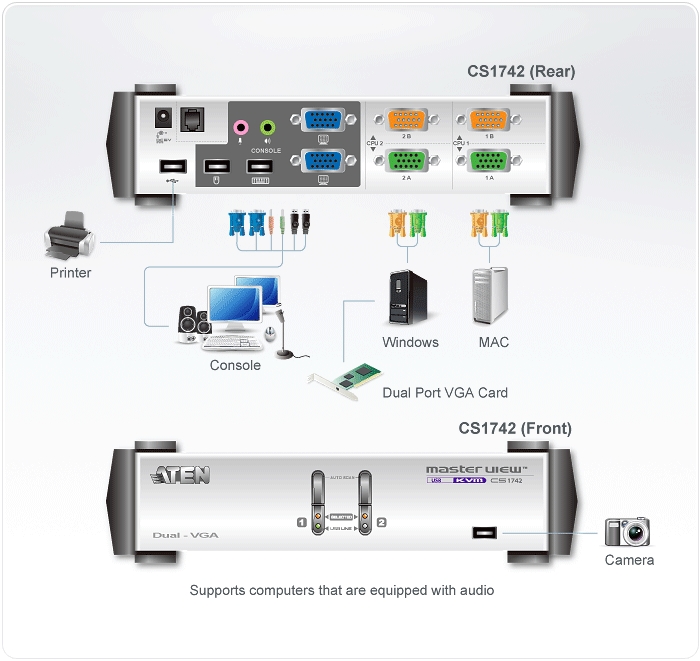

Diagram
Specifications
|
Computer Connections |
2 |
|
Port Selection |
Hotkey, Pushbutton |
|
USB Port / Audio Port Selection |
Hotkey |
|
|
|
|
Connectors |
|
|
Console Ports |
2 x USB Type A Female (White) |
|
|
2 x HDB-15 Female (Blue) |
|
|
1 x Mini Stereo Jack Female (Green) |
|
|
1 x Mini Stereo Jack Female (Pink) |
|
KVM Ports |
2 x SPHD-15 Male (Yellow) |
|
|
2 x SPHD-15 Female (Green) |
|
USB Hub |
2 x USB Type A Female (White) |
|
Firmware Upgrade |
1 x RJ-11 Female (Black) |
|
Power |
1 x DC Jack (Black) |
|
|
|
|
Switches |
|
|
Selected |
2 x Pushbutton |
|
|
|
|
LEDs |
|
|
USB Link |
2 (Green) |
|
On Line /Selected |
2 (Orange) |
|
|
|
|
Emulation |
|
|
Keyboard / Mouse |
USB |
|
|
|
|
Video |
2048 x 1536; DDC2B |
|
Scan Interval |
1-99 seconds |
|
Power Consumption |
DC5V, 1.25W |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0-50°C |
|
Storage Temperature |
-20-60°C |
|
Humidity |
0-80% RH, Non-condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.82 kg ( 1.81 lb ) |
|
Dimensions (L x W x H) |
21.00 x 8.80 x 5.55 cm |
|
|
(8.27 x 3.46 x 2.19 in.) |
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format |
|
Package Contents |
1x 2-Port USB Dual-View KVMPâ„¢ Switch |
|
|
2x Custom KVM Cable (VGA, USB; 1.8m/6ft) |
|
|
2x Custom KVM Cable (VGA, Audio; 1.8m/6ft) |
|
|
1x Firmware Upgrade Cable |
|
|
1x User
Instructions |
