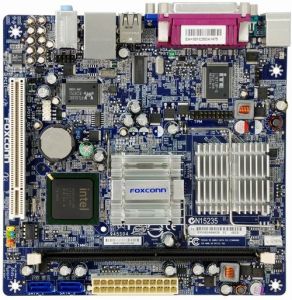

Foxconn 45CSX-V2 Motherboard
Onboard Dual-Core Atom 330 (1.6GHz), 533FSB, 945GC, ICH7, 1x DDR2-533, 1x PCI, 2x SATA-II, 1x LAN, 6Chl, VGA, Mini ITX

No Longer Available

Part Number:

118908

(?) Brand:

Foxconn Web Site

Manuf No:

45CSX-V2
45CSXV2

Shipping Weight:

1.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

45CSXV2, 45CSX-V2

Intel Atom^TMdual-core 330 processor mounted onboard

533MHz (FSB)

DDR2533 MHz x1 DIMM, Max. 2GB

1* PCI

2* SATA II

5.1 channel HDA, Realtek ALC662

10/100MLAN, Realtek RTL8100C

6USB 2.0 ports

Processor:	Intel AtomTM dual-core 330 processor mounted onboard
Chipset:	Intel 945GC + ICH7
Front Side Bus:	533 MHz (FSB)
Memory:	DDR2 533 MHz x 1 DIMM, Max. 2GB
VGA on Die:	Integrated
Expansion Slots:	1* PCI
IDE:	N/A
Serial ATA(SATA)/RAID:	2* SATA II
Audio:	5.1 channel HDA by Realtek ALC662
LAN:	10/100M LAN by Realtek RTL8100C
IEEE1394:	N/A
Back Panel I/O Ports:	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x Serial port 1 x Parallel port 1 x Audio jack supports 3 jacks 4 x USB 2.0 ports 1 x RJ45 LAN port 1 x VGA port
Internal I/O Connectors:	1 x ATX 24-pin power connector 1 x 4-pin System fan connector 1 x IrDA header 1 x TPM header 2 x Serial ATAII connectors 1 x Front panel connector 1 x Front Audio header 1 x USB 2.0 header (one header reserved) supports additional 2 ports
BIOS Features:	4MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Standards/Manageability:	PCI 2.3, USB2.0, DMI 2.5
Form Factor:	Mini-ITX (170mm x 170mm)
