HOME / Back -> zzObsolete -> Radeon PCI-Ex 4xxx Series -> HIS

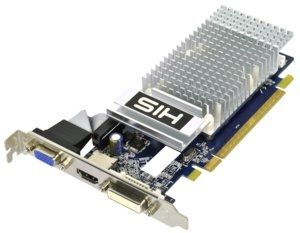

HIS Radeon HD 4350 - 512MB DDR2, 64-bit, VGA, DVI, HDMI, HDTV, HDCP, Heatsink - PCI-Ex16
  • (600MHz, 800MHz) - Low Profile Edition

IMG 1 of 1
No Longer Available
Part Number:
124495
(?) Brand:
HIS Web Site
Manuf No:
H435H512HDP
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
H435H512HDP, HIS-4350-512D2-HDMI

Product Code H435H512HDP
EAN Code 4895139001983
Cooler Silence
GPU 4350
Core Clock 600 MHz
Memory Clock 800 MHz
Memory Size 512 MB
Memory Type DDR2
Memory Interface 64 bit
Interface PCI Express x16 (PCI Express 2.0)
Card Dimension 12.1 X 18 X 2.2 cm (HxWxD)
Box Dimension 23.2 x 16.2 x 6 cm (HxWxD)
Windows 7 CompatibilityATI Premium GraphicsATI CrossfireXATI Stream TechnologyPCI Express 2.0DirectX 10.1OpenGL 2.11080pHDMIHDTV
Dual MonitorShader Model 4.1Unified Video Decoder 27.1 Channel AudioGamingVGADVINative HDMIRetail PackBumpTop - Reinvent your desktop


Overview
Product Advantage
  • NATIVE HDMI output with digital 7.1 sound channels
  • Low Profile Form Factor with interchangeable low profile and high profile brackets.

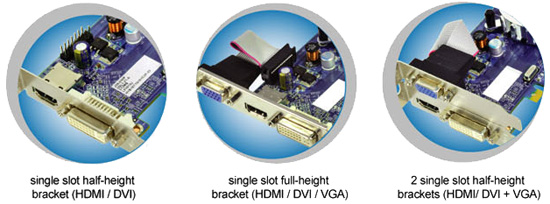

Different bracktes combination to fit in your PC case

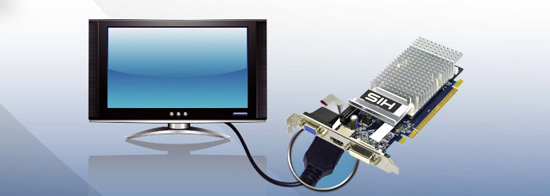

Bulit-in Native HDMI port with 7.1 surround sound support for direct HDTV connection

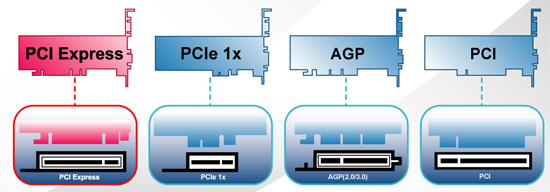

For use in motherboard with 16x connector

ATI RadeonTM HD 4300 Series Key Features

DirectX 10.1
80 stream processing units
64-bit memory interface
12x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
Dual mode ATI CrossFireXTM multi-GPU support for highly scalable performance
ATI AvivoTM HD video and display technology*
Built-in Native HDMI with 7.1 surround sound support

Unified Video Decoder 2 (UVD 2) for Blu-rayTMand HD Video

CABLE/ADAPTOR BUNDLED

* Low Profile Brackets


Specifications

Model Name HIS HD 4350 Silence (Full HD 1080p) Native HDMI 512MB (64bit) DDR2 Dual Link-DVI / VGA / HDMI (HDCP) PCIe (RoHS)
Chipset Radeon HD 4300 PCIe Series
ASIC RadeonTM HD 4300 GPU
Pixel Pipelines 80 stream processing units* (Unified)
Vertex Engines 80 stream processing units* (Unified)
Manu. Process (Micron) 55nm
Transistor 242 million
Memory Size (MB) 256
Memory Type DDR2
RAMDAC (MHz) 400
Engine CLK (MHz) 600
Memory CLK (MHz) 800
Memory Interface (bit) 64
Power Supply Requirement  300 Watt or greater power supply (350 Watt for ATI CrossFireX technology in dual mode) is recommended
Max. Resolution 1920x1200 (single-link DVI) or 2560x1600 (dual-link DVI)
Bus Interface PCIe
VGA Yes
2nd VGA No
DVI Yes
2nd DVI No
TV-out No
HDMI Yes
Video-in No
TV Tuner No
FM Tuner No
ATI Radeon HD 4350 System Requirements
  • PCIe based PC is required with one PCIx16 lane graphics slot available on the motherboard
  • 300 Watt or greater power supply (350 Watt for ATI CrossFireX technology in dual mode) is recommended
  • Certified power supplies are recommended. Refer to for a list of Certified products
  • 1GB of system memory recommended
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • For Microsoft DirectX 10.1 support, Windows Vista Service Pack 1 is required

For more information, please visit the following link:

https://ati.amd.com/products/Radeonhd4300/specs.html

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (HIS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
