AFACO-120P0-GBA01 | Arctic Cooling F12 PWM Fan - 120x120x25, Fluid Dynamic Bearing, 300-1350rpm

Melbourne - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Cooling -> Fans - 120mm -> Arctic Cooling

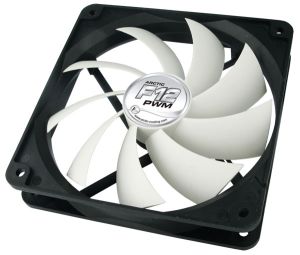

Arctic Cooling F12 PWM Fan - 120x120x25, Fluid Dynamic Bearing, 300-1350rpm, 57CFM, 24.4dBA - White/Black

No Longer Available

Part Number:

125147

(?) Brand:

Arctic Cooling

Manuf No:

AFACO-120P0-GBA01
AFACO120P0GBA01

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

4/9/2009

Add to wishlist

Write a Review

Details Reviews Files Images & Video

All stock codes associated to this product

AFACO120P0GBA01, AFACO-120P0-GBA01, ACF12PWM, AC-F12-PWM

High Performance Case Fans with PWM Sharing Technology

The ARCTIC F PWM fans outerperform other 80mm/92mm/120mm fans in the market. The patented PWM Sharing Technology (PST) regulates the speed up to 5 fans via BIOS. With efficient central cooling, the ARCTIC F PWM fans offer excellent cooling and noise control performance for the system.

Main features

Patented PWM Sharing Technology (PST)
Extremely quiet
High air flow and static pressure
Low noise impeller
Fluid dynamic bearing extends service
life

How does PST lower the temperature of the entire case?

Featuring PWM function, the ARCTIC F PWM fans run at the most necessary speed to deliver maximum cooling capacity at the lowest noise level possible. On top of that, thanks to the patented innovative PWM Sharing Technology (PST), up to 5 fans (including CPU fans) can be connected to the ARCTIC F PWM fan to share the PWM signal. The speed of all the fans in this PST system is now centrally controlled by a single PWM signal via BIOS.

As a result, when the system load increases, fan speed of all fans connected in the PST system will be increased in order to lower the case temperature. Likewise, when the load is low, these fans will operate at a relatively low speed for sufficient cooling.

In conclusion, the advantages of having PST are:

(1)	Control the speed of different fans with only one PWM signal from the mainboard
(2)	Case ventilation can be achieved in a quiet and efficient way. More fans run slower at low load, which deliver sufficient cooling at a much quieter operation than before
(3)	Better energy saving as fans are not always at full load

Specifications

PST:		PWM amplifier integrated on motor circuit
		4 pin plug for receiving power and PWM signal from motherboard
		4 pin socket for CPU cooler or second fan
		3 pin plug to send fan RPM signal to motherboard
Dimensions:		120 L x 120 W x 25 H mm
Rated Fan Speed:		300 - 1350 RPM (controlled by PWM)
Air Flow:		57 CFM / 96.8 m³/h
Noise Level:		0.5 Sone
Weight:		108 g
Bearing:		Fluid Dynamic Bearing
Warranty:		6 Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 6-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: James
Visitors Age: 33
Visitors Rating:

Excellent PWM Fan

Silent at low RPMs, blows plenty of air at 1350 and isnt too loud at that speed. The PWM Sharing Technology is great - I have four of these in series for my CPU: Intake, two on the cooler and exhaust, all in a row. Works beautifully. At the price, extremely good value product.
