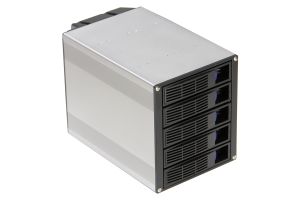

Norco SS-500 5-Bay SATA/SAS Hot Swap Rack Module
  • Convert 3x5.25" Drive Bays to 5x Hot Swap 3.5" SATA/SAS HDD Bays

IMG 1 of 4
No Longer Available
Part Number:
125634
(?) Brand:
Norco Web Site
Manuf No:
SS-500
SS500
Shipping Weight:
3.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/9/2009
Details Reviews Files Images & Video
All stock codes associated to this product
SS500, SS-500
This product is no longer available, try the TGC alternative.

Features:

  • 5 Bay SATA(I, II or III)/SAS 6G Hot Swap Module
  • Steel material, RoHS compliance;
  • Electromagnetism shield design
  • Support two 4pin power connectors
  • Ball bearing fan with air duct
  • Patent balance handle -- No skew in/out
  • LED indicators
  • Support hot swap
  • Support all operating systems
  • Supports RAID 0, 1, 5 functions (RAID card required)



Specifications:

Drive Bay:Turn 3 x 5.25" drive bay to 5 x 3.25" hot swappable hard drive bay
Interface: SATA to SATA; SAS to SAS
Fan Sensor: Fan failure sensor
Alarm: Overheating alarm
Cooling System:One 80mm ball bearing fan with air duct provide excellent cooling air flow
RAID:Supports RAID 0, 1, 5 functions (RAID card required)
Power Connector: 4 pin molex power connector x 2
Data Connector: SATA (I, II or III)/SAS 6G data port x 5
Dimensions(L x W x H):8.5 x 5.75 x 5 inch
Weight: 5 lbs

No additional files, specification sheets, guides or documentation found for product.

Full manufacturers warranty details are available at the manufacturers (Norco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: Gavin|33
Visitors Age: 33
Visitors Rating:

SS-500 5-Bay SATA/SAS Hot Swap Rack ModuleConvert 3x5.25

I have three of these in a system to create a RAID array, I purchased them all one at a time, the first two were sent back faulty with bays not working. Now a few months after I'm getting back into the RAID creation only to find the replacement unit is also faulty. The manufacturing on these is abysmal! Techbuy has replaced every one I have sent back, hopefully they will accept this one back too. I will try one last time with these. DO NOT BUY THIS BRAND!!!!!! I am a qualified computer systems engineer. All bays have been tested with multiple brands of HDD, Breakout cables and PSU's.

Reviewd By: Christopher
Visitors Age: 22
Visitors Rating:

Cheap and Cheerful.

First one arrived with a 4/5 working ports. The port was providing me AHCI timeouts on FreeNAS. Also intermittently showed up on Fedora. RMAd and to my delight received a new one in 5 business days. First one I received had the old version with a flat backplane and stacked SATA ports. Second one I received had a recessed backplane (more room in case) and SATA ports in a line. To my knowledge this is the latest version. Both units run a ridiculously loud high volume fan. Unnecessary for my application (5x2TB greens) but useful for someone running something a bit faster(hotter?). Will end up replacing them with something a lot quieter. For the price it is a great entry level hotswap module and apart from the fan and the first unit there are no issues. Also very sturdy!
