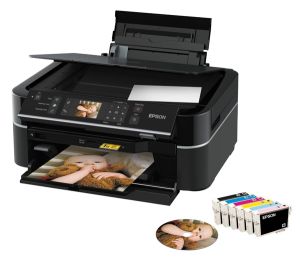

Epson TX650 Colour Inkjet Multifunction Centre (A4) - Print/Scan/Copy

Printer Specifications
PRINTER TYPE
EPSON STYLUS  PHOTO TX650	C11CA51401
PRINTING METHOD	On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION	90 nozzles colour (Black, Yellow, Light Magenta, Light Cyan, Cyan, Magenta)
PRINT SPEED
BLACK TEXT (MEMO) A4 (Draft)^	37ppm*1
COLOUR TEXT (MEMO) A4 (Draft)^	38ppm*2
Photo 4" x 6" (10 x 15cm) (Draft)^	Approx. 12 sec *3+

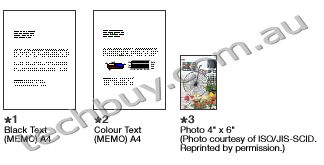

Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications. *"Second" rating refers to the time taken to print one page. The computer environment we test under is as follows: CPU: Pentium 4, 2.4GHz; RAM: 512MB; OS: Windows XP professional; Interface/Connectivity: USB2.0 HighSpeed; SOFTWARE: Word XP/PhotoShop7.0; PAPER: Epson Premium Glossy Photo Paper or Plain Paper + When printed on Epson Premium Glossy Photo Paper
RESOLUTION
5760 x 1440 Optimised dpi with 1.5pl droplets	5760 Optimised dpi using Resolution Performance Management (RPM) Technology
PRODUCT DIMENSIONS	450mm (W) x 386mm (D) x 195mm (H)
WEIGHT	8.4kg
PAPER HANDLING
PAPER SIZES	A4, Letter, Legal, 8x10", 5x7", 4x6", 3.5x5", 5x8", A6, A5, B5, Half Letter, Envelopes: No10, DL, C6
PAPER HOLD CAPACITY	120 sheets, A4 Plain paper
*True BorderFree printing is available for the following media sizes: 4" x 6", 5" x 7" and A4. Media types recommended : Premium Glossy Photo paper A4, 4" x 6" and 5" x 7", Matte Paper - Heavyweight. BorderFree prints are media dependent.
Scanner
SCANNER TYPE	A4 Flatbed colour image scanner
SENSOR TYPE	CIS
DOCUMENT SIZE	Up to A4
PIXEL DEPTH	Input 48bits (16bits/colour) / output 24bits (8bits/colour)
SCANNING RESOLUTION	1200 x 2400 dpi
SCAN SPEED	A4 1200dpi 10mSec/line (mono) A4 1200dpi 28mSec/line (colour)
Copy Function
COPY SPEED+#
Speed Black A4	37cpm (mono, draft mode) 38cpm (colour, draft mode)
COPY FEATURES
COPY FEATURES	Auto Fit Function 25~400% reduction / enlargement
COPY MODES	Standard copy mode/ BorderFree  2-up Copy Mode/CD Copy
General
OPERATING SYSTEMS
PRINTER DRIVERS*	Windows  2000/XP/XP x64/Vista, Mac OS 10.3.9 or later with USB*
* Drivers if available are downloadable from Tech Epson
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE	AC 220 ~ 240V
RATED FREQUENCY	50 ~ 60Hz
	Approx. 18W Standalone copying (ISO/IEC 24712) Letter Pattern
POWER CONSUMPTION	Copying/printing : 15W	Sleep mode : 1.5W Power OFF : 0.3W
NOISE LEVEL
NOISE LEVEL#	5.1B(A), 36dB(A)>
INTERFACES
LCD SCREEN	2.5"
CARD SLOTS	CF Type II/Memory Stick, Memory Stick PRO/SD/MMC/xD-Picture Card
SUPPORTED MEMORY CARDS	CompactFlash / Memory Stick / Memory Stick PRO / Memory Stick Duo* / Memory Stick PRO Duo* / Memory Stick Micro* / MagicGate Memory Stick / MagicGate Memory Stick Duo* / Microdrive / SDHC Memory Card / SD Memory Card / MultiMediaCard / miniSDHC Memory Card* / miniSD card* / micro SDHC card* / micro SD card* / xD-Picture Card / xD Picture Card Type M / xD Picture Card Type H * requires adapter
CONNECTIVITY	HiSpeed USB Compatible with the USB 2.0 Specification (cable included)
PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY)
SOFTWARE TOOLS*	Epson File Manager Epson Scan Assistant Epson Attach to Email Epson Copy Utility Epson Easy Photo Print Epson Web-To-Page Epson Print CD Online Guide
WARRANTY
	12 months return to base	Standard
	Optional Additional 2 Year Warranty	3YWTX650
	Epson Warranty
OPTIONS
Bluetooth adaptor	C12C824384
LIGHTFASTNESS
LIGHTFASTNESS#	Up to 200 years album storage
# Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops.
INK CARTRIDGES
STANDARD INK CARTRIDGES	82N Black, 82N Cyan, 82N Magenta, 82N Yellow, 82N Light Cyan, 82N Light Magenta
HIGH CAPACITY INK CARTRIDGES	81N Black, 81N Cyan, 81N Magenta, 81N Yellow, 81N Light Cyan, 81N Light Magenta
STANDARD INK CARTRIDGE YIELDS^^	Black 330 pages, Colour Composite 525 pages
HIGH CAPACITY INK CARTRIDGE YIELDS^^	Black 540 pages, Colour Composite 860 pages
^ Print speed (PPM) when printed on A4 plain paper in the fastest mode. 10x15cm photo print speed when printed on Epson Premium Glossy Photo Paper borderless in draft mode. Print speed may vary depending on system configuration, print mode, document complexity, software, type of paper used and connectivity. Print speed does not include processing time on host computer. + Copy speed when printed on plain paper in the fastest mode. Copy speed may vary depending on copy mode, document complexity, type of paper used and number of copies. >> According to ISO7779 Pattern with Premium Glossy Photo Paper / Photo RPM mode. ^^ According to ISO/IEC24711 and 24712 test suite. Click here for details on ISO testing. (PDF)

PAPER & INK

This printer ships with a full set of ink cartridges and some ink from the first set is used for priming the printer. Yields will vary considerably based on images printed, print settings, paper type, frequency of use and ambient temperature.

When an ink cartridge needs replacing, you cannot continue copying or printing without replacing the relevant cartridge, even if other cartridges dont need replacing.

You should leave a cartridge needing replacement installed in the printer until you have obtained a replacement. Doing otherwise may cause ink remaining in the print head nozzles to dry out and affect printer operation.

To ensure ongoing print quality and trouble-free operation, a variable amount of ink will be present in a cartridge that is low on ink after the Replace Cartridge indicator comes on.

This printer will use a quantity of ink from each cartridge for print-head cleaning and maintenance and will use ink from all cartridges for both black and colour printing.

Warning to Epson printer owners. Many well known third party companies claim their inkjet printing papers are compatible with all Epson inkjet printers. Epson has reports from many customers who have used third party paper and have been very disappointed with the results. When the same customers have changed to genuine Epson paper, they have been amazed and pleased with the colour and quality of their prints. Epson recommends that you do not use any non genuine printing papers if you want to get the best results from your Epson printer. Epson printers are very carefully tuned to ensure Epson inks and Epson's patented MicroPiezo  printhead produce the best quality prints using carefully selected Epson paper.

All other brands of printing papers are not wholly compatible with the printer.

Link to more information and independent studies on media durability by Wilhelm Research

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

• the very best of print quality every print, every time
• and trouble-free, peace-of-mind printing every print, every time

The Epson Intellidge Ink System brings maximum benefits, maximum ink usage and the interchange of Epson cartridges suitable for this model. The Epson Intellidge Ink System gives you easy-to-see, readily available information about all your ink levels.

This printer is designed to be used only with Genuine Epson Intellidge ink cartridges
Intellidge Ink cartridges are not designed for refill.

It's now easier for you to identify Genuine Epson cartridges.
Epson is gradually replacing the current hologram with the new anti-counterfeit Color Shifting Label.

As an International ENERGY STAR Partner, Epson has determined that this product meets the International ENERGY STAR guidelines for energy efficiency.

Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
