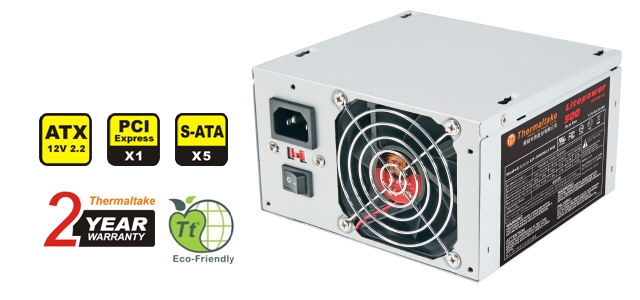

Thermaltake Litepower 500WTT Power Supply

Intel ATX 12V 2.2 Compatible.

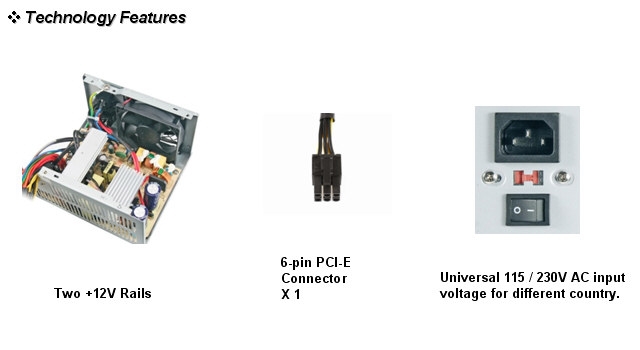

Dual +12V output circuit provides outstanding steady output for system.
Selectable115 / 230V AC input voltage for different country.
More than 65% efficiency at typical load operation.
High reliability: MTBF>100,000 hours.
Protections: Over Current, Over Voltage and short circuit protection.
Safety / EMI Approvals: UL/CUL, FCC, BSMI and GOST certified.
Dimension (W/H/D): 150mm x 86mm x 140mm.

P/N W0316
Type Intel ATX 12V 2.2
Output Capacity 400W
Peak Output Capacity 500W
Color Silver
Dimension ( W / H / D ) 150mm x 84mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum)@70% load,230Vac/50Hz
Input current 550W: [email protected], [email protected]
Input Frequency Range 47Hz ~ 63 Hz
Input Voltage 700W: [email protected], [email protected]
600W: [email protected], [email protected]
Operating Environment 10 ? to + 25 ?
Operating Humidity 20% to 80%,non-condensing
Storage Temperature -40 ? to +70 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 200010%R.P.M.
Efficiency 70% at normal AC input voltage and frequency
MTBF 100,000 hrs minimum
Safety Approval UL, TUV, CE, FCC,BSMI,GOST

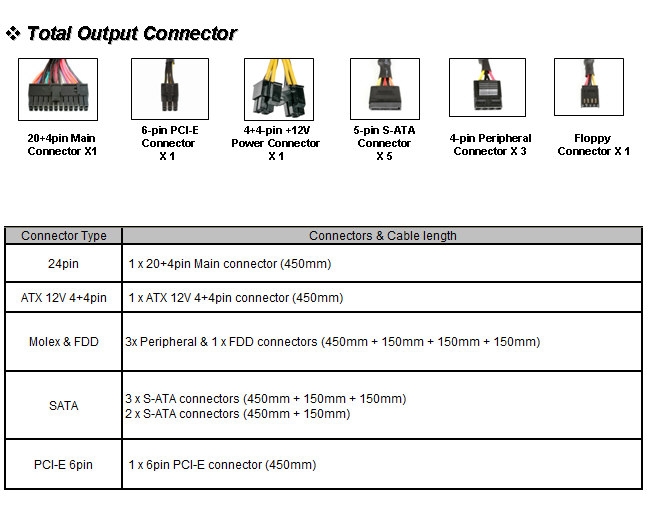

PCI-E adaptor cable 6Pin x 1
Warranty 2 years
