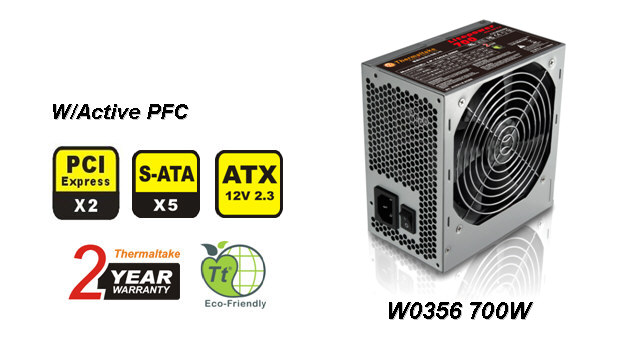

ThermalTake 700W Litepower - ATX 12V v2.3, 120mm Fan - OEM
  • 5xSATA, 1xPCI-E 6+2-Pin, 1xPCI-E 6-Pin

IMG 1 of 1
No Longer Available
Part Number:
126243
(?) Brand:
ThermalTake Web Site
Manuf No:
W0356
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
W0356, SPTTW0356, SP-TTW0356

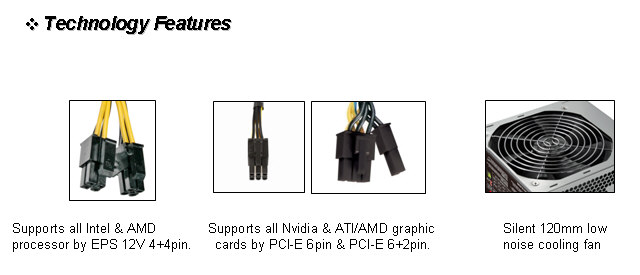

  • Intel ATX 12V 2.3 enables most reliable and robust power delivery.
  • Intel & AMD CPU compliant.
  • Nvidia & ATI/AMD graphic card compatible.
  • Universal Input & Active PFC:100-240VAC input with automatic adjustment and active PFC for global usage.
  • Dedicated dual +12V rails ensures efficient power delivery to critical components within the PC.
  • High reliability: MTBF>100,000 hours.
  • Protections: Over Current, Over Voltage and Short Circuit Protection.
  • Safety / EMI Approvals: UL, TUV, FCC, CE, BSMI and GOST certified.
  • Dimension (W/H/D): 150mm x 86mm x 140mm.


GENERAL INFO
Model
W0356 / W0355
Type
Intel ATX 12V 2.3 & EPS 2.91

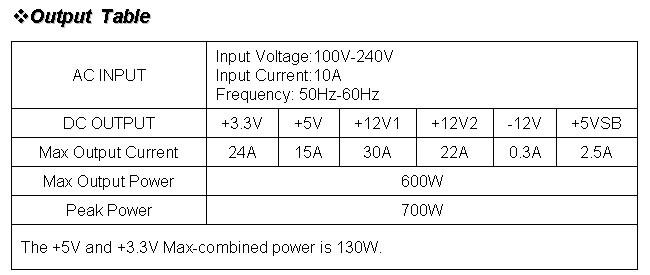

Max. Output Capacity
600W
Peak Output Capacity
700W
Color
Silver
Dimension (W/H/D)
150mm x 86mm x 140mm
PFC
Active PFC
Power Good Signal
100-500 msec
Hold-up Time
16msec (minimum)@70% load,230Vac/50Hz
AC INPUT
Input Current
 700W: 10A@115Vac, 5A@230Vac
600W: 8A@115Vac, 5A@230Vac
Input Frequency Range
50 Hz ~ 60 Hz
Input Voltage
100Vac- 240Vac
ENVIRONMENTAL
Operating Temperature
10  to +25
Operating Humidity
20% to 85%,non-condensing
Storage Temperature
-40  to +70
Storage Humidity
5% to 95%, non-condensing
Cooling System
2000R.P.M.
MISCELLANEOUS
Efficiency
65% (min.) at normal AC input voltage and frequency
MTBF
100,000 hrs minimum
Safety Approval
UL, TUV, FCC, CE, BSMI and GOST certified

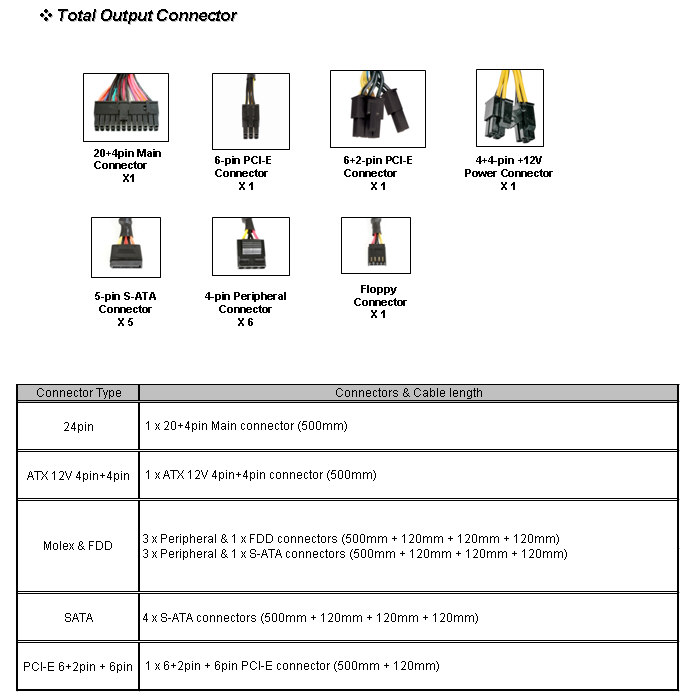

PCI-E CONNECTOR
6Pin
 x 1
6+2Pin
x 1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
