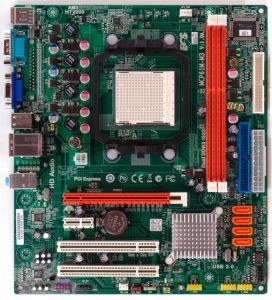

ECS MCP61M-M3 supports the new socket AM3 for AMD Phenom II processor, and features the NVIDIA MCP61P integrated chipset, which deliveries the outstanding performance to support Dual-Channel DDR3 memory up to DDR3 1333. MCP61M-M3 is the best choice for family and commercial use, it delivers a high performance and professional for AMD platform solution.

Features

Certified For Windows Vista
The latest generation Microsoft O.S., delivers better personal productivity and digital entertainment on your PC through its improved reliability, security, and performance.
AMD Phenom II
With the state-of-the-art technology, AMDs next generation processor, AMD Phenom II, enables the power of platform solutions for gaming, multitasking, and digital entertainment with outstanding performance and energy efficiency
Socket AM3
The latest socket AM3 supports AMDs AM3 processors which have featured the integrated memory controller for DDR3 memory that provides much higher bandwidth to enhance the overall system performance.
eJIFFY
ECS eJIFFY is a Linux based interface for a fast boot application which is compressed in a CD to install on the hard drive.Within 8 seconds after the computer boots up, eJIFFY is ready to provide users the total enjoyment for web browsing, photo reviewing and on-line chat. Instead of waiting for the regular OS to start up, eJIFFY serves a convenient center to have quick fun or a glance at the hot news in todays fast pace world where nothing can be too quick.
HT 2000
AMD64 technology provides simultaneous support for 32-bit and 64-bit computing with 2000MT/s system bus HyperTransport technology.
Dual DDR3 1333
Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance at lower power.
SATAII 3.0Gb/s
Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.
ATA133
Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s
10/100 LAN
Provides 10/100 Mbps solution to your network or broadhand connection without having to buy an extra LAN card.
6 Channel High Definition Audio
Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
USB 2.0
USB2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.
PCI EXPRESS x16
Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance
ROHS
Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.

Specifications
  CPU
Socket AM3 socket for AMD Phenom II processors
High-performance Hyper Transport CPU interface.
Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.

  CHIPSET
NVIDIA MCP61P Single Chipset
NVIDIA GeForce 6100/nForce 430

  MEMORY
Dual-channel DDR3 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 8 GB*
Support DDR3 1333/1066/800 SDRAM
*(Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB)

  EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

  STORAGE
Support by NVIDIA GeForce 6100
4 x Serial ATAII 3.0Gb/s devices
2 x Ultra DMA 100/66/33 devices

  AUDIO
VIA  VT1705 6-channel audio CODEC
Compliant with HD audio specification

  LAN
Realtek 8102EL-GR 10/100 LAN

  REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
1 x D-sub(VGA)
1 x Serial port (COM1)
2 x USB ports

  INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Connector
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x Front panel audio header
1 x SPDIF out header
1 x IR header
1 x IDE connector
1 x CD in header
4 x Serial ATA connectors
1 x SPEAK header
1 x FDD connector
1 x Clear CMOS header
3 x USB 2.0 headers support additional 6 USB ports
1 x Case Open header

  SYSTEM BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI & DMI

  FORM FACTOR
MATX Size, 244mm*214mm
