• Powered by Radeon HD 4650 GPU
• 320 stream processing units
• DirectX 10.1
• 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
• Dual mode ATI CrossFireX^TM multi-GPU support for highly scalable performance (Software Crossfire)
• PCI Express 2.0 support

CHIPSET FEATURES

• 320 stream processing units
• 128-bit memory interface
• 24x custom filter anti-aliasing (CFAA) and high performance anisotropic filtering
• PCI Express 2.0 support
• Dual mode ATI CrossFireX^TM multi-GPU support for highly scalable performance
• PCI Express 2.0 support
• High-speed 128-bit HDR (High Dynamic Range) rendering
• ATI Avivo^TM HD video and display technology
• Built-in Native HDMI with 7.1 surround sound support
• Support for the ATI Radeon^TM DVI to HDMI adapter
•
• Dynamic geometry acceleration
• Game physics processing capability

HIS PRODUCTS ADVANTAGE

• HIS delivers Faster, Cooler, Quieter plus the best quality product!
• Professional customer service and technical support

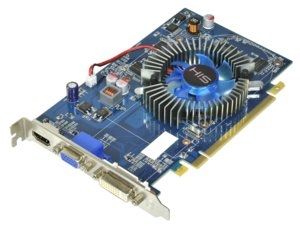

Model Name	HIS HD 4650 Fan (Full HD 1080p) Native HDMI 1GB (128bit) 800MHz DDR2 Dual Link-DVI / VGA / HDMI (HDCP) PCIe (RoHS)
Chipset	Radeon HD 4600 PCIe Series
ASIC	Radeon HD 4600 GPU
Pixel Pipelines	320 stream processing units* (Unified)
Vertex Engines	320 stream processing units* (Unified)
Manu. Process (Micron)	55nm
Transistor	514 million
Memory Size (MB)	1GB
Memory Type	DDR2
RAMDAC (MHz)	400
Engine CLK (MHz)	600
Memory CLK (MHz)	800
Memory Interface (bit)	128
Power Supply Requirement	400 Watt or greater power supply (550 Watt for ATI CrossFireX technology in dual mode) is recommended
Max. Resolution	1920x1200 (single-link DVI) or 2560x1600 (dual-link DVI)
Bus Interface	PCI Express x16 (PCI Express 2.0)
VGA	No
2nd VGA	Yes
DVI	Yes
2nd DVI	Yes
TV-out	No
HDMI	Yes
Video-in	No
TV Tuner	No
FM Tuner	No

ATI Radeon HD 4600 System Requirements

• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
• 400 Watt or greater power supply (550 Watt for ATI CrossFireX technology in dual mode) is recommended
• Certified power supplies are recommended. Refer to https://ati.amd.com/certifiedPSU for a list of Certified products
• 1GB of system memory recommended
• Installation software requires CD-ROM drive
• DVD playback requires DVD drive
• Blu-ray playback requires Blu-ray drive and full 1080p display requires a 1080p-capable monitor
• To enable dual mode ATI CrossFireX technology, a second ATI Radeon HD 4600 Series graphics card, an ATI CrossFireX Ready motherboard is required. Enable Software Crossfire in ATI Catalyst.

  • Software CrossFire is only available when two graphics accelerators from the same family are plugged into a CrossFire compatible motherboard with no hardware interconnect between the two graphics accelerators.
