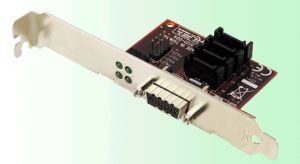

Addonics Multilane Bridge for Host Controller - SCSI-I to 4xSATA

IMG 1 of 2
No Longer Available
Part Number:
127480
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
2/10/2009
Details Files Images & Video
All stock codes associated to this product
, AD4SAMLPCI, AD4SAML-PCI

Implementing the reliable Infiniband cabling in external SATA storage system is easy and simple using the Addonics family of Multilane SATA converters. The Multilane bridge for the SATA controller easily adds a multilane connector to any desktop system, server or equipment via a PCI mounting bracket. With this bridge, up to 4 internal SATA/SATA II ports can be set up for external SATA connection.

The Multilane bridge for the SATA storage is designed to mount easily into Addonics Storage Tower or any multi-bay SCSI drive enclosures via the standard SCSI I connector opening. This bridge also supports connecting up to 4 SATA storage devices to a single Multilane connector.

Product features

Multilane bridge for SATA controller (ADSAML-PCI)

  • Converts up to 4 internal SATA ports to external 1 multilane connector
  • Mounts on a PCI slot opening of a standard height desktop or low profile PC
  • Drive access LEDs shows drive activity
  • The ADSAML-PCI functions as a bridge board to convert internal SATA ports into a single multilane connection. To convert SATA hard drives into the multilane connection, use the Multilane bridge for SATA storage (ADSAML) below.

Specifications:

  • Support SATA I and SATA II
  • 4X Multilane connector with thumb screw support
  • Fully compliant with SFF 8470 Specification
  • Cross-Over Pinouts
  • Dimension:
    Model
    PCB
    mounting bracket
    AD4SAML-PCI 64 x 45 mm
    (2.54 x 1.76 in)     		Stand height or low profile mounting bracket
  • 1 year warranty

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
