Addonics ADN1GPX1 Gigabit Network Adapter - 1-Port 10/100/1000, Low Profile - PCI-Ex1

No Longer Available

Part Number:

127762

(?) Brand:

Addonics Web Site

Manuf No:

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

8/10/2009

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

, ADN1GPX

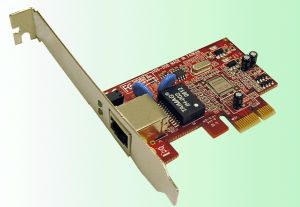

The Gigabit Ethernet PCI-Express Controller instantly adds high speed 1 Gigabit network connection to any computer via a PCI-Express slot. This PCI-Express controller is fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet) networking.

Product Features

Add 1 Giga bit ethernet port to any Desktop system via PCI-Express slot
Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
Installs into both standard height or low profile systems.
LEDs indicate for various network activities
Drivers for Windows 9x, Windows 2000, Windows 2003, Windows XP, Windows XP & Server 2003 64-bit, Vista

Specifications

Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
Installs into both standard height or low profile systems.
Compliant with PCI Express Specification, revision 1.0a
1-lane 2.5Gbps PCI Express host interface
Low Profile PCI Form Factor
Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)
RJ-45 Port offer high speed transmission over CAT 5 UTP cable
LEDs indicate for various network activities
Auto-Negotiation with Next page capability
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support
Supports Full Duplex flow control (IEEE 802.3x)
Supports IEEE 802.1Q VLAN tagging
8K Transmit FIFO and 64K Receive FIFO support
Temperature: Operating 0 to 70 degree C.
Storage: -25 to 90 degree C.
Humidity: Operating 20% to 80%
Non Operating 15% to 90%
Drivers for Windows 9x, Windows 2000, Windows 2003, Windows XP, Windows XP & Server 2003 64-bit, Vista
Dimension (W x D x H) - 80 mm x 14 mm x 51 mm
Weight - 40 grams

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
