IMG 1 of 1
No Longer Available

Part Number:
127905
(?) Brand:
Manuf No:
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
, RCHD256ES
Ruby Cipher Drive Enclosure

RCSACS256
Ruby 256-bit Cipher key
Pair of Saturn Cipher key 64-bit
AAENKEY256-2
(256-bit version)
Ruby Cipher Drive Cradle

RSABYB
Power Adapter

AAPAC5V
eSATA - eSATA data cable 6 ft. click for large image
AAESATA200C
SATA Data Cable
click for large image
AASAIDC18I
User Guide

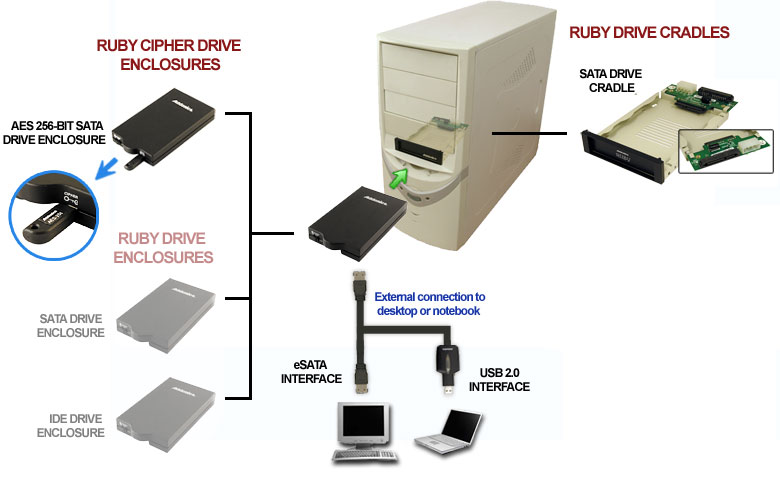

The Ruby Cipher Combo Hard Drive (RCCHD) features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Ruby Cipher enclosure handles all the encryption and decryption on the fly with no detectable performance degradation on data transfer. Using native eSATA interface, the RCCHD supports the highest performance possible today through an externally connected hard drive enclosure.

The RCCHD is probably the most versatile storage solution in the market. This kit comes with all the necessary component to allow any 2.5" SATA hard drive to be used as a drive cartridge and as an external high performance eSATA hard drive. Constructed in heavy gauge aluminum with precision finish for smooth operation, the RCCHD is built to last while at the same time providing excellent heat dissipation for the hard drive. Comes built in with the Addonics SATA direct bridge interface, the Ruby Cipher Drive enclosure allows the SATA hard drive to appear as a direct connection to the host both in eSATA mode or SATA mode while at the same time isolating the SATA hard drive power and data connectors from the wears and tears incurred in some of the removable SATA hard drive system. The shock absorption technology in the drive enclosure together with a rugged annodized housing also provides strong protection to the hard drive against drop and vibration.

When used as a drive cartridge, the hard drive can be swapped in and out of your computer without restarting your system. Instead of a slow tape cartridge, you enjoy the fast performance of the SATA hard drive. Once the OS detects the presence of the Ruby Cipher Drive enclosure (cartridge), it appears as an additional hard drive to the system. There is no driver to install or special software required to do data backup or restoration. Data is stored uncompressed in its own native file format and can be accessed readily by any application program. When used as an external hard drive via eSATA connection to a computer, the hard drive performs at the full speed and can achieve data transfer up to 3 times the speed of the standard USB or Firewire interfaces.


Product features

Encryption features (for Ruby Cipher only)

  • Full disk encryption via a hardware-based NIST & CSE certified cryptographic AES engine
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key , just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Ruby Cipher enclosure prior to turning on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
  • Platform independency - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy systems.

Drive Enclosure features

  • Stylish and rugged black anodized aluminum
  • Compact size - fits inside a pocket
  • Light weight
  • Shock proof - up to 3 feet drop damage protection for the hard drive
  • Compatible with any 2.5" SATA 1.5Gbps or SATA 3.0Gbps hard drive with height of 10 mm or less
  • Compatible with 2.5" SATA SSD or Addonics SATA CF hard disk adapter (ADSAHDCF)
  • eSATA connector for external eSATA connection
  • Optional USB 2.0 to eSATA Adapter to connect through USB 2.0 connection
  • Regular SATA connector for use as an internal hot-swap removable hard drive in a 5 1/4" drive bay with optional Ruby Cipher Drive Cradle
  • Hard drive connectors are isolated by a SATA direct bridge from wear and tear in removable drive application
  • Support large hard drive beyond 137G with single partition.
  • No interface cabling between drive and enclosure for reliable connection.
  • LED for both power and drive access
  • OS support in external hard drive mode
    • eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Mac, Linux and Solaris
    • USB - Windows 98SE, Me, 2000, XP, Vista, Mac, Linux and Solaris

Drive Cradle features

  • Mount inside any standard 3 1/2" drive bay
  • Direct SATA interface
  • 4-pin Molex and 15-pin SATA power connector
  • OS support in internal hard drive model
      SATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Mac, Linux and Solaris
    • USB - Windows 98SE, Me, 2000, XP, Vista, Mac, Linux and Solaris

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
