DTS CONNECT & Dolby Digital Live audio
ENABLING DIGITAL ENTERTAINMENT |
|
|
Exceptional audio quality, with 110dB SNR, DTS CONNECT and Dolby Digital Live certification guarantees the highest quality fidelity for games and movies. |
 |
|
| |

|
|
What is Dolby Digital Live?
Converts PC audio to a Dolby Digital format for a dramatic, real-time audio experience for game play and simple (one plug) connection to other home theater devices
How does Dolby Digital Live benefit the customer?
Easy networking: enables a single digital connection to other devices.
Realistic, cinematic gaming with the gamer in the center of the action.
|
 |
|
|
DTS CONNECT
ENABLING DIGITAL ENTERTAINMENT |
|
|
DTS Connect includes DTS Neo:PC and DTS Interactive to bring new sound capabilities to the PC.
DTS Neo:PC converts stereo sources into 7.1 channel sound
DTS Interactive enables the user to re-encode multichannel sources into 5.1 channel DTS Digital Surround for playback through a home entertainment system. |
|
Listen to Stereo Movies and Music in Surround Sound
What is DTS Neo:PC
DTS Neo:PC expands conventional stereo sources (CD, MP3, WMA, even Internet FM radio) into as many as 7.1 channels of surround sound.

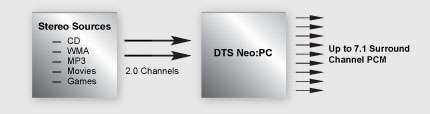

Virtually any stereo sound source connected to or stored on the PC can be expanded as shown in the following diagram:
|
| |
What is DTS Interactive?
DTS Interactive encodes any 5.1 channel audio source into full DTS Digital Surround and links a PC to a DTS capable home entertainment system.

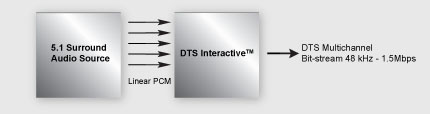

DTS Interactive connects a PC with a home entertainment system with a single digital cable, making setup simple. The diagram below illustrates the DTS Interactive encoding process.  |
|
|
Dual Digital Audio
ENABLING DIGITAL ENTERTAINMENT |
|
|
Digital Fibre/Optical and Coaxical S/PDIF outputs provide the highest quality sound output, and more flexibility for connecting audio systems. Dual Digital Audio enables you to isolate different sound sources on your PC and split them between either the two digital outputs or via analogue 7.1 channel audio and front panel audio outputs
.
|
|
|
|
|
|
|
|
|

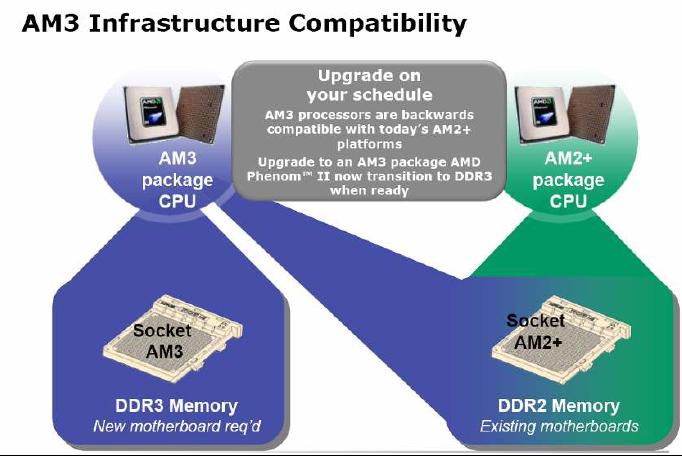

Supports AMD Socket AM3 processor for PhenomII x 4, PhenomII x 3, AthlonII processors
|
|
|
|
|
|

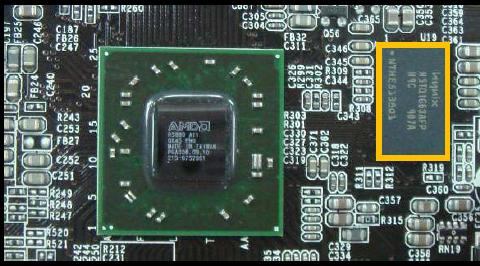

128MB DDR3 1333MHz Onboard Graphic Memory |
|
|
785G + 128MB DDR3 1333MHz Onboard Graphic Memory = 120% performance
|
|
|
PCIe Generation 2.0
PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth , 8GB/s in each direction.
PCIe2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen eration 2.0 slots. |
|
|
 |
|
|
SupportsDual Channel DDR3 1600/1333/1066
ENGINEERED FOR PERFORMANCE COMPUTING AND RELIABILITY
|
|
|
SupportsDual channel DDR3 1600/1333/1066 MAX 8G |
|
|
|
|
|
|
|
|
100% SOLID Capacitor & Ferrite Choke Design
ENGINEERED FOR PERFORMANCE COMPUTING |
|
|

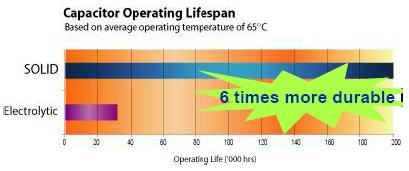

Foxconn's 100% SOLID Capacitor design improves component reliability, by replacing electrolytic capacitors with solid versions, this removes the risk of capacitor failure damaging the PCB and surrounding components, whilst improving overall system performance and stability. Solid capacitors are much more durable than standard electrolytic versions, typically lasting around 6 times longer and withstanding higher operating temperatures.
|
| |
Ferrite Choke
Ferrite Choke design improves power delivery to the motherboard. By using an iron-oxide core, the Ferrite Choke design can hold energy at a higher frequency than traditional iron cores, resulting in less power loss, and more stability and performance capability for your system, especially when under heavy loading.

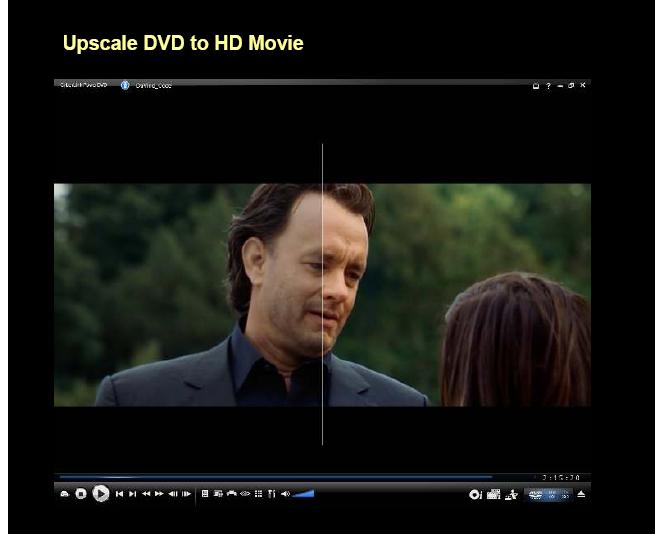

Upscale DVD to HD Movie
|
|
|
 |
