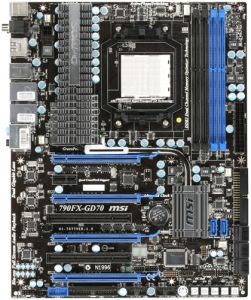

IMG 1 of 1
No Longer Available

Part Number:
129571
(?) Brand:
Manuf No:
MSI2020
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
MSI2020, 790FXGD70, 790FX-GD70, 1082282





DrMOS

  • DrMOS has integrated Driver IC, Top-MOSFET, Bottom-MOSFET
    GreenPower
    GreenPower Technology is the Best efficient power saving solution for end-users.



    XpressCool
    DrMOS offers lower temperature when it is working.
    No More Noise!! No More High Speed Fan!!

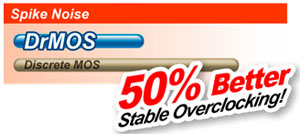

    RapidBoost

    DrMOS delivers the high quality power transfer to
    bring the Stable Overclocking Environment.









APS

  • APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, its for CPU, Memory and Chipset PWM.

    Benefits:
    Saving Power under Variable Loading.
    Power Usage More Efficiency.




140W Support

  • Supports AMD high performance 140W CPUs
  • Reserve the ability for future CPU upgrade
  • To fully release the power of AMD CPUs


Features

DrMOS
Excellent energy-saving capability and offers high-computing performance.
Provide superior energy-saving function and maintain an ultimate low temperature operation.
Comes with three incredible features.

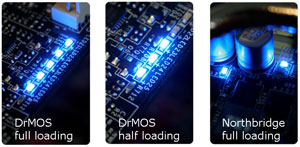

APS (Active Phase Switching)
APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, its for CPU, Memory and Chipset PWM.
Saving Power under Variable Loading.
Power Usage More Efficiency.

OC Dial
Real Time FSB tuning- FSB value change in the BIOS instant!
Unlimited Turning Segments
Easy Use Just Rotate the knob!!!
MAX FSB
Turn OC Beginner to OC Expert!!
Save your time of trying
Achieve OC goal in short time

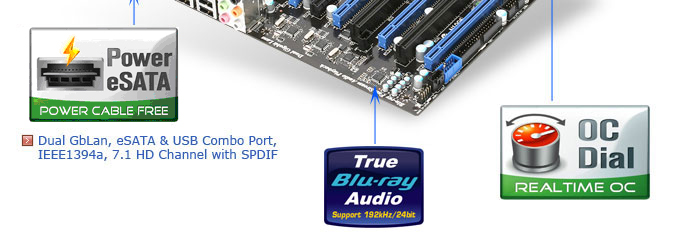

Power eSATA
MSI Power eSATA. Normally eSATA devices need extra power via an adapter or an extra USB cable. This combo port supplies the needed power, so no extra USB cable for power is needed. MSI Power eSATA is 8x faster in transferring data than normal USB ports.
M-Flash
Faster and Flexible and instant
If BIOS crash, it still can boot from USB Drive
Update BIOS from USB Drive by M-Flash Fucntion

All Solid Capacitors
Longer lifespan than electrolytic capacitors
Endurable to operation under higher frequency & temperature
Avoid exploding capacitors to cause mainboards failure
All Shielded Choke
A choke is an inductor responsible for storing power and regulates the current.
All shielded choke could reduce core power loss, lower EMI interference.
Store energy longer at higher frequency, achieving higher efficiency.

Blu-Ray Audio Support
The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc
Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers
support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs
M-Connectors
Easy connect to front panel & chassis cable
2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package
Easy to tell the definition of each pin

User Friendly Design
Functions designed with button to be easy use.
Help power-users tweaking process in-chasis enviornment
Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra.
MSI Advanced Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

CrossFireX Support
Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready.
The ultimate multi-GPU performance gaming platform.
Provides 2.7x faster performance than single graphic card solution.
Norton Internet Security 2009 60 days Trial
Norton Internet Security 2009 60 days Trial
-Blocks online identity theft by phishing Web sites
-Detects and eliminates spyware
-Removes viruses and Internet worms automatically
-Protects against hackers

Cool'n'quiet
AMD Cool'n'Quiet technology that based on famous PowerNow technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.

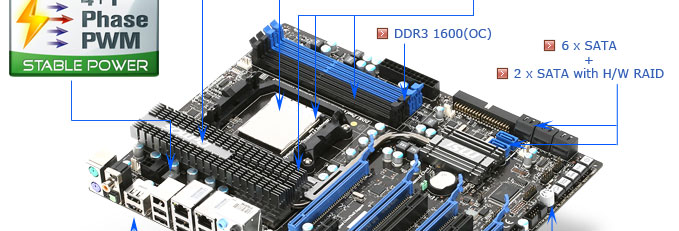

Specifications




CPU

64bit AMD  Phenom II CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

AMD 790FX and SB750 Chipset





Main Memory


Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC)SDRAM, 16GB Max




Slots

2PCI Express x16 slots(PCI_E1 & PCI_E4) supportup to PCIE 2.0 x16 speed(PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
2PCI Express x16 slots(PCI_E3 & PCI_E5) supportup to PCIE 2.0 x8 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
When 4 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8
1 PCI Express gen2 x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface.




On-Board IDE


One IDE port by AMD SB750
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

6 SATA II (1~6) ports by AMD SB750
2 SATA II (7~8) ports by JMicron JMB322
1 eSATA port by JMicron JMB362
- Supports storage and data transfers at up to 3Gb/s


RAID Function

- SATA II 1~6 support RAID 0, 1,5, 10or JBODmode by AMD SB750
- SATA II 7~8 support RAID 0, 1,or JBODmode by JMicron JMB322

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.




Audio

Chipset integrated by RealtekALC889
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec




LAN

Dual Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a




IEEE1394 / FireWire


Chipset integrated by VIA VT6315N
- Transfer rate is up to 400Mbps




Internal I/O Connectors

- ATX 24-pin power connector
- ATX 8-pin 12V CPU power connector
- CPU x 1 / System x3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
-2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
-8 x Serial ATA II connectors
- 1 x ATA133 HD connectors
- Serial port connector
- Clear CMOS button
- Power button
- Reset button
- 1 x SPDIF-Out connector
- 1 x Debug LED
- 1 x IEEE1394 connector support additional 1 port (optional)
- 1 x TPM module header (optional)

MSI Reminds You...
The floppy disk cable will be optional.

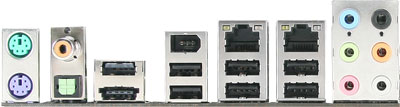

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 x PS/2 mouse


-  1 x 6 in 1 audio jack
-7 x USB 2.0 ports
- 1 x eSATA/USBshareport
-2 x RJ45 LAN jacks
- 1 x coaxial SPDIF-outport
- 1 x optical SPDIF-outport
- 1 x IEEE1394 port (optional)



Dimension

30.4cm(L) x 24.5cm(W) ATX Form Factor

Mounting

9 mounting holes.





Product Accessories


MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.


Specifications
Socket AM3
CPU (Max Support) Phenom II
AM3 CPU Ready Y
FSB / Hyper Transport Bus up to 5200MT/s
Chipset AMD 790FX+SB750
DDR2 Memory N/A
DDR3 Memory DDR3 800/1066/1333/1600*/1800*/2133*(OC)
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 16
PCI-Ex16 4
PCI-E Gen 2.0 Gen2 (2x16, 2x8)
PCI-Ex1 1
PCI 2
IDE 1
SATA 8
RAID 0/1/5/10/JBOD
LAN 10/100/1000*2
TPM 1(Optional)
USB ports (Rear) 8
Audio ports (Rear) 6+Coaxial/Optical SPDIF
Parallel ports (Rear) N/A
Serial ports (Rear) N/A
1394 ports (Rear) 1(Optional)
eSATA 1
HDMI N/A
DVI N/A
VGA N/A
Display Port N/A
DirectX N/A
VGA Share Memory (MB) N/A
Form Factor ATX
DrMOS Y
APS Y
Sideport Memory N/A
SLI N/A
3-way SLI N/A
Hybrid SLI N/A
CrossFire Y
Hybrid CrossFire N/A
D-LED2 N/A
Green Power Genie N/A
