MSI GF615M-P33 Motherboard

MSI GF615M-P33 Motherboard
AM3, nForce430, HT 1000, 2xDDR3-1333, 1xPCI-Ex16 v2.0, 4xSATA-II, 1xATA-133, RAID, 1xGigLAN, 8CHl-HD, VGA, mATX

No Longer Available

Part Number:

129572

(?) Brand:

MSI Web Site

Manuf No:

GF615M-P33
GF615MP33

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

All stock codes associated to this product

GF615MP33, GF615M-P33, 1082989

Features

APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, its for CPU, Memory and Chipset PWM.
Saving Power under Variable Loading.
Power Usage More Efficiency.

Help end-users upgrade CPU FSB directly
Buy an essential CPU but want to reach higher performance
Skip the complicated BIOS OC setting and enjoy the higher level CPU performance

The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

Key components status hardware monitor.
Monitor the CPU status.
Optimize System status define.
Auto speed up with system loading change.

Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

AMD Cool'n'Quiet technology that based on famous PowerNow technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.

Specifications

CPU

SupportAMD Phenom II X3/ X4 & AthlonX2/ X3/ X4 CPU in the AM3 package
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 1.0 supporting speed up to 2000MT/s

Chipset

NVIDIA GeForce 6150SE & nForce 430

Main Memory

Supports Dual Channel DDR3 800/1066/1333
- 2 DDR3 DIMMs (240pin / 1.5V)
- Supports a maximum memory size up to 8GB.

Slots

One PCI Express 1.0 x16 slot.
One PCI Express 1.0 x1 slot.
Two PCI slots (support 3.3v/5v PCI bus interface).

On-Board IDE

One IDE port by NVIDIA GeForce 6150SE
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

Four SATA II ports by NVIDIA GeForce 6150SE
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~4 supports RAID 0, 1, 5, 0+1mode by NVIDIA GeForce 6150SE

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

Chipset integrated by Realtek ALC888S
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

Supports 10/100/1000 Fast Ethernet by Realtek 8211CL

Internal I/O Connectors

- ATX 24-pin power connector
- 4-pin ATX 12V power connector
- CPU x1 / System x1 FAN connectors
- CD-in connector
- 1 x Floppy disk drive connector
-4 x SATA II connectors
- 1 x ATA133 connectors
- 2 x USB 2.0 connector support additional 4 ports
- SPDIF-Out connector
- Front panel connector
- Front panel audio connector
- Chassis intrusion switch connector
- Clear CMOS Jumper
- OC Switch

MSI Reminds You...
The floppy disk cable will be optional.

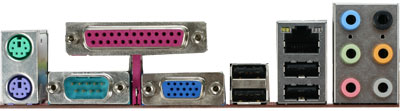

Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Parallel port
- 1 x Serial port
- 1 x VGA port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0
- 1 x RJ45 LAN Jack

Dimension

24.4cm(L) x 20.0cm(W) Micro-ATX Form Factor

Mounting

6 mounting holes.

Product Accessories

MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.

Specifications

Socket	AM3
CPU (Max Support)	Phenom II
AM3 CPU Ready	Y
FSB / Hyper Transport Bus	Up to 1000MT/s
Chipset	NVIDIA GeForce 6150SE / nForce430
DDR2 Memory	N/A
DDR3 Memory	DDR3 800/1066/1333
Memory Channel	Dual
DIMM Slots	2
Max Memory (GB)	8
PCI-Ex16	1
PCI-E Gen 2.0	Gen1 (1x16)
PCI-Ex1	1
PCI	2
IDE	1
SATA	4
RAID	0/1/5/0+1
LAN	10/100/1000*1
TPM	Y
USB ports (Rear)	4
Audio ports (Rear)	6
Parallel ports (Rear)	1
Serial ports (Rear)	1
1394 ports (Rear)	N/A
eSATA	N/A
HDMI	N/A
DVI	N/A
VGA	1
Display Port	N/A
DirectX	DX9
VGA Share Memory (MB)	256
Form Factor	M-ATX
DrMOS	N/A
APS	Y
Sideport Memory	N/A
SLI	N/A
3-way SLI	N/A
Hybrid SLI	N/A
CrossFire	N/A
Hybrid CrossFire	N/A
D-LED2	N/A
Green Power Genie	N/A

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (MSI) web site.
