| Network Standard |
IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Features |

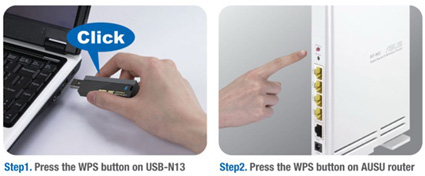

WPS Push Button (PBC mode) to launch WPS wizard |
| Interface |
USB2.0 |
| Antenna |
2 on-board PCB antenna |
| Operating Frequency |
2.4 ~ 2.5 GHz |
| Operation Channel |
11 for N. America, 13 Europe (ETSI), 14 Japan |
| Data Rate |
- 802.11nTx: 300Mbps (Max) / Rx: 300Mbps (Max)
- 802.11g54/48/36/24/18/12/9/6Mbps
- 802.11b11/5.5/2/1Mbps
|
| Output Power |
- b mode : 18dBm,
- g mode : 15dBm,
- n mode : 15dBm
|
| LED Indicator |
Link , Activity & Power |
| Modulation |
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK |
| Range |
Up to 150m |
| Management |

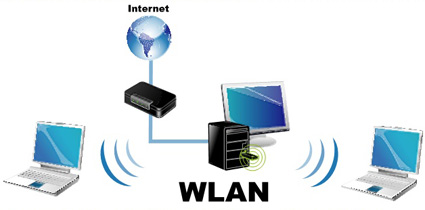

- Software AP (Win XP & Vista only)

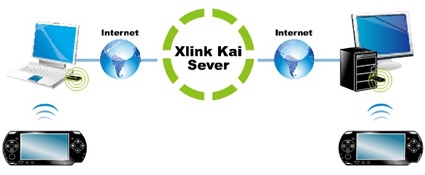

- Xlink Kai( Win XP & Mac OS only)
|
| Utilities |
- Mobile control center:
Integrate all tools and indicate real time status information on system tray
- Wireless setting:
Diagnose and configure your wireless network settings with on-line trouble shooting feature.
- Mobile manager:
Support automatic roaming and network reconfiguration between different locations
- Site survey:
Explore your wireless networking topology through a handy way
- WPS Wizard:
High-speed wireless network is just a few clicks away
|
| Certifications |
CE, FCC, IDA, IC, C-Tick, NCC, GOST |
| Physical Specifications |
Dimensions70 mm (L)* 22 mm (W)*10 mm (H) Weight12g |
| Environmental Specification |
- Operating Temperature: 0C to 45C
- Storage Temperature: -10 to 70 C (-14F to 158F)
- Operating Humidity: 15% to 95% RH (Non-condensing)
- Storage Humidity: 15% to 95% RH (Non-condensing)
|
| Package Contents |
- USB Wireless Adapter *1
- Quick start guide*1
- Support CD *1
- Warranty Card*1
|
| Network Architecture Types |
Infrastructure and ad-hoc |
| OS Support |
- Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64)
- Mac 10.3/10.4/10.5
- Linux 2.4 and 2.6
|
