All stock codes associated to this product
, ZESACS

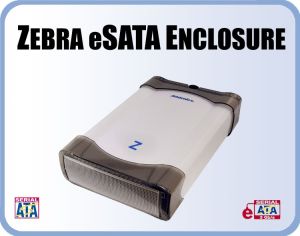

Zebra eSATA drive enclosure with eSATA interface
Content: Zebra External Enclosure with eSATA connector, 3ft eSATA-eSATA connecting cable, 100/240 AC/DC 12V power adapter (AAPAC12V-US), User Guide, Driver CD
The new Zebra series drive enclosure may be the only external drive enclosure that you will ever need. With a wide range of optional components, the Zebra series are designed to start as a basic economical drive enclosure solution. It can then be expanded with new capabilities to accommodate different type of storage devices or interface connections as your need grows. The Zebra family of enclosures come in choices of three difference interface connection - USIB, eSATA or eSATA+USB combo. The Zebra enclosures are large enough for both 3.5" or 5 1/4" drives and are designed for simple drive installation with a easily slide open drive tray at the back. The front features a removable front panel to accomodate removable or optical storage devices.
Zebra eSATA model

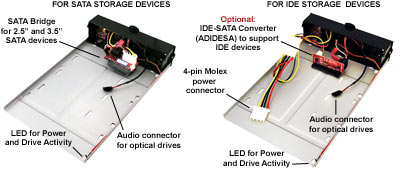

The Zebra eSATA model features a SATA to eSATA bridge connector on the back panel. It is an simple and economical solution for turning any SATA storage device into an external eSATA storage. By adding an optional IDE - SATA converter, practically any IDE storage device can also be installed into the Zebra eSATA enclosure. The eSATA interface can be instantly converted to the ubiquitous USB interface by attaching the Addonics eSATA - USB adapter.
Product Features
- Choice of eSATA or USIB module
- Sturdy aluminum construction
- Compact size for convenient transportation
- Compatible with IDE hard drives, SATA or SATA II hard drive and most ATAPI devices
- Rear mount 40x40mm cooling fan
- Plug and play
- Stereo ear phone jack
- Bootable under DOS
- Simple installation
- OS Compatibility:
- Zebra USIB Model: DOS, Windows 98SE, Me, NT (eSATA cable only), 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA Model: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA / USB 2.0 Combo: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
Specifications
Support drive type
|
Zebra eSATA: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
Zebra USIB: |
3.5" IDE hdd, 2.5" IDE hdd (with adapter), 3.5" SATA hdd (with converter), 2.5" SATA hdd (with converter) |
Zebra eSATA/USB: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
|
Interface Type:
|
Zebra eSATA: |
eSATA |
Zebra USIB: |
USB 2.0/1.1, Firewire/iLink, eSATA |
Zebra eSATA/USB: |
eSATA and USB 2.0 |
|
Construction material:
|
Aluminum body
|
LED
|
Power(Green) and Drive Activity(Red) LED
|
Audio jack
|
Stereo earphone jack
|
Supported OS
|
Windows 98SE, Me, 2000, XP, DOS, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x (bundled software works under Windows OS only)
|
Power Supply:
|
100 / 240V AC/DC 12V / 5V 34 Watts Power Adapter (AAPAC12V-US)
|
Cooling system:
|
Rear mount 40x40 mm cooling fan
|
Dimensions:
|
10.16 x 6.61 x 2.36 in. (258 x 168 x 60 mm)
|
Weight:
|
Zebra eSATA: |
2.16lbs. (979g) |
Zebra USIB: |
2.12lbs. (963g) |
Zebra eSATA/USB: |
2.11lbs. (955g) |
|
Storage Temperature:
|
Range: -30C to +60C
|
Operating Temperature:
|
Range: +5C to +40C
|
Storage Humidity:
|
5% to 90%
|
Operating Humidity:
|
5% to 95%
|
Warranty:
|
One Year
|
System Requirements
- PC/AT or Compatible System
- eSATA, USB, or Firewire port
- Pentium II or Greater
- Minimum 64 MB RAM
- One of the Following Operating System:
DOS, Windows 98SE, Me, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
