Alluring high glossy piano-black finish makes the MS Series the centerpiece of every living space.
Ultra-slim 16.5mm Profile
Sleek geometric design combines straight lines and curves with an ultra-slim 16.5mm profile.

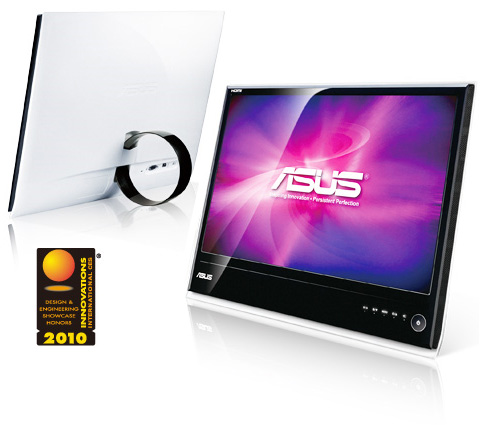

Ring Stand with Ergo-Fit Technology
Unique ring stand design features the ASUS-exclusive Ergo-Fit Technology; allowing for easy tilt adjustments with one finger.
LED Touch-Sensor Buttons
Intuitively adjust the monitors settings with a simple touch of its LED sensor buttons.
Pure Pearl-White Rear Bezel
The delicate wave-like contours on its rear bezel is complemented by a gleaming pearl-white finish.

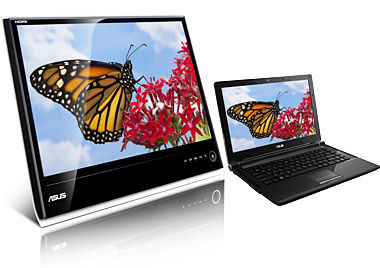

Expand Your Visual Field
The MS226H works as a secondary screen for your notebook; and has been ergonomically designed to be level with your eyes and notebook screen. It doubles your productivity with a dual screen display via a simple HDMI or VGA cable connection.
Dazzle Your Visual Senses
Full HD with HDMI
Enter a spectacular world of colors with Full HD 1080p (1920x1080) support and HDMI port.
ASUS Smart Contrast Ratio
Be captivated by stunning images with ASUS Smart Contrast Ratio (ASCR) technology that boosts the displays contrast ratio to an astonishing 50,000:1.
2ms Response Time
Quick response time of 2ms (GTG) eliminates ghosting and tracers for more fluid video playback.
Splendid Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 5 preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey.
Care for the Earth
The eco-friendly design reduces power consumption by 40% and is manufactured with 50% less hazardous materials.
Specifications
| TFT-LCD Panel |
Panel Size: 21.5 Wide Screen
True Resolution: 1920X1080
Pixel Pitch: 0.248mm
Brightness(Max): 250 cd/
Contrast Ratio (Max.): 50000 :1 (ASCR)
Display Color: 16.7M
Viewing Angle (CR10): 170(H)/160(V)
Response Time: 2 ms (Gray-to-Gray)
|
| Video Features |
Trace Free Technology
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes (5 modes)
Skin-Tone Selection (3 mode)
HDCP support
Color Temperature Selection(5 modes) |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Contrast Adjustment
Input Selection
|
| Input / Output |
PC Input: HDMI/D-Sub
Video Input: HDMI 1.3
AV Audio Input: HDMI 1.3
Earphone jack: 3.5mm Mini-jack (for HDMI only)
|
| Signal Frequency |
Analog Signal Frequency: 30~83 KHz(H)/ 50~75 Hz(V)
Digital Signal Frequency: 30~83 KHz(H)/ 50~75 Hz(V)
|
| Power Consumption |
Power Consumption < 31 W
Power Saving Mode < 1 W |
| Mechanical Design |
Chassis Colors: Black/White
Tilt: +10~+20
|
| Security |
Kensington lock
|
| Dimension (WxHxD mm) |
Phys.Dimension(WxHxD): 519.5x377.6x155.9mm
Box Dimension(WxHxD): 587x430x140mm
|
| Weight |
Net Weight (Esti.): 3.25 kg
Gross Weight (Esti.): 5.25 kg |
| Accessory |
VGA cable
Power cord
Power adapter
Quick start guide
HDMI-to-DVI cable
warranty card
|
| Regulation Approval |
Energy Star, UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, MEPS, VCCI, PSE, J-MOSS, PSB,China Energy Label, RoHS, WEEE, Windows Vista WHQL
 |
