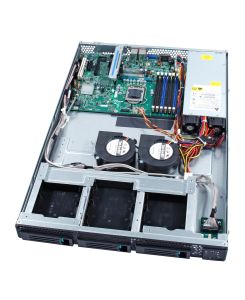

Intel SR1630HGP Barebones Server - 1U
  • Single Xeon 34xx Series, 6xDDR3-1066/1333 Reg/UnBuffered ECC, 3xHot Swap SATA-II HDD Bays, RAID-0,1,5,10, 1xGigLAN, VGA, 350W PSU

IMG 1 of 1
No Longer Available
Part Number:
130180
(?) Brand:
Intel Web Site
Manuf No:
SR1630HGP
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SR1630HGP, 1067729, 735858211895
Intel Entry Server System SR1630HGP (1U Hot-swap)
Intel Xeon Processor 3000 Sequence

Tech Specs
Product Description
Intel Entry Sever System SR1630HGP includes:
- Intel Entry Server Board S3420GPLC
- One 1U passive heat-sink
- One fixed 350W Power Supply
- Supports up to 3 Hot-swap Hard Drives
- Two SATA cable
- One USB cable
- One front panel cable
- Basic Rack Rail
- One PCI-Express x8 riser card
Chipset Supported
Intel 3420 Server Chipset
Form Factor
1U Rack
Memory Capacity
Support up to 32GB Registered or 16GB Unbuffered ECC DDR3 memory

Loading requirements:
- 1066/1333 Registered (RDIMM) Single or Dual Rank 3 per channel (6 sockets total)

- 1066 Registered (RDIMM) Quad Rank 2 per channel (4 sockets total)

- 1066/1333 Unbuffered (UDIMM) Single or Dual Rank 2 per channel (4 sockets total)

See Technical Product Specification for supported detail memory configuration information

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
Number of Processor
One
Redundant Power Capable
No
Server Management
Intel System Management Software 3.5
Slot Type
One x8 PCI Express* Gen 2 PCI riser slot capable of supporting a low-profile PCI Express* add-in card which consumes power less than 15W
Supported Operating System
Fully validated Operating Systems:
- Microsoft Windows 2003*, Enterprise Edition, Service Pack 2 (IA32 & EM64T)
Submission Logo ID: 1349281
- Microsoft Windows Server 2008*, Service Pack 1 (IA32 & EM64T)
Submission Logo ID: 1350308
- RedHat* Enterprise Linux 5.0 Advanced Server, Update Package 3 (IA32 & EM64T)
- SuSE* Linux Enterprise Server 11 (IA32 & EM64T)

Install Only supported Operating Systems:
- Microsoft Windows* XP (32bit and 64bit) SP2
Supported Processor
Intel Xeon Processor 3400 Series
System Bus Speed
Intel QuickPath Technology

Target Market
The Intel Entry Server System SR1630HGP is a 1U general purpose Uni-Processor rack server which offers an ideal server solution for applications such as CAD, modeling, electronic design automation, and animation.

Front Bezel Features
Dimensions
Drive Bays One Slimline bay for slimline SATA optical drive
Front Connectors One USB connector
Hot Swap Drive Bays Three
Integrated Graphics Onboard ServerEngines* LLC Pilot II BMC Controller
- Integrated 2D Video Controller
- 64-MB DDR2 667 MHz Memory
Integrated LAN One Gigabit Ethernet PHY 82578 connected to PCH through PCI-E x1 interface
Integrated RAID Onboard SW RAID 0, 1, 5, and 10
Integrated SCSI N/A
Integrated SAS N/S
Integrated SATA Supports six Serial ATA II hard drives
Storage Integrated IPMI 2.0 compliant Baseboard Management Controller
Supported Operating System Fully validated Operating Systems:
- Microsoft Windows 2003*, Enterprise Edition, Service Pack 2 (IA32 & EM64T)
Submission Logo ID: 1349281
- Microsoft Windows Server 2008*, Service Pack 1 (IA32 & EM64T)
Submission Logo ID: 1350308
- RedHat* Enterprise Linux 5.0 Advanced Server, Update Package 3 (IA32 & EM64T)
- SuSE* Linux Enterprise Server 11 (IA32 & EM64T)

Install Only supported Operating Systems:
- Microsoft Windows* XP (32bit and 64bit) SP2
System Cooling Two 97 x 94 x 33mm, non-redundant, variable-speed system blower fans
Total Slots Four
USB Connections Two USB 2x5 pin headers, each supporting two USB 2.0 ports
Warranty Three-year limited
Power Supply Single 350-W power supply
Serial Port

Items Included With This Product
Item Part Number MM# # Required Description
Intel Entry Server System SR1630HGP (1U Hot-swap) SR1630HGPNA (Includes North American power cord) SR1630HGP 902734 (with power cord) or 902732 1 Intel Entry Sever System SR1630HGP includes:
- Intel Entry Server Board S3420GPLC
- One 1U passive heat-sink
- One fixed 350W Power Supply
- Supports up to 3 Hot-swap Hard Drives
- Two SATA cable
- One USB cable
- One front panel cable
- Basic Rack Rail
- One PCI-Express x8 riser card
