All stock codes associated to this product
, HDUSI325AES
Package content:
HDD Duplicator with 2x Diamond SATA Drive Cradles installed, 1x Diamond SATA Drive Enclosure (DSACSB), 1x Diamond Cipher AES 256-bit SATA Drive Enclosure (DCSACS256), 1x Diamond IDE Drive Enclosure (DICSB), 2.5" to 3.5" IDE converter (AA25IDE35), 2.5" to 3.5" bracket (AASMKHD218), mounting screws for securing hard drives inside the drive enclosure, User guide

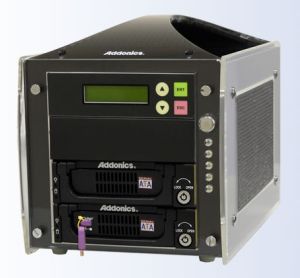

The Addonics HDD Duplicator PRO S is the first hard drive copying tool in the market that enables fast drive duplication from any 2.5" hard drive / SSD onto SATA hard drive / SSD with AES-256 bit encryption or vice versa. This unique capability makes this duplicator an ideal solution for creating duplicate hard drives containing sensitive data without using complicated software and time consuming encryption conversion process. In addition, the HDD Duplicator PRO S can be used for duplication from SATA hard drive / SSD to IDE hard drive / SSD or vice versa, making this duplicator also a great tool for quick transfer of OS or data onto different type of hard drives.
Similar to other members in the Addonics HDD Duplicator family, this PRO S model is also simple to use and operate. Just open the doors on the two drive bays, load your master hard drive to the drive bay on top and another hard drive of capacity equal or larger than the master drive to the bottom drive bay, turn the key lock to the lock position and push the start button to start the copying process.
Supported drive copying options
| From source |
To target |
HDUSI325
|
| 3.5" SATA HDD |
3.5" SATA HDD with AES 256-bit hardware encryption |
Yes
|
| 3.5" IDE HDD |
3.5" SATA HDD with AES 256-bit hardware encryption |
Yes
|
| 3.5" SATA HDD |
2.5" SATA HDD/SSD with AES 256-bit hardware encryption |
Yes
|
| 3.5" IDE HDD |
2.5" SATA HDD/SSD with AES 256-bit hardware encryption |
Yes
|
| 2.5" SATA HDD / SSD |
2.5" SATA HDD/SSD with AES 256-bit hardware encryption |
Yes
|
| 2.5" IDE HDD / SSD |
2.5" SATA HDD/SSD with AES 256-bit hardware encryption |
Yes
|
| 3.5" SATA HDD with AES 256-bit hardware encryption |
3.5" SATA HDD |
Yes
|
| 3.5" SATA HDD with AES 256-bit hardware encryption |
3.5" IDE HDD |
Yes
|
| 3.5" SATA HDD with AES 256-bit encryption |
2.5" SATA HDD/SSD |
Yes
|
| 3.5" SATA HDD with AES 256-bit hardware encryption |
2.5" IDE HDD/SSD |
Yes
|
| 2.5" SATA HDD/SDD with AES 256-bit hardware encryption |
2.5" SATA HDD/SSD |
Yes
|
| 2.5" SATA HDD/SDD with AES 256-bit hardware encryption |
2.5" IDE HDD/SSD |
Yes
|
| 3.5 SATA HDD |
3.5" SATA HDD |
option (see note 1 below)
|
| 3.5" SATA HDD |
3.5" IDE HDD |
|
| 3.5" SATA HDD |
2.5" SATA HDD/SSD |
option (see note 1 below)
|
| 3.5" SATA HDD |
2.5" IDE HDD/SSD |
|
| 3.5" IDE HDD |
3.5" SATA HDD |
|
| 3.5" IDE HDD |
3.5" IDE HDD |
option (see note 2 below)
|
| 3.5" IDE HDD |
2.5" SATA HDD/SSD |
|
| 3.5" IDE HDD |
2.5" IDE HDD/SSD |
option (see note 2 below)
|
| 2.5" SATA HDD/SSD |
3.5" SATA HDD |
option (see note 1 below)
|
| 2.5" SATA HDD/SSD |
3.5" IDE HDD |
|
| 2.5" SATA HDD/SSD |
2.5" SATA HDD/SSD |
option (see note 1 below)
|
| 2.5" SATA HDD/SSD |
2.5" IDE HDD/SSD |
|
| 2.5" IDE HDD/SSD |
3.5" SATA HDD |
|
| 2.5" IDE HDD/SSD |
3.5" IDE HDD |
option (see note 2 below)
|
| 2.5" IDE HDD/SSD |
2.5" SATA HDD/SSD |
|
| 2.5" IDE HDD/SSD |
2.5" IDE HDD/SSD |
option (see note 2 below)
|
Note:
- requires additional Diamond SATA drive enclosure (model: DSACSB)
- requires additional Diamond IDE drive enclosure (model: DICSB)
Product Features
- Copy any 2.5" or 3.5" hard drive / SSD to any 2.5" or 3.5" hard drive or SSD with AES 256-bit encryption and vice versa
- Copy any 2.5" or 3.5" SATA hard drive / SSD to 2.5" or 3.5" IDE hard drive / SSD or vice versa
- OS independent
- Copy up to 1.5Gbps depending on the performance of the hard drive
- Source and Destination drives are added or removed like tape cartridges via a removable drive enclosure.
- LCM control module provides a rich set of robust advanced configuration options
- Operate as a stand alone appliance. No computer or software needed
Specification
- Writing mode : Sector to Sector
- Support up to 1.5Gbps transferring rate (actual transfer rate depends on the speed of the source and destination drive)
- Install drives into drive bay via removable drive enclosure
- Stylish clear acrylic exterior
- Light weight and sturdy aluminum construction
- Ventilated side panels for efficient air flow
- Ball bearing high CFM low noise cooling fans
- LCD display with functional control panel
- Integrated 220W 110/240 auto-sense power supply
- Compact size - 8.19 x 12.94 x 8 inch (W x D x H)
- Weight: 9.1 lb (4.13 kg)
- Operating environment: 0 - 50 degree C, 15% - 90% RH
- Storage environment: - 20 - 85 degree C, 0% - 95% RH non-condensing
