Part Number:
130261
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
RSA00-AMBAJ3
RSA00AMBAJ3
Shipping Weight:
5 KG (Includes product packaging)
Introduction

Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and wont have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorbtion silicon pads to remove possible vibrations.

Features

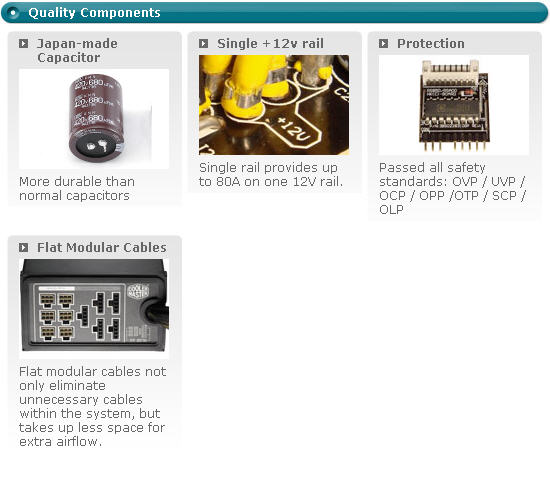

  • Copper plus aluminum heatsink for efficient heat dissipation
  • Japanese-made capacitors to enhance PSU outputs stability
  • Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92

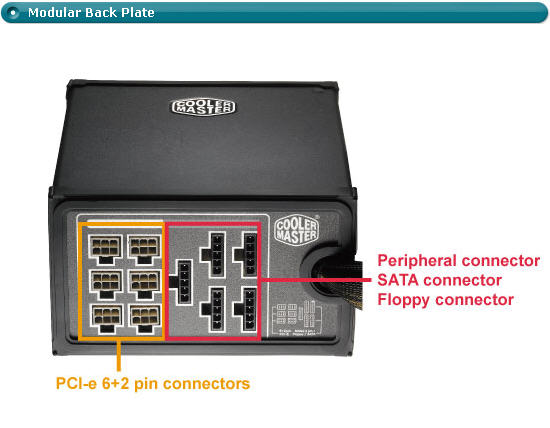

  • Flat modularized cables to eliminate the clutter and improve airflow inside the chassis

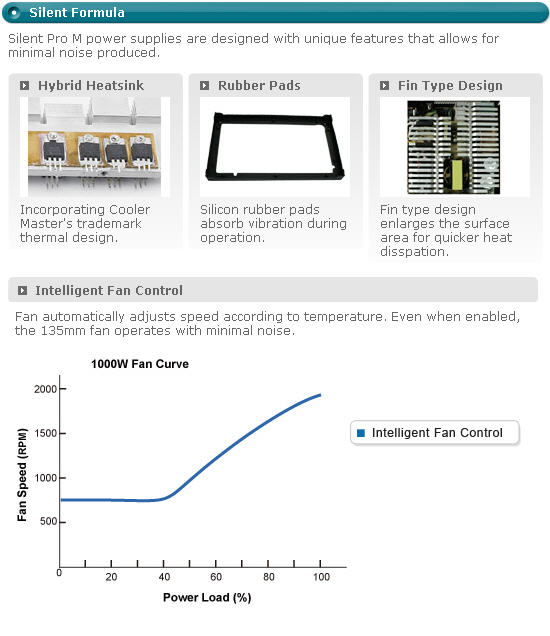

  • Ultra-silent operation with intelligent 135mm fan speed control
  • Unique silicon pad eliminate the vibration
  • Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
  • Single +12V rail for up to 80A for high demanding SLI


  • Specifications
    Model RS-A00-AMBA-J3

    Type Intel ATX12V V2.3 / SSI EPS 12V V2.92

    Dimension (W / H / D) 150(W) x 86(H) x 165(L) (mm)

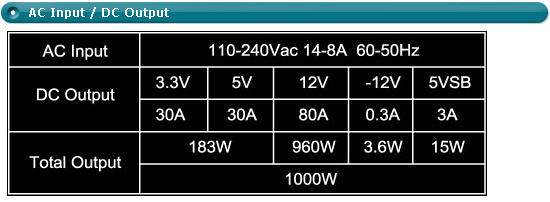

    Input Voltage 90~264V (Auto Range)

    Input Current 14A@115Vac, 8A@230Vac

    Input Frequency Range 47~63Hz

    PFC Active PFC >0.9

    Power Good Signal 100~500ms

    Hold Up Time >17ms

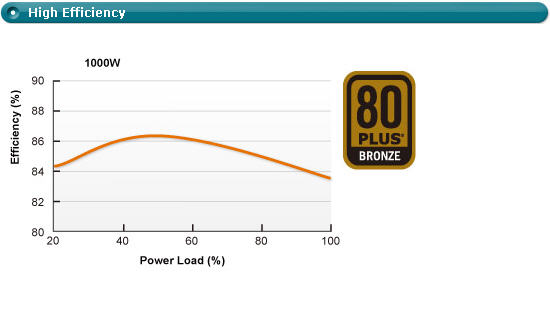

    Efficiency 85% Typically

    MTBF >100,000hrs

    Protection OVP/ UVP/OCP/OPP/OTP /SCP

    Output Capacity 1000W

    Max. Output Capacity 1200W

    Operation Temperature 0~40C (Nominal Input Voltage)

    Regulatory TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI

    Fan 135mm ultra silent fan

    Certifications SLI / 80 Plus Bronze

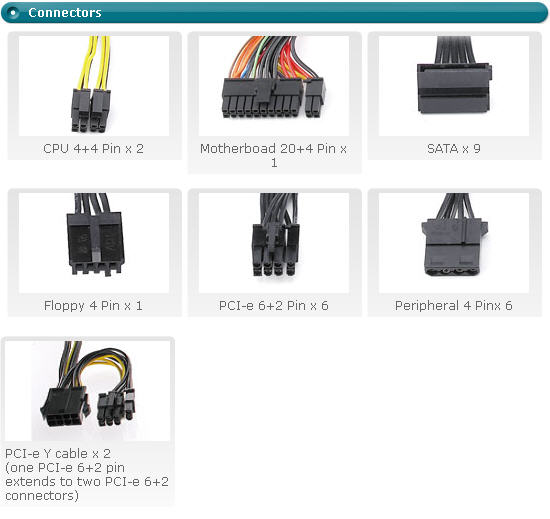

    Connector M/B 20+4 Pin Connector x 1
    CPU 4+4 Pin x 2
    PCI-E 6+2 Pin x 6
    4 Pin Peripheral x 6
    SATA x 9
    4 Pin Floppy x 1
    PCI-e Y cable x 2
    (One PCI-e 6+2 Pin extends to two PCI-e 6+2 connectors)

    No additional files, specification sheets, guides or documentation found for product.

    No related products found.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
