CoolerMaster 850W Silent Pro - ATX 12V v2.3, EPS 12V v2.92, 135mm Fan, Modular Cables, SLI Ready, 80 PLUS Bronze Certified
  • 9xSATA, 6xPCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
130262
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS850-AMBAJ3
RS850AMBAJ3
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS850AMBAJ3, RS850-AMBAJ3, PSCORS850AMBAJ3
Introduction

Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and wont have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorbtion silicon pads to remove possible vibrations.

Features

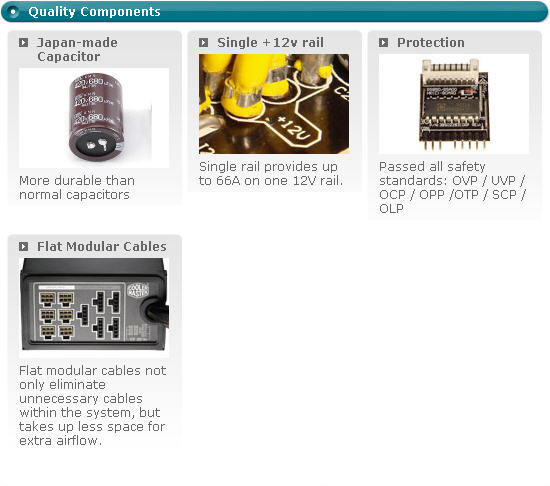

  • Copper plus aluminum heatsink for efficient heat dissipation
  • Japanese-made capacitors to enhance PSU outputs stability
  • Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92

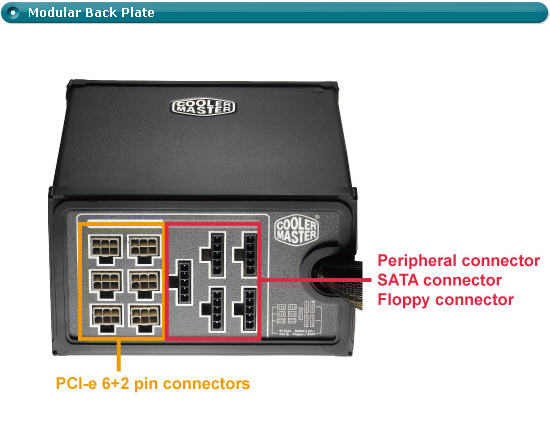

  • Flat modularized cables to eliminate the clutter and improve airflow inside the chassis

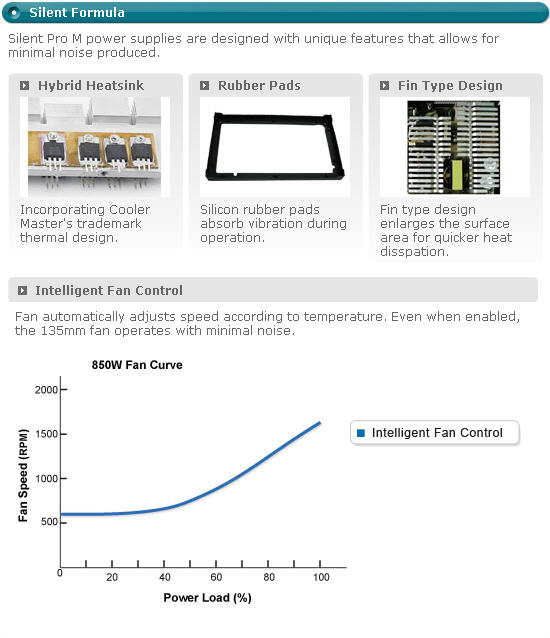

  • Ultra-silent operation with intelligent 135mm fan speed control
  • Unique silicon pad eliminate the vibration
  • Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
  • Single +12V rail for up to 80A for high demanding SLI


Specifications
Model RS-850-AMBA-J3

Type Intel ATX12V V2.3 ? SSI EPS 12V V2.92

Dimension (W / H / D) 150(W) x 86(H) x 165(L) (mm)

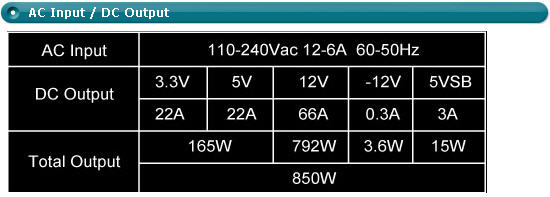

Input Voltage 90~264V (Auto Range)

Input Current 12A@115Vac, 6A@230Vac

Input Frequency Range 47~63Hz

PFC Active PFC >0.9

Power Good Signal 100~500ms

Hold Up Time >17ms

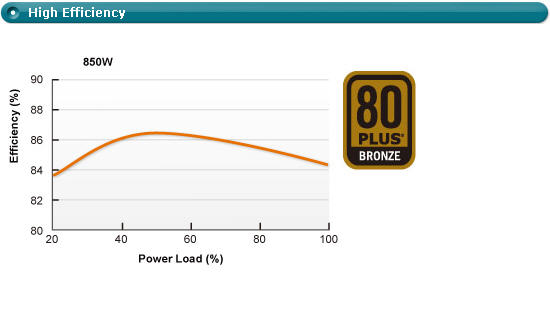

Efficiency 85% Typically

MTBF >100,000hrs

Protection OVP/ UVP/OCP/OPP/OTP /SCP

Output Capacity 850W

Max. Output Capacity 1020W

Operation Temperature 0~40C (Nominal Input Voltage)

Regulatory TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI

Fan 135mm ultra silent fan

Certifications SLI / 80 Plus Bronze

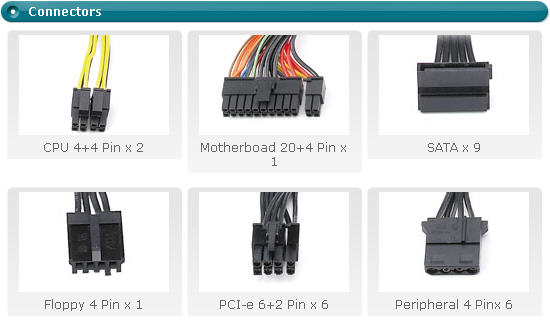

Connector M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1
