ASUS GX-D1241 Gigabit Switch - 24-Port 10/100/1000, Rackmountable

IMG 1 of 2
No Longer Available
Part Number:
130987
(?) Brand:
ASUS Web Site
Manuf No:
GX-D1241
GXD1241
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GXD1241, GX-D1241

Features

  • 24 RJ-45 10/100/1000 Mbps Ethernet ports with Auto MDI/MDIX
  • Complies with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T) standards
  • Auto MDI/MDI-X function
  • Auto negotiation of speed (10/100/1000Mbps), and duplex mode. *Note that 1000Mbps supports only full duplex mode
  • Supports IEEE 802.3x flow control for Full Duplex mode
  • Back pressure support for Half Duplex mode
  • Up to 2Gbps in full-duplex mode
  • Supports IEEE 802.1p QoS Prioritization: 4 Queues
  • Supports Store & Forward architecture
  • 4K MAC Address with automatic address learning and aging
  • Supports 9.6KB Jumbo Frame

Green Network Technology

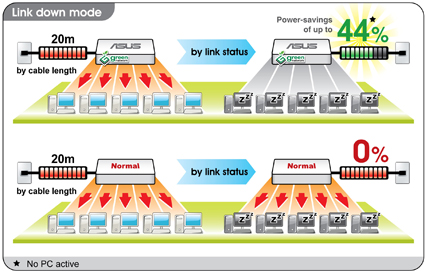

Link down mode & Cable length detection power saving of up to 44%. Through Green Network feature, the GX-D1241 switches can detect when PCs is turned off and will respond accordingly by powering down into standby mode and power consumption can be significantly reduced.

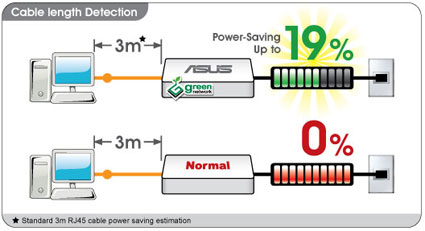

The switches send full power to cables regardless of the actual length. Through Asus Green Network Technology (GNT), the switches are able to detect the cable's length and adjust the power accordingly. By comparing the 20m cable lengths used, only need 18.9W power consumption.

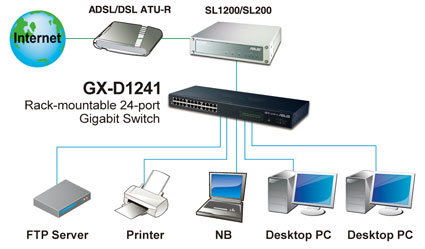

GX Series Unmanaged Switch SOHO/SMB Solution Architectures

Specifications

Port Attributes
  • 24 RJ-45 for 10/100/100Mbps Ethernet ports
  • Auto MDI/MDIX
  • Auto-negotiation: Speed, Duplex mode, and Flow control
  • AC Power
Protocol
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p Priority Queuing
Data Transfer Rates
  • Ethernet: 10Mbps (Half-duplex)
  • Ethernet: 20Mbps (Full-duplex)
  • Fast Ethernet: 100Mbps (Half-duplex)
  • Fast Ethernet: 200Mbps (Full-duplex)
  • Gigabit Ethernet: 2000Mbps (Full-duplex)
Performance
  • Up to 8,000 MAC Address
  • Forwarding Rate: 35.7Mpps
  • Switch Fabric: 48Gbps
  • Buffer Memory: 500KB
  • 9.6KB Jumbo Frame support
Transmission Method Store-and-forward
Power Supply Power Supply: Input 100-240Vac, 50/60 Hz Internal Universal Power
Power Consumption: Max. 30Watts
Environmental Operating Temperature: 0C to 40C (32F to 104F)
Storage Temperature: -20 to 70 C (-4F to 158F)
Operating Humidity: 10% to 90% RH (Non-condensing)
Storage Humidity: 5% to 95% RH (Non-condensing)
Dimensions (app.) Dimensions: 444mm (L) x 180.2mm (W) x 43.9mm (H)
Net Weight (app.) Weight: 2.2Kg
Safety LVD
EMC CE / FCC / CCC
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
