All stock codes associated to this product
STMCP355, ST-MCP355
Despite a remarkably small footprint of 2.4" square, the MCP355 features an astounding 20ft of head to provide superior flow rates in today's most complex liquid cooled systems. The MCP355 is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime). Such reliability is afforded by the unique design of this pump, which contains only one moving part: the magnetically driven rotor/impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards. The pump is completely plug-and-play, and connects directly to any computer power-supply through standard 4 pin power connectors. It's compact and powerful motor make it ideally suited for extreme duty cooling in environments where space is at a premium.
Features & benefits:
- Small Footprint: 2.4" x 2.4" x 1.5"
- 50,000 hours MTBF (Mean Time Between Failure) equivalent to 5 years lifetime.
- Superior 12 Volts DC convenience: plugs into the computer power supply
- The MCP355 can be used with full confidence in any MP servers, and high-end workstations.
- Superior real world performance
- High pressure capability of the MCP355 is particularly well adapted to the proliferation of daisy-chained liquid cooling devices in a single circuit: Multiple Processors, Chipset, Graphics, and Hard Drives.
- 3/8" Barb fittings.
- No maintenance when used with de-mineralized water, and anti-fungal additives (Swiftech HydrX is recommended)
- Quick installation with adhesive neoprene pad, or permanent installation with thru-bolts
- RPM sensor plugs to 3 pin motherboard fan connectors and reports impeller rotational speed
A Note of Caution! the MCP355 generates higher audible noise than the MCP655 pump. This product is not recomended for users seeking silent operations.
Detailed specifications:
-
Nominal voltage: 12 V DC.
-
Operating voltage range: 8 to 13.2 VDC
-
Nominal power (@ 12 V): 14 to 19 W.
-
Nominal current (@ 12 V): 1.16 to 1.58 amps
-
Nominal head (@ 12 V): 15ft (4.5m)
-
Nominal discharge (@ 12 V): ~120 GPH (454 LPH)
-
Motor type: Electronically commutated, brushless DC, spherical motor
-
Connection size: 3/8" barbs (10mm)
-
Maximum pressure: 22 PSI (1.5 BAR).
-
Temperature range: Up to 140F (60C)
-
Electrical connector: 4-pin peripheral connector (aka 4-pin molex).
-
Weight: 207g
-
Our noise measurement (non lab environment): 30 ~ 32 dBA in a quiet room @ 2'
-
Pump MTBF (Mean Time Between Failures): 50,000 hours
-
RPM Signal: Single wire on 3 pin connector
-
RoHS: Compliant
Compatibility & retention mechanisms:

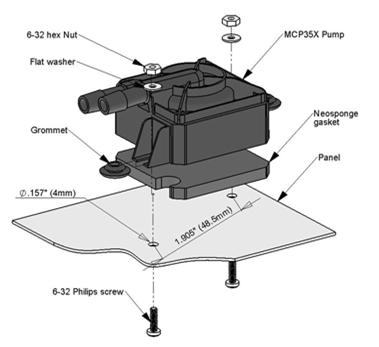

The MCP355 can either be installed with the built-in neoprene pad featuring a peel-off adhesive back, or permanently with thru-bolts as shown below.
Package contents:
MCP355 pump, adhesive backed neoprene pad for quick installations, nuts and bolts for permanent mounts & installation guide.
