StandardsIEEE 802.11g / b
IEEE 802.11n 2.0
IEEE 802.11h
InterfaceComplies with USB 2.0 A-Type
Supports full-speed (12Mbps) and high-speed (480Mbps)
Frequency Band
2.400GHz ~ 2.4835GH
Modulations
IEEE 802.11b: DSSS (CCK / DQPSK / DBPSK)
IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
IEEE802.11n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Data Rates
IEEE 802.11b: 11, 5.5, 2 and 1Mbps; Auto-fallback
IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps; Auto-fallback
IEEE 802.11n (20MHz): 75 Mbps (T) / 150 Mbps (R)
IEEE 802.11n (40MHz): 150 Mbps (T) / 300 Mbps (R)
Access Protocol
CSMA/CA
Wireless Security
64/128bit WEP
WPA (TKIP with IEEE 802.1x)
WPA2 (AES with IEEE 802.1x)
WPS (Wi-Fi Protected Setup) for easy setup
Transmitting Power
802.11bup to 17 1 dBm
802.11gup to 15 1 dBm
802.11nup to 14 1 dBm
Operating Mode

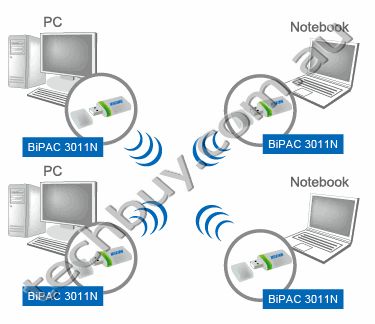

Ad-hoc mode / infrastructure mode
Number of Operational channels
U.S. 1-11
Japan 1-13, 14
Elsewhere Worldwide 1-13
Quality of Service (QoS) Enhancement
WMM (Wi-Fi Multimedia) function for multi-media data bandwidth requirement.
Supported Operating Systems
Mac 10.4/10.5
Linux
Windows 2000, XP 32/64, Vista 32/64
Receiver Sensitivity
802.11b -85dBm
802.11g -78dBm
802.11n -70dBm
Antenna
Internal two antennas with one TX and two RX
Dimensions
49 (L) x 26 (W) x 10.4 (H) mm
LED Display
Link/ Act
Temperature Range
Operating temperature: 0C ~ 60C
Humidity
20 - 90% (non-condensing)
Weight (Main Body)
10g
* Notes:
1. The connecting AP and the application must support WMM as well.
2. Specifications in this datasheet are subject to change without prior notice.
