 Sleek Minimalist Design
Stylish aluminum front panel design, latest DFSTN LCD with volume knob, and easy multimedia control button interface for comfortable operation.
|
|

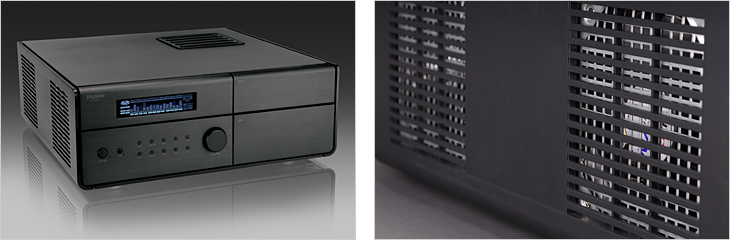

Side Ventilation for Intensified Cooling Performance
Along with the rear exhaust vents, the side vents allow optimum airflow for powerful cooling performance.
|
|
| |
 |
| Tool-Free HDD Installation
The Tool-Free HDD Trays are designed for easy HDD installation and maintenance.
|
|

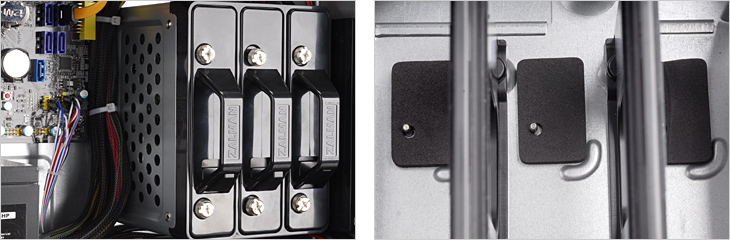

HDD Vibration Absorbing Rubber Dampers
Rubber pads minimize HDD vibrations and related harmonic resonance.
|
|
| |
 |

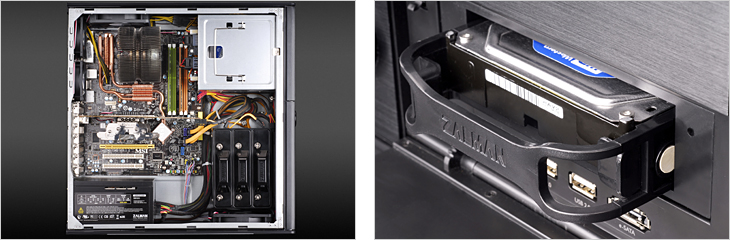

| Spacious Interior for Easy Component Installation
Micro ATX as well as Standard ATX motherboards are supported for installation of high performance components and versatile expandability.
|
|
Hot-Swap HDD Support
Supports HDD Hot-Swap for convenient HDD installation and maintenance.
|
|
| |
 |

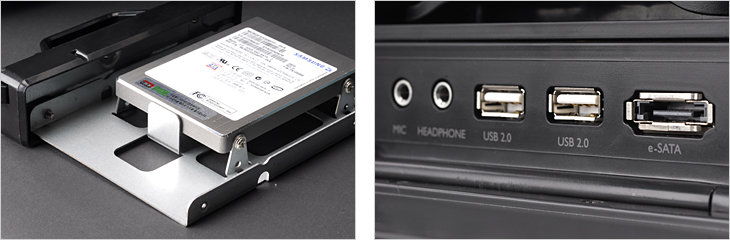

| SSD(Solid State Drive) Compatible
Up to two 2.5 SSDs can be installed using the included SSD bracket.
|
|
Convenient Front I/O Ports
Convenient I/O Port with 2 USB/ 1 e-SATA/ 1 Headphones/ 1 Mic accommodates a variety of peripheral components.
|
|
| |
 |

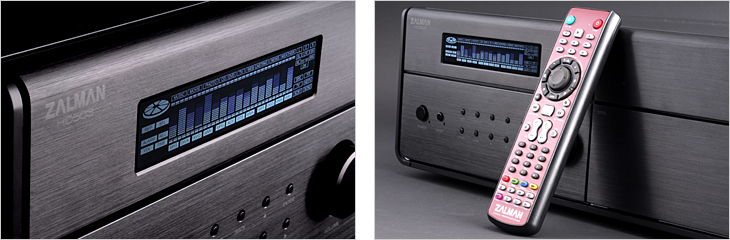

| Integrated DFSTN LCD for Users Convenience
The DFSTN LCD on the front panel has a wide viewing angle and displays various multimedia information for user convenience.
|
|
Windows Vista compatible Software and Remote Control
The Windows Vista compatible software and remote control enables PC control from a distance and the front panel buttons, knob, and remote control enable convenient control of many multimedia programs.
|
|
| |
 |
 |
- HD503
- Motherboard/PSU Bolts
- HDD Bolts(Hot Swap Bay)
- ODD Bolts
- mATX Standoffs
- SSD Bolts
- Clamp
- Cable Ties
- Lock Plate Bolt
- Lock Plate
- SSD Bracket
- CPU Power Extension Cord
- Remote Control
- iMon Users Manual
- Batteries(AAA)
- Installation CD
- Users Manual |
|
|
|
| |
 |
| |
| Enclosure Type |
HTPC |
| Dimensions |
450(W) x 170(H) x 455(D)mm |
| Weight |
8kg |
| Material |
Aluminum / Plastic / Steel |
| Motherboard Compatibility |
Standard ATX / Micro ATX |
| Power Supply Compatibility |
Standard ATX / ATX12V |
| PCI/AGP Card Compatibility |
Full Size |
| 5.25" Bays |
2 (Hot Swap Bay x 1) |
| 3.5" Bays |
3 (SSD x 2) |
| Cooling Components (Fans) |
Rear: 2 x 80mm fans, Side: 2 x 120mm fans(Optional) |
| Expansion Card Slots |
7 |
| Front I/O Ports |
1 x Mic, 1 x Headphones, 2 x USB, 1 x e-SATA |
| Display |
DFSTN LCD |
| Available Color |
Black / Silver |
|
