HOME / Back -> Motherboards -> Server (Intel Socket 1156) -> Intel

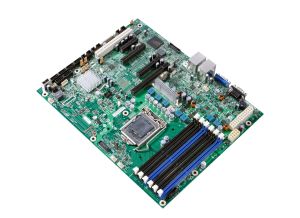

Intel S3420GPLC Motherboard
  • LGA1156, I3420, 6xDDR3-RDIMM or 4xUDIMM RAM, 6xSATA-II, RAID, 2xGigLAN, VGA, ATX

IMG 1 of 1
No Longer Available
Part Number:
133625
(?) Brand:
Intel Web Site
Manuf No:
S3420GPLC
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
S3420GPLC, 735858211819

Intel Entry Server Board S3420GPLC
Intel Xeon Processor 3000 Sequence

Intel Entry Server Board S3420GPLC has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series

Tech Specs
Product Description
Intel Entry Server Board S3420GPLC has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series
Supported Chipset
Intel 3420 Server Chipsets
Memory Capacity
Support up to 32GB Registered or 16GB Unbuffered ECC DDR3 memory

Loading requirements:
- 1066/1333 Registered (RDIMM) Single or Dual Rank 3 per channel (6 sockets total)

- 1066 Registered (RDIMM) Quad Rank 2 per channel (4 sockets total)

- 1066/1333 Unbuffered (UDIMM) Single or Dual Rank 2 per channel (4 sockets total)

See Technical Product Specification for supported detail memory configuration information

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
PCI Slot Type
Four PCI Slots:
- One 5V PCI 32 bit / 33 MHz connector
- One PCI Express* Gen1 x8 (x4 throughput)
- One PCI Express* Gen2 x8 (x8 throughput)
- One PCI Express* Gen2 x16 (x8 throughput)



Storage
Integrated IPMI 2.0 compliant Baseboard Management Controller
Supported Processor
Intel Xeon Processor 3400 Series

Target Market
Intel Entry Server Board S3420GPLC is an affordable General purpose Uni-Processor server with essential server class features and can be easily deployed in pedestal or rack mount chassis

Supported Chassis Intel Entry Server Chassis SC5650UP; SC5299DP; and SC5299BRP
Number of Processors Supported One
Independent PCI Buses
Total PCI Slots Four
Integrated SAS N/A
Integrated SATA Supports six Serial ATA II hard drives
Integrated SCSI N/A
Integrated LAN One Gigabit Ethernet PHY 82578 connected to PCH through PCI-E x1 interface and one Gigabit Ethernet PHY 82574
Integrated Graphics Onboard ServerEngines* LLC Pilot II BMC Controller
- Integrated 2D Video Controller
- 64-MB DDR2 667 MHz Memory
USB Connections Two USB 2x5 pin headers, each supporting two USB 2.0 ports
Server Management Intel System Management Software 3.5
Supported Operating System Fully validated Operating Systems:
- Microsoft Windows Server 2008* Release 2
Submission Logo ID: 1349281(Intel Xeon Processor)
1382725 (Intel Core i3-530 Processor)
- Microsoft Windows 2003*, Enterprise Edition, SP 2
Submission Logo ID: 1349281
- RedHat* Enterprise Linux 5.0 Advanced Server, U 4 (IA32 & EM64T)
- SuSE* Linux Enterprise Server 11 (IA32 & EM64T)

Install Only supported Operating Systems:
- Microsoft Windows* XP (32bit and 64bit) SP2
- SuSE* Linux Enterprise Server 10; SP3 (IA32 & EM64T)
- RedHat* Enterprise Linux4.0; U8 Advanced Server, Update Package 4 (IA32 & EM64T)
- VMWare* 4.0 Update 1 (Requires additional add-in NIC card)
Certification: INT-17NOV09
Dimension ATX - 12" x 9.6"
System Bus Intel QuickPath Technology
Integrated RAID Support Onboard SW RAID 0, 1, 5, and 10
Warranty Three-year limited

Items Included With This Product
Item Part Number MM# # Required Description
Intel Entry Server Board S3420GPLC S3420GPLC 902723 1 Intel Entry Server Board S3420GPLC has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series
