 CPU
Supports Intel P4 Northwood/Prescott/Celeron processors.
Supports FSB 533/ 800MHz.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
|
| |
Chipset
Intel 945GC Chipset
- Integrated Intel GMA 950 graphics core
Intel ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- 1 channel Ultra ATA 100 bus master IDE controller.
- PCI Master v2.3, I/O APIC.
|
| |
Main Memory
Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM
Supports dual channel DDR2 memory architecture.
Supports DDR2 533/667 memory interface. (4GB Max)
|
| |
Slots One PCI Express x16 slot. Two 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)
|
| |
On-Board IDE/SATA
One Ultra DMA 66/100 IDE controllers integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Can connect up to four SATAII devices.
|
| |
Audio
Chip integrated by Realtek ALC888
- Flexible 7.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
|
| |
LAN
Supports 10 / 100 Mb/s Fast Ethernet by Realtek RTL8101E.
Supports 10 / 100 /1000 Mb/s Fast Ethernet by Realtek RTL8111C.
- Supports ACPI Power Management.
|
| |
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- 1 x CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- 2 x Front panel connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
- 1 x SPDIF-out connector
- Chassis intrusion switch connector
- Clear CMOS jumper
MSI Reminds You...
The floppy disk cable will be optional. |
|
| |

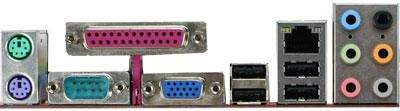

Back Panel I/O Ports
- 1 x Parallel port
- 1 x Serial port (COM 1) - 1 x Graphics Card port - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x 6 in1 audio jack - 4 x USB 2.0 ports - 1 x RJ45 LAN jack
|
| |
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
|
| |
Dimension
24.5cm(L) x 20.0cm(W) Micro-ATX Form Factor
Mounting
6 mounting holes.
|
| |
|
Product Accessories
|
