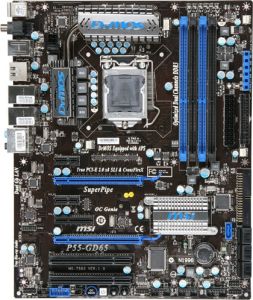

IMG 1 of 1
No Longer Available

Part Number:
133816
(?) Brand:
Manuf No:
P55-GD65
P55GD65
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
P55GD65, P55-GD65, 816909062397

OC Genie

  • Push to overclock in 1 second

    MSIs original invention, a fully automatic, smart overclocking chip.
    It will automatically detect the optimal settings for your individual system
  • Advantages

    1. 300% higher than Turbo Boost
    2. Overclock 4 core B-clock & Ratio by OC Genie
    3. Turbo Boost only overclock a little Ratio
    *To enable OC Genie, we suggest youusing the new 1.65V XMP memory modules and a high efficiency CPU cooler.


SuperPipe

  • Decrease of temperature by 50C

    The thick design of 8mm heatpipe
    A surface increase of more than 56% compared to other competitors.
  • Advantages

    1. 8mm extra thick heatpipe
    2. 60% thicker than traditional heatpipe
    3. Thickest heatpipe used on mainboard

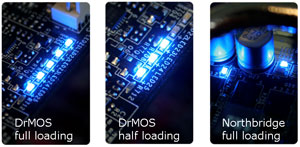

DrMOS

  • 1 Phase DrMOS > 4 Phase Traditional MOSFET

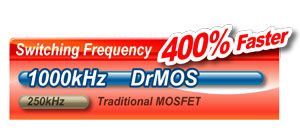

    3-in-1 server class power component, 400% faster than traditional MOSFET
    Offers excellent energy-saving capability and high-computing performance.
  • Advantages
    .
    1. High Efficiency: Up to 96%
    2. Efficiency Increase: +38.3%
    3. Lower Power Loss: -4.01W (64% Max Saving)








APS

  • APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, its for CPU, Memory and Chipset PWM.

    Benefits:
    Saving Power under Variable Loading.
    Power Usage More Efficiency.



Features

Superpipe
8mm extra thick heatpipe.
60% thicker than traditional heatpipe.
Thickest heatpipe used on mainboard.
50C lower temperature.
OC Genie
One second overclocking
Worlds first true overclocking processor
36% performance boost
Overclock 4 core B-clock & Ratio by OC Genie

DrMOS
Excellent energy-saving capability and offers high-computing performance.
Provide superior energy-saving function and maintain an ultimate low temperature operation.
Comes with three incredible features.
Direct OC
Instant CPU Base Clock adjustment
Hardware low latency control
Attain hardware overclocking performance at all circumstances

V-Check Points
Provide CPU VCORE, VTT, DDR, PCH Voltage measure value
Key part's voltage measurement for all end-users
APS (Active Phase Switching)
APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, its for CPU, Memory and Chipset PWM.
Saving Power under Variable Loading.
Power Usage More Efficiency.

M-Flash
Faster and Flexible and instant
If BIOS crash, it still can boot from USB Drive
Update BIOS from USB Drive by M-Flash Fucntion
USB Safeguard
With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices.

Power eSATA
MSI Power eSATA. Normally eSATA devices need extra power via an adapter or an extra USB cable. This combo port supplies the needed power, so no extra USB cable for power is needed. MSI Power eSATA is 8x faster in transferring data than normal USB ports.
All Solid Capacitors
Longer lifespan than electrolytic capacitors
Endurable to operation under higher frequency & temperature
Avoid exploding capacitors to cause mainboards failure

Blu-Ray Audio Support
The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc
Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers
support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs
User Friendly Design
Functions designed with button to be easy use.
Help power-users tweaking process in-chasis enviornment
Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra.

MSI Advanced Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
CrossFireX Support
Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready.
The ultimate multi-GPU performance gaming platform.
Provides 2.7x faster performance than single graphic card solution.

live_update_4
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.


Specifications


CPU

Supports Intel i5 / i7 based processors in LGA1156 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.






Chipset

Intel P55 Chipset
-Supports QPI up to 6.4GT/s
- Hi-Speed USB (USB2.0) controller, 480Mb/sec.
-6 SATAIIports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.



Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2000*/2133* (OC)SDRAM, 16GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size
- SupportsDual channel mode




Slots

2 PCI Express gen2 x16 slots
- If two graphics cards are installed at PCI_E2 & PCI_E4 slots, these two PCIE x16 lanes will auto arrange from x16/ x0 to x8/ x8
- supports ATI Crossfire & NVIDIA SLI
1 PCI Express gen2 x4 slot
2 PCI Express gen2 x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface






On-Board IDE/SATA

One Ultra DMA 66/100/133 IDE controller integrated in JMicron 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

SATAII controller integrated in Intel P55/JMicron363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by P55
- SupportsoneSATAII port by JMicron 363.
- Supportsone eSATA / USB comboport by JMicron 363.
- Supports AHCI controller with AHCI / SATA RAID 0/1/5/10 by P55.

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.




Audio


Chipset integrated by Realtek ALC889
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec




LAN

Supportstwo PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL.




IEEE1394 / FireWire


VIAVT6315N chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.




Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / System x3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
-3 x USB 2.0 connectors
-7 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x Power Button
- 1 x Clear CMOS jumper
-1 x SPDIF-out connector
- 1 x TPM module connector
- 1 x OC Genie Button
-2 x Base Clock Control Buttons

MSI Reminds You...
The floppy disk cable will be optional.

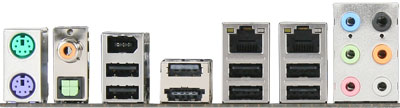

Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x eSATA / USB Comboport


- 1 x IEEE1394 port
-7 x USB 2.0 ports
-2 x RJ45 LAN Jacks
- 1 x 6 in 1 audio jack
- 1 x Optical SPDIF-out
- 1 x Coaxial SPDIF-out




BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.




Dimension

30.5cm(L) x 24.4cm(W) ATX Form Factor

Mounting

9 mounting holes.



Product Accessories


Specifications

Socket 1156
CPU (Max Support) i5/i7
AM3 CPU Ready N/A
FSB / Hyper Transport Bus 6.4GT/s
Chipset Intel P55
DDR2 Memory N/A
DDR3 Memory DDR3 1066/1333/1600*/2000*/2133* (OC)
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 16
PCI-Ex16 2
PCI-E Gen Gen2 (1x16, 1x8)
PCI-Ex4 N/A
PCI-Ex1 2
PCI 2
IDE 1
SATAIII N/A
SATAII 7
RAID 0/1/5/10/JBOD
LAN 10/100/1000*2
TPM 1
USB 3.0 ports (Rear) N/A
USB 2.0 ports (Rear) 8
Audio ports (Rear) 6+Coaxial SPDIF/Optical SPDIF
Serial ports (Rear) N/A
Parallel ports (Rear) N/A
1394 ports (Rear) 1
eSATA 1
VGA N/A
DVI N/A
HDMI N/A
Display Port N/A
DirectX N/A
VGA Share Memory (MB) N/A
Form Factor ATX
DrMOS Y
APS Y
Sideport Memory N/A
SLI Y
3-way SLI N/A
Hybrid SLI N/A
CrossFire Y
Hybrid CrossFire N/A
D-LED2 N/A
Green Power Genie N/A

No additional files, specification sheets, guides or documentation found for product.
