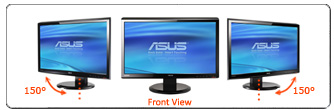

An ergonomically designed LCD monitors that allows you to tilt, swivel and adjust the monitors height for greater viewing comfort
Full HD Enjoyment
Embedded HDMI input with Full HD 1080p resolution delivers multichannel audio and uncompressed digital video through a single cable for the ultimate multimedia entertainment. Supporting HDCP copy protection such as that found on Blu-ray Discs, HDMI simplifies cabling and provides the highest-quality multimedia audio and video experience.
Splendid Video Intelligence Technology
Splendid Video Intelligence Technology is built upon a color engine that automatically analyzes and determines the nature of the users current task, thereafter adjusting the displays parameters accordingly to ensure the best possible color and image fidelity.
Splendid features five video preset modes (Theater, Game, Scenery, Night View and Standard) and three skin tone presets (Natural, Reddish and Yellowish) to enable users to further fine-tune their ASUS monitors to achieve specific results.
Standard Mode allows you to view documents and browse websites comfortably with optimized colors and contrast.
Game mode adaptively brings up dark, hard-to-see areas while leaving the well-lit areas untouchedallowing you to see your enemies lurking in dark corners without washing out the colors as a whole.
Theater mode simulates a theater experience by enhancing the contrast and color saturation of the imagedelivering livelier and vivider visuals for greater immersion.
Scenery mode increases the brightness range, introduces more contrast gradations and selectively tweaks the color saturation of key elements such as blue skies and green fields to make for more captivating land and seascapeskeeping your photos as fresh and vivid as when you were actually there.
Night View mode breathes the beauty back into night vistas by smartly raising the Y-Luminance signal to highlight poorly-lit detailscapturing the scenes beauty in crisp and vibrant fashion.
3 preset skin tone Select between natural, reddish and yellowish skin tone presets for more natural-looking human subjects on screen.
Specifications
| TFT-LCD Panel |
Panel Size: 23.6 Wide Screen
True Resolution: 1920X1080
Pixel Pitch: 0.272mm
Brightness(Max): 300 cd/
Contrast Ratio (Max.): 20000 :1 (ASCR)
Display Color: 16.7M
Viewing Angle (CR10): 170(H)/160(V)
Response Time: 5 ms
|
| Video Features |
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes (5 modes)
Skin-Tone Selection (3 mode)
HDCP support
Color Temperature Selection(5 modes) |
| Audio Features |
Stereo Speakers 2Wx2 stereo RMS
|

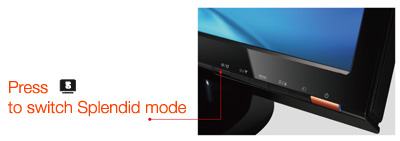

| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment
Input Selection
|
| Input / Output |
PC Input: DVI-D/D-Sub
PC Audio Input: 3.5mm Mini-jack
Video Input: HDMI
AV Audio Input: HDMI
Audio Output: SPDIF
Earphone jack: 3.5mm Mini-jack
|
| Signal Frequency |
Analog Signal Frequency: 30 ~ 83 KHz(H)/50 ~ 75 Hz(V)
Digital Signal Frequency: 30 ~ 83 KHz(H)/50 ~ 75 Hz(V)
|
| Power Consumption |
Power Consumption < 50 W
Power Saving Mode < 1 W |
| Mechanical Design |
Chassis Colors: Black
Tilt: +20~ -5
Swivel: Yes
Height Adjustment
VESA Wall Mounting: 100x100mm
|
| Security |
Kensington lock
|
| Dimension (WxHxD mm) |
Phys.Dimension(WxHxD): 562x424x250mm
Box Dimension(WxHxD): 640x492x234mm
|
| Weight |
Net Weight (Esti.): 7.4 kg
Gross Weight (Esti.): 9.8 kg |
| Accessory |
DVI cable
VGA cable
Audio cable
Power cord
Quick start guide
support CD
warranty card
|
| Regulation Approval |
Energy Star, UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, PSB, J-MOSS, RoHS, WEEE, WHQL
 |
