All stock codes associated to this product
111620540R, 11162-05-40R, 11SHD58501GBT, 11S-HD5850-1GBT
SAPPHIRE TOXIC HD5850 1GB GDDR5 PCIE
Successful graphics processors get award-winning coolers
Combining the highly successful HD 5000 series graphics architecture with its award winning Vapor-X cooling technology, Sapphire introduces Toxic HD 5850. Designed for the enthusiast user, the SAPPHIRE HD 5850 TOXIC Edition is factory overclocked to 765MHz core and 1125MHz (4500MHz effective) memory speeds. The SAPPHIRE HD 5850 TOXIC speeds existing DirectX10.1, DirectX 10 and DirectX 9.0 games and applications, and supports stunning new levels of detail, transparency and lighting effects in the latest releases of software using DirectX 11. |
Vapor-X Cooling

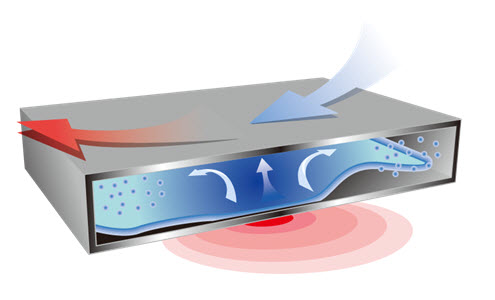

Vapor Chamber Technology is based on the same principles as heatpipe technology. A liquid coolant is vaporised at a hot surface, the resulting vapor is condensed at a cold surface then the liquid is returned to the hot surface. The recirculation process is controlled by a patented wick system.
SAPPHIRE Vapor-X flattens the whole system into a slim chamber - which in the graphics application is mounted in contact with the surface of the graphics chip.
Expand
Expand your visual real estate with ATI Eyefinity Technology, with revolutionary multi-display capabilities that let you see more and get more done.
ATI Eyefinity technology maximizes your field of view across up to three displays, fully engaging your peripheral vision and putting you right IN the game.
- Flight Sim and Racing Games:
Create the ultimate flight or racing simulation platform by extending supported games across multiple displays for a panoramic view that gives you a true sense of height and speed.
- Role-playing Games (RPG):
Get a birds-eye view and spread out game information across multiple screens and still stay in the center of the action.
- Real-time strategy (RTS):
See more of the battlefield without having to zoom.
- First-Person Shooter (FPS):
Get a better view of whats going on around you, use your peripheral vision so you can see the enemy before they see you.
Help increase productivity by maximizing your visual workspace so you can see more Windows simultaneously
The perfect solution for your home or office, ATI Eyefinity technology makes multi-tasking a snap by eliminating the need to flip between windows. Surf the internet, do email, edit photos or videos, track your stocks and much more all at the same time.
ATI Eyefinity technology is ideal for multimedia applications; it allows you to keep several palettes or panels open while you edit images or videos.
Accelerate
Perform tasks on a PC faster with ATI Stream technology, speed up demanding everyday applications and get more done in less time.
Unleash the massive parallel processing power of your GPU to help you do more with your PC than ever before.
With multimedia softwares that support ATI Stream, users can enjoy fast video encoding and transcoding so video playback, editing and transferring content to portable media players is quick and easy.
DirectCompute presents even more opportunities for you to take advantage of your ATI Radeon HD 5800 Series GPU for tasks other than just rendering
- DirectCompute, helps improve PC performance by taking on some or all of a DirectX 11-enabled applications processing load, freeing up the computers mainprocessor to take on additional tasks.
- DirectX 11-enabled applications are designed for fast performance on your PC running Windows 7. In addition, programs designed for Windows 7 can convert a digital media file to a different size or format can perform a faster conversion (i.e. transcode) under Windows 7 than under previous versions of WIndows.
- Windows 7 with built-in drag and drop transcoding is a great example how ATI Radeon HD 5800 Series GPUs provide an exceptional experience for the upcoming operating system.
- High performance anisotropic filtering and 24x custom filter anti-aliasing (CFAA) smooth jagged edges and create true-to-life graphics, for everything from grass to facial features.
Dominate
With DirectX 11 support you can play the latest HD games with unrivalled visual quality, astonishing realism and ultra-fast frame rates.
Get unrivalled visual quality and intense gaming performance and for today and tomorrow with support for Microsoft DirectX 11
- ATI Radeon HD 5800 Series graphics accelerators and software drivers are the first to offer full support for Microsoft DirectX 11.
- Get striking 3D visual effects and dynamic interactivity with DirectX 11 support, including features like HDR Texture Compression, DirectCompute and Tessellation.
- DirectX 11 brings new levels of visual realism to gaming on the PC and youll get top-notch performance for these titles with ATI Radeon HD 5800 Series GPUs.
Get AMDs most advanced technology and massive compute power with ATI Radeon HD 5800 Series GPUs
- AMDs 2nd generation TeraScale engine dramatically increases the processing power over the previous generation.
- Feel the power of more than 2 teraFLOPS plowing through the most demanding games.
- Experience the speed, responsiveness and performance of ultra-high bandwidth GDDR5memory.
- Get up to 1.8X of a graphics performance boost with ATI CrossFireX technology in dual mode.
ATI Radeon HD 5800 Series GPUs are designed to deliver all the benefits of Microsoft Windows 7
Engineered to take advantage of all the graphical features within the new Windows 7 operating system, ATI Radeon HD 5800 Series GPUs deliver a visually compelling experience and a fast, responsive PC.
Sapphire TOXIC HD 5850 System Requirements
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
- 500 Watt or greater power supply with 2x 75W 6-pin PCI Express power connector recommended (600 Watt and four 6-pin connectors for ATI CrossFireX Technology in dual mode)
- Certified power supplies are recommended. Refer to https://ati.amd.com/certifiedPSU for a list of Certified products
- Minimum 1GB of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
- For an ATI CrossFireX system, a second ATI Radeon HD 5850 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per graphics card (optional) are required
- To support 3 displays, one of the monitors has to support DisplayPort.
Features
 |
Vapor-X Cooling Technology |
|
Microsoft DirectX 11 Support |
|
ATI Eyefinity Technology(B.C.) |
|
ATI Stream Technology(A.E.)
- Designed for DirectCompute 5.0 and OpenCL
- Accelerate Video Transcoding
|
|
40 nm Process Technology |
|
Advanced GDDR5 Memory Technology |
|
2nd Generation TeraScale Engine |
|
Microsoft Windows 7 Support(F.) |
|
ATI CrossFireX Technology(D.) |
|
Enhanced Anisotropic Filtering |
|
Accelerated Video Transcoding |
|
Display Flexibility, Supports DL-DVI, DP, HDMI and D-Sub |
|
HDMI 1.3 |
|
Dolby TrueHD and DTS-HD Master Audio Support |
|
ATI PowerPlay Technology Enhanced Support for GDDR5 memory(E.) |
|
ATI Avivo Technology Enhanced Unified Video Decoder 2 (UVD 2)(E.) |
|
Supports OpenGL 3.1 |
|
Remarks
A. ATI Stream Technology Requires Application Support.
B. Driver version 8.66 (Catalyst 9.10) or above is required to support ATI Eyfinity technology and to enable a third display you require one panel with a DisplayPort connector.
C. ATI Eyefinity technology works with games that support non-standard aspect ratios which is required for panning across three displays.
D. ATI CrossFireX technology requires an ATI CrossFireX Ready motherboard, an ATI CrossFireX Bridge Interconnect (for each additional graphics card) and may require a specialized power supply.
E. ATI PowerPlay, ATI Avivo and ATI Stream are technology platforms that include a broad set of capabilities offered by certain ATI Radeon HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products.
F. To support Window 7, a Windows7-capable system is required. |
Specifications
|
SKU Number: 11162-05-40R |
|
I/O Output: Dual DL-DVI-I+DP+HDMI, Triple Display Support |
|
Core Clock: 765 MHz |
|
Memory Clock: Effective 4500 MHz |
|
PCI Express 2.1 x16 bus interface |
|
1024MB /256bit GDDR5 memory interface |
|
Dual Slot Vapor-X Cooler with Auto Fan Control, 2 Ball Bearing |
|
On-board HDMI, supports HDMI 1.3 with High Bitrate Audio |
|
On-board DisplayPort |
