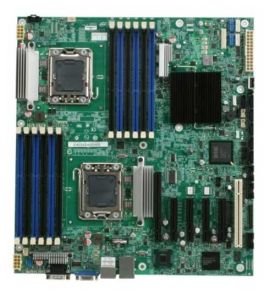

Intel S5520HCR Server Motherboard
  • 2xLGA1366, I5520, 6.4GT/s, 12xDDR3-1333 ECC, 6xSATA-II, RAID, 2xGigLAN, VGA, SSI EEB

IMG 1 of 1
No Longer Available
Part Number:
135582
(?) Brand:
Intel Web Site
Manuf No:
S5520HCR
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
S5520HCR, 1122729, 735858213783

Intel Server Board S5520HC

Essentials
Status Launched
Launch Date Q1 2009
Expected Discontinuance Q3 2012
Intel QPI Speed 6.4 GT/s
# of QPI Links 3
Form Factor SSI EEB (12" X 13")
System Type Pedestal
Supported Chassis SC5600, SC5650
Socket LGA1366
Embedded Yes
Supplemental SKU No
Memory Specifications
Memory Types DDR3 ECCUDIMM, RDIMM
# of DIMMs 12
Graphics Specifications
Integrated Graphics Yes
Expansion Options
PCI Support 1
PCIe x1 Gen 2.x 0
PCIe x4 Gen 2.x 0
PCIe x8 Gen 2.x 1
PCIe x16 Gen 2.x 0
PCIe x1 Gen 1.x 0
PCIe x4 Gen 1.x 1
PCIe x8 Gen 1.x 0
PCIe x16 Gen 1.x 0
PCI-X Slots 0
IO Expansion x4 Gen 1.x 0
I/O Specifications
USB Revision USB 2.0
USB 2.0 Configuration (Back + Internal) 6
# of SATA Ports 6
# of eSATA Ports 0
RAID Configuration Intel Emb RAID (0,1) with upgrd opt to RAID5
# of PATA Ports 0
# of Serial Ports 2
Audio (back channel + front channel) None
Integrated LAN Double, GbE
Firewire No
Integrated SAS Ports 0
Package Specifications
Max CPU Configuration 2
Halogen Free Options Available No
Advanced Technologies
Intel Remote Management Module AXXRMM3
IPMI IPMI 2.0
Intel TPM No

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
