TT-TPX-875MPCAU | ThermalTake 875W ToughPower XT - ATX 12V v2.3, EPS 12V v2.91, 140mm Fan, Modular Products, SLI Ready, 80 PLUS Bronze Certified

for PC hardware - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Power Supplies -> 800W - 899W -> ThermalTake

ThermalTake 875W ToughPower XT - ATX 12V v2.3, EPS 12V v2.91, 140mm Fan, Modular Products, SLI Ready, 80 PLUS Bronze Certified
8xSATA, 2xPCI-E 6+2-Pin, 2xPCI-E 6-Pin

No Longer Available

Part Number:

136794

(?) Brand:

ThermalTake Web Site

Manuf No:

TT-TPX-875MPCAU
TTTPX875MPCAU

Shipping Weight:

4 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

TTTPX875MPCAU, TT-TPX-875MPCAU

	Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.91 standards.

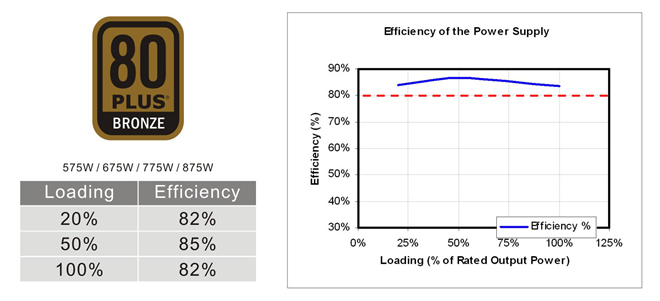

	80 PLUS Bronze certified - provide up to 88% effective power conversion to cut- down electric cost.
	24/7 @ 50 C: Guaranteed to deliver 575W / 675W / 775W / 875W continuous output power.

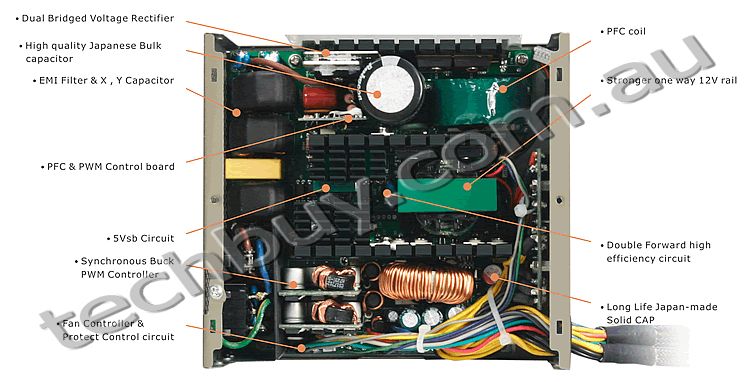

	Double-forward switching circuitry: compared with traditional circuitry, double- forward switching circuitry offers low power loss and high reliability.
	Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.
	S.P.T. indicator: PSU status monitor with 3-mode LED (standby / PG signal / temperature).
	12Vin1: single +12V rail design providing up to 48A / 56A / 64A / 72A.
	High quality Japanese capacitors: ensure superb performance and reliability.
	Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
	Fan Delay Cool Technology: allow fan to continue to operate after system shuts-down to ensure all components are properly cooled.
	Multi-GPU ready: support up to two PCI-E 6+2pin & two PCI-E 6pin for PCI-Express graphic cards.
	Auto switching circuitry for universal AC input from 90-264V.
	Active Power Factor Correction (PFC) with PF value of 0.95 at full load.
	High reliability: MTBF>120,000 hours.
	DIMENSION: 5.9"(W) x 3.4"(H) x 6.3" (L); 150mm(W) x 86mm(H) x 160mm(L).
	Built in industrial-grade protections: Over Current, Over Power, Over Voltage, Under Voltage, and Short-Circuit protections.
	Safety / EMI Approvals: UL/ CUL, TUV, FCC, CE, BSMI and GOST certified.



Industrial-grade capacitors provide uncompromised performance and reliability.



S.P.T. indicators enable the user to check the power supply status themselves by viewing the standby, PG signal and temperature LED.	Powerful single +12V rail provide best performance for PCs with high-performance components.	With DC to DC converter of +3.3V & +5V circuit built in, the power supply provides superior dynamic response and great system stability.

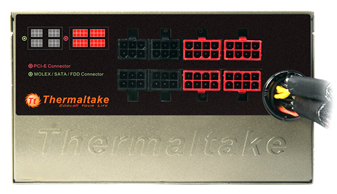

Cable management design improves internal airflow and reduce clutter.

-C6 State CPU Mode
CPU load range from Max. to only 1W.

-Nvidia & ATI/AMD multi graphic cards configuration
Hybrid mode will cause graphic cards load range from Max. to only 1W.
New Toughpower XT series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.



Main Power Connector (24Pin) x 1	ATX 12V (4+4Pin) x 1	EPS 12V Connector (8Pin) x 1	PCI-E 8Pin (6+2Pin) x 2



SATA connector (5Pin) x 8	Peripheral Connector (4Pin) x 6	FDD Connector (4Pin) x 1	PCI-E Connector (6Pin) x 2

To better protect your power supply, FanDelayCool, enable the 14cm fan continue to operate (up to 30 seconds) after system shutdown. This is to assure all components inside the power supply to be thoroughly cooled off and gain the longest lifetime.

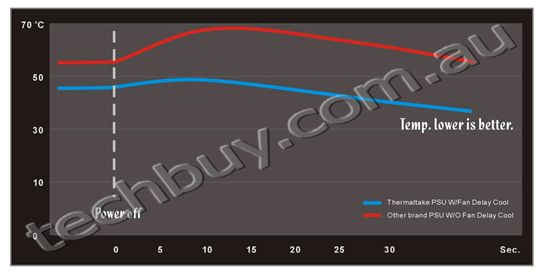

Unlike traditional power supplies, temperature inside Toughpower XT does not rise after system shutdown. The most important purpose of FanDelayCool is to thoroughly cool down your power supply and extend the lifetime of all the components inside. See the test results below:

Specifications


GENERAL:
- Wattage	875 Watts

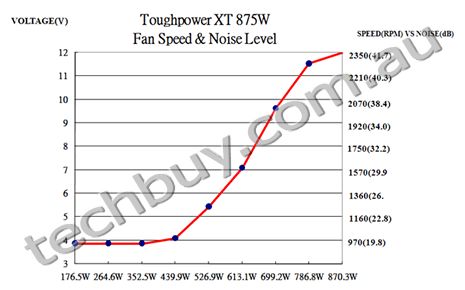

- Fan	140mm Fan 1900RPM 10%
- Efficiency	up to 89%
- PFC	Active PFC
- Hold-Up Time	15 ms
- Switches	ATX Logic on-off additional power rocker switch
- Motherboard Connectors	24-pin Main Connector 8-pin Power Connector 4+4-pin Power Connector
- Power Good Signal	100-500 ms
- Form Factor	ATX 12V 2.3
- Dimension	6.3 x 5.9 x 3.4 inch (L)x(W)x(H) 160 x 150 x 86 mm (L)x(W)x(H)
- Warranty	5 Years
- Certifications	ATI CrossFireX Certified NVIDIA SLI Certified 80PLUS Bronze Certified
AC INPUT:
- Input Voltage	100 VAC ~ 240 VAC
- Input Current	12A / 6A
- Input Frequency Range	47 ~ 63 Hz
- Inrush Current
- Operating Range
- MTBF	120,000
- RFI / EMI	CE, CB, TUV, FCC, UL, CUL, BSMI

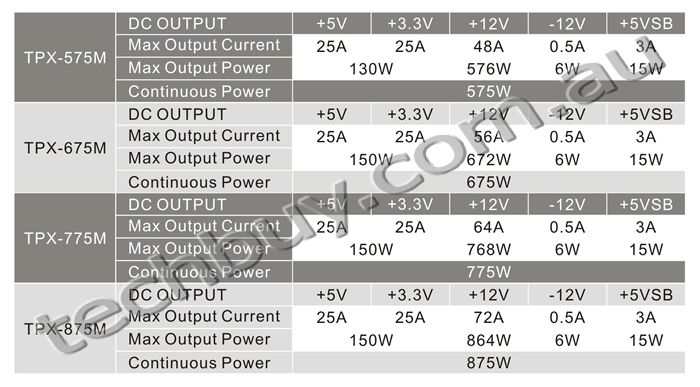

DC OUTPUT:
ENVIRONMENT:
- Operating Temperature	10 to 50
- Storage Temperature	-20 to 70
- Operating Humidity	20% to 90%, non-condensing
- Storage Humidity	5% to 95%, non-condensing
PROTECTION:
- Over Voltage Protection	Yes
- Over Current Protection	Yes
- Over Load Protection	Yes
- Over Termperature Protection	Yes
- Under Voltage Protection	Yes
- Short Circuit Protection
