Alluring high glossy piano-black finish makes the MS Series the centerpiece of every living space.
Ultra-slim 16.5mm Profile
Sleek geometric design combines straight lines and curves with an ultra-slim 16.5mm profile.

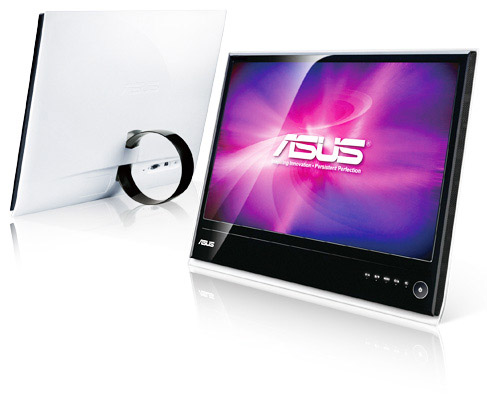

Ring Stand with Ergo-Fit Technology
Unique ring stand design features the ASUS-exclusive Ergo-Fit Technology; allowing for easy tilt adjustments with one finger.
LED Touch-Sensor Buttons
Intuitively adjust the monitors settings with a simple touch of its LED sensor buttons.
Pure Pearl-White Rear Bezel
The delicate wave-like contours on its rear bezel is complemented by a gleaming pearl-white finish.
Expand Your Visual Field

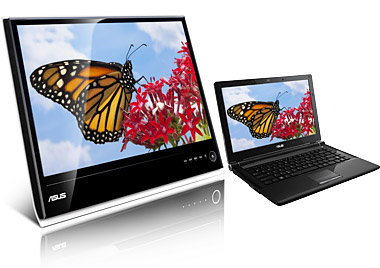

The MS202D works as a secondary screen for your notebook; and has been ergonomically designed to be level with your eyes and notebook screen.
Dazzle Your Visual Senses
ASUS Smart Contrast Ratio
Be captivated by stunning images with ASUS Smart Contrast Ratio (ASCR) technology that boosts the displays contrast ratio to an astonishing 50,000:1.
Aspect Ratio Control
Viewing 16:9 video content or 4:3 images on a generic widescreen LCD monitor usually results in distortion. With ASUS widescreen LCD monitors, however, youll have the option of selecting either a Full or 4:3 aspect ratio from the OSD menu to ensure that the original image is displayed perfectly.
Splendid Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 5 preset video modes (Scenery, Theater, Game, Night View, and Standard) can be selected via a hotkey.
Care for the Earth
The eco-friendly design reduces power consumption by 40% and is manufactured with 50% less hazardous materials.
Specifications
| TFT-LCD Panel |
Panel Size: 20 Wide Screen
Color Staturation 72%(NTSC)
True Resolution: 1600x900
Pixel Pitch: 0.277mm
Brightness(Max): 250 cd/
Contrast Ratio (Max.): 50000 :1 (ASCR)
Display Color: 16.7M
Viewing Angle (CR10): 170(H)/160(V)
Response Time: 5 ms
|
| Video Features |
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes (5 modes)
Skin-Tone Selection (3 mode)
Color Temperature Selection(5 modes) |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Contrast Adjustment
|
| Input / Output |
PC Input: D-Sub
|
| Signal Frequency |
Analog Signal Frequency: 30~85 KHz(H)/ 55~75 Hz(V)
|
| Power Consumption |
Power Consumption < 25 W
Power Saving Mode < 1 W |
| Mechanical Design |
Chassis Colors: Black/White
Tilt: +10~+20
|
| Security |
Kensington lock
|
| Dimension (WxHxD mm) |
Phys.Dimension(WxHxD): 496.8x362.4x150.9mm
Box Dimension(WxHxD): 555 x 414 x 129mm
|
| Weight |
Net Weight (Esti.): 3.1 kg
Gross Weight (Esti.): 4.1 kg |
| Accessory |
VGA cable
Power cord
Power adapter
Quick start guide
warranty card
|
| Regulation Approval |
Energy Star, UL/cUL, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, MEPS, VCCI, PSE, J-MOSS, PSB,China Energy Label, RoHS, WEEE, Windows Vista WHQL
 |
