ASUS USB-N10 Wireless Network Card - Up to 150Mbps, 802.11n/g/b, 2.4GHz, EZ WPS - USB2.0

No Longer Available

Part Number:

140065

(?) Brand:

ASUS Web Site

Manuf No:

USB-N10
USBN10

Shipping Weight:

0.2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

USBN10, USB-N10, ASUSBN10, AS-USB-N10

USB-N10

EZ N Network Adapter

Excellent Connection
Strong and convenient USB connection for fast downloads, rapid file transfers, and low-latency media streaming
PSP Xlink Kai Support
Play system games with PSP users worldwide via the internet
EZ WPS
Improve Wi-Fi security with easy WPS Wizard
Support the newest Window 7 and Mac 10.6 Operating Systems

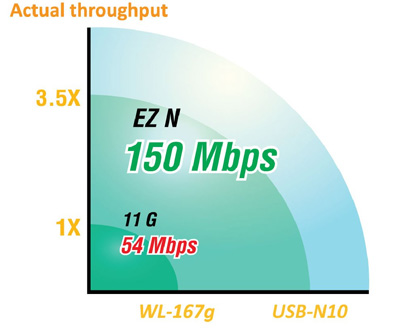

EZ N First-class Performance

The ASUS USB-N10 provides superior wireless performance for your PC compared to legacy wireless 802.11g technology. It uses a best-in-class MIFA antenna to deliver consistent HD quality data streaming and a much wider wireless operating range. In addition to providing better bandwidth and coverage, the 802.11n standard it also backward compatible with 11g and 11b networks, ensuring existing networking hardware can be fully utilized.

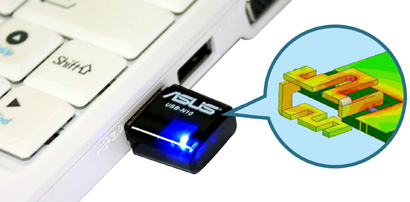

Breakthrough Antenna Design

The wireless USB adapter incorporates an impressive MIFA antenna which is better than PCB and Chip antennas widely used in generic adapters. This integrated antenna and connector design provides a compact form factor that is much smaller than conventional adapters and greatly expands the transmission range.

Extremely Compact and Powerful

USB-N10 is the smallest wireless USB adapter in the world. Boasting a 3 cm body length, it is easy to carry and takes up little space when attached to a notebook. Compared to most USB Wi-Fi adapters, it is extremely compact and sturdy with its pocket-sized format and strong plug-in design. This small size and strengthened one-piece shape allows a host notebook to be connected to the USB-N10 even when it is placed in a slim carrying case or bag. Thus you can enjoy constant connectivity with the ASUS USB-N10!

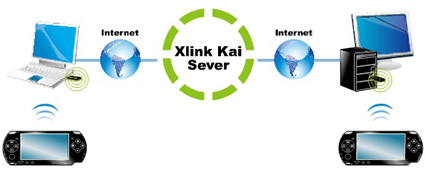

PSP Xlink Kai Support

Similar to the USB-N13, the USB-N10 delivers PSP Xlink connection support. You can play system-link games over the Internet rather than just over your LAN while on-the-move.

Click Here for Setup Instructions

Multiple OS Support - Windows, Mac and Linux

USB-N10 allows you to easily enjoy wireless networking over various platforms. It is compatible with common operating systems such as Windows, Linux, Mac, and even the newest Windows 7 OS.

Specifications

Network Standard	IEEE802.11b, IEEE802.11g, IEEE802.11n
Interface	USB2.0
Antenna	2 * Internal Antenna (MIFA antenna on USB connector ).
Operating Frequency	2.4 ~ 2.5 GHz
Operation Channel	11 for N. America, 13 Europe (ETSI), 14 Japan
Data Rate	802.11nTx: 150Mbps (Max) / Rx: 150Mbps (Max) 802.11g54/48/36/24/18/12/9/6Mbps 802.11b11/5.5/2/1Mbps
Output Power	11b 17 +/- 1 dBm 11g 15 +/- 1 dBm@54Mbps 11n 13 +/- 1 dBm (14.5dBm)
LED Indicator	OFF: All others states ON: Radio On and Associated, WPS Associating Blink: Radio On and Scanning Flash: Radio On and Associated and TX/RX Data
Modulation	OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Range	Up to 150m
Management	Xlink Kai( Win XP only)
Utilities	Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature. WPS Wizard: High-speed wireless network is just a few clicks away
Receiver Sensitivity	-84 dBm @11 Mbps -70 dBm @54 Mbps -67 dBm @64-QAM, 20MHz channel spacing -64 dBm @64-QAM, 40MHz channel spacing
Certifications	CE, FCC, IDA, IC, C-Tick, NCC, GOST
Physical Specifications	Dimensions30mm17mm8.5mm
Environmental Specification	Temperature: 0 ~ 40 C ambient Storage Temperature: -10 ~ 70 C ambient Humidity: 5 ~ 90% and must be non-condensing
Package Contents	USB Wireless Adapter 1 Quick start guide1 Support CD 1 Warranty Card1
Network Architecture Types	Infrastructure and ad-hoc
Encryption	64/128-bit WEP, TKIP, AES, WPA-PSK, WPA2-PSK
OS Support	Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64) Mac 10.4/10.5/10.6 Linux 2.4/ 2.6 (Support Redhat 2.4, Ubuntu 2.6 and Fedora 2.6 only)

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
