IMG 1 of 5
No Longer Available

Part Number:
140213
(?) Brand:
Manuf No:
WD7500BPVT
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
WD7500BPVT, HDDWDD75025V, 06WD7500BPVT, WD35006

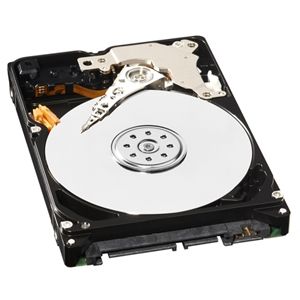

WD ScorpioBlue
Mobile Hard Drives
750 GB, SATA 3 Gb/s, 8 MB Cache, 5400 RPM

Big capacity for portable computing.

WD Scorpio Blue 2.5-inch drives offer high-performance, low power consumption and cool operation, making them ideal for notebooks and other portable devices.

With available SATA or PATA interfaces, WD Scorpio Blue drives offer high-performance, low power consumption, and cool operation, perfect for notebooks and other portable devices. Pick the drive that suits your needs with the confidence in knowing that all WD Scorpio Blue drives are built to the highest standards of quality and reliability.

Key Features

Massive capacity - Storage capacity for 2.5-inch form factor drives has arrived at a realm once thought to be impossible up to 1 TB for mobile storage.* Whether they are in an external drive or a notebook computer, WD Scorpio Blue SATA drives continue to offer the highest capacity for space-hungry operating systems with plenty of room left over for photos, music, and video.
Quiet - In a notebook drive, silence is golden. WD's exclusive WhisperDrive combines state-of-the-art seeking algorithms to yield one of the quietest 2.5-inch hard drives on the market. These algorithms also optimize the way a drive seeks for data, which significantly improves power consumption. So now silence (and longer battery life) is golden.
Reliable and rugged - WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks. WD's SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Fast and efficient - Ultra-fast 3 Gb/s SATA interface speed yields performance fit for demanding mobile applications.
Advanced Format Technology - Technology being adopted by WD and other drive manufacturers to increase media format efficiencies, thus enabling larger drive capacities. (PVT models only)
Tested for compatibility - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.
*TPVT models are 12.5 mm high and may not be compatible with all notebook systems. Consult system specifications for maximum allowable drive height before attempting to install.
Ideal For

Portable digital devices of all kinds including notebook computers, external storage, and digital media players.

Specifications
Performance Specifications
Rotational Speed 5,400 RPM (nominal)
Buffer Size 8 MB
Average Latency 5.50 ms (nominal)
Seek Times
Read Seek Time 12.0 ms
Track-To-Track Seek Time 2.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 750,156 MB
Capacity 750 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 1,465,149,168
Physical Dimensions
English
Height 0.374 Inches
Length 3.94 Inches
Width 2.75 Inches
Weight 0.34 Pounds
Metric
Height 9.5 mm
Length 100.2 mm
Width 69.85 mm
Weight 0.15 kg
Environmental Specifications
Acoustics
Idle Mode 22 dBA (average)
Seek Mode 0 25 dBA (average)
Temperature (English)
Operating 32 F to 140 F
Non-operating -40 F to 149 F
Temperature (Metric)
Operating -0 C to 60 C
Non-operating -40 C to 65 C
Humidity
Operating 8% to 95% Non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating 0.00459 g/Hz (10 to 500 Hz)
Non-operating 0.05102 g/Hz (10 to 500 Hz)
Electrical Specifications
Current Requirements
5 VDC
Read/Write 500 mA
Idle 400 mA
Standby 50 mA
Sleep 20 mA
Power Dissipation
Read/Write 1.6 Watts
Idle 0.65 Watts
Standby 0.20 Watts
Sleep 0.20 Watts
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Specification Sheets / Installation guides / Associated files

Warranty: 2 Years

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
