HOME / Back -> Power Supplies -> 600W - 699W -> CoolerMaster

CoolerMaster 650W GX Series - ATX 12V v2.31, EPS 12V v2.91, 120mm Fan, 80 PLUS Bronze Certified, SLI Ready, CrossFireX
  • 6xSATA, 2xPCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
140616
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS650-ACAAD3
RS650ACAAD3
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS650ACAAD3, RS650-ACAAD3, PSCORS650ACAAD3, 745883579549
Introduction
The latest addition from Cooler Master is a range of 550W, 650W and 750W power supplies that specifically targets upper mid-range to high-end gaming systems, the Cooler Master GX Series. The Cooler Master GX range of power supplies feature a single powerful +12V rail that has been designed to deliver more than ample power to dual graphics card systems, no matter if you use SLI or CrossFireX.

Features
  • Compliance with the latest Intel standard ATX 12V V 2.31
  • Single +12V rail for the most demanding SLI configurations
  • High efficiency design that meets 80 Plus requirements (85% typical)

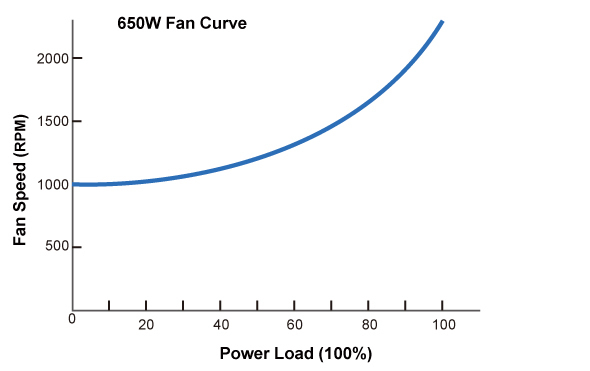

  • Ultra-silent operation with intelligent 120mm fan speed control
  • Multiple protection design (OVP / UVP / OPP / OTP / SCP)
  • High reliability (MTBF>100,000 hours)

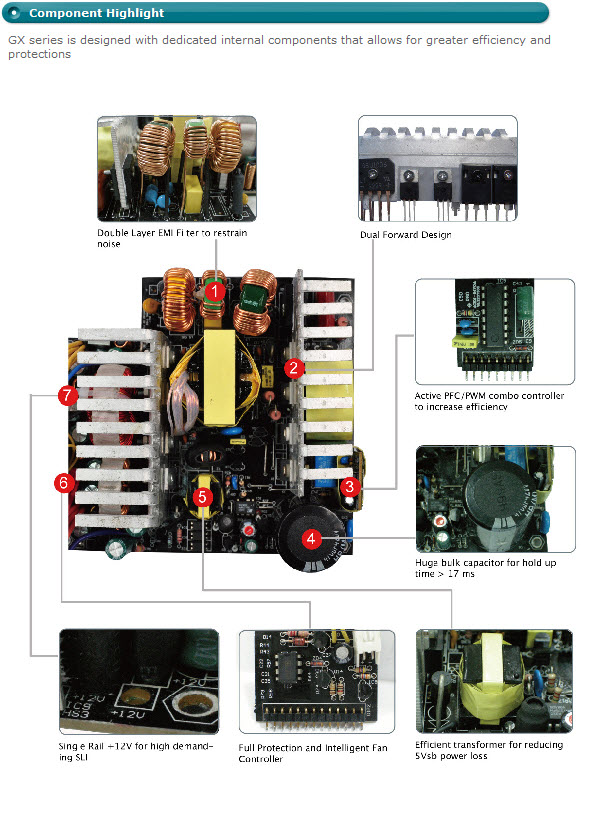

  • Double Layer EMI Filter restrains noise and injury to end-user
  • Huge bulk capacitor for hold up time >17ms at full loading
  • Integrating Active PFC with PWM combo controller not only make PFC higher than 0.99, but also raises efficiency
  • Efficient transformer for reducing 5Vsb power loss when the system is at turn-off and sleep modes
  • Five-year warranty

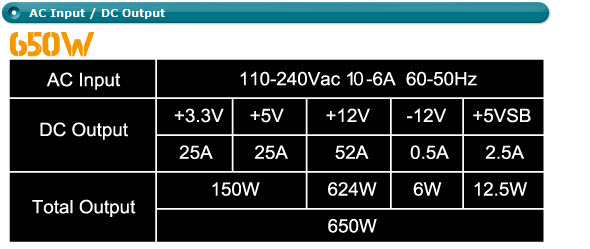

Specifications
Model RS-650-ACAA-E3

Type Intel Form Factor ATX 12V V2.31

Dimension (W / H / D) 150 x 140 x 86mm
5.9 x 5.5 x 3.4 inch

Input Voltage 90-264Vac (Auto Range)

Input Current 10@115Vac, 6A@230Vac

Input Frequency Range 47-63Hz

PFC Active PFC (>0.9)

Power Good Signal 100~500ms

Hold Up Time >17ms

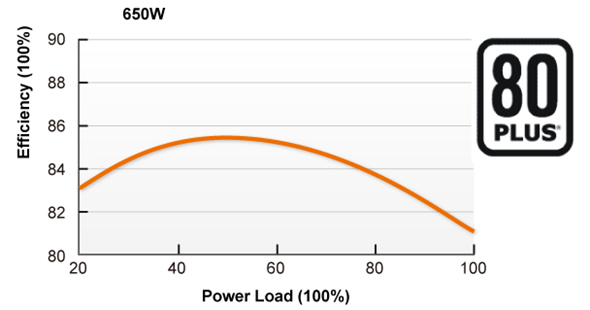

Efficiency 85% typical

MTBF >100,000 hours

Protection OVP / UVP / OPP / OTP / SCP

Output Capacity 650W

Max. Output Capacity 780W

Operation Temperature 0~40C (Nominal Input Voltage)

Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / CCC / KCC

Fan 120mm

Certifications 80 PLUS

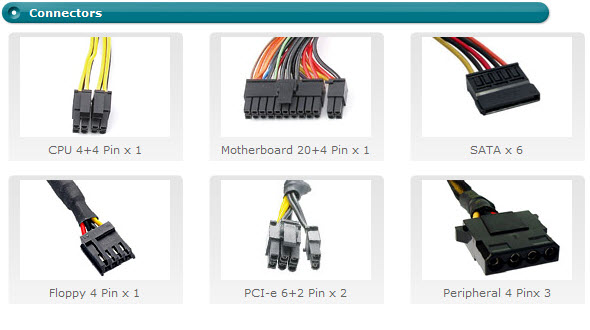

Connector 20+4 Pin MB x 1
4+4 Pin CPU 12V x 1
6+2 Pin PCI-e x 2
SATA x 6
4 Pin Peripherial x 3
4 Pin Floppy x 1


No additional files, specification sheets, guides or documentation found for product.
