All stock codes associated to this product
TPQ1200OC, TPQ-1200OC
1200W Continuous Power

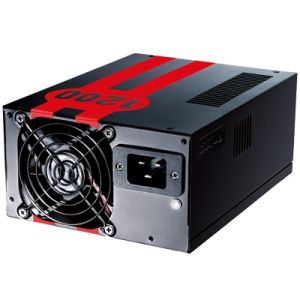

Take the lead with the TruePower Quattro 1200
Combining 1200 watts of stable and quiet power with cutting-edge efficiency and style, the TruePower Quattro 1200 blasts ahead of the competition. Six +12V rails deliver unbeatably stable power that earns the rare 80 PLUS Silver distinction, the highest independently certified standard in energy efficiency. Factor in the ultra-quiet Pulse Width Modulation fan, advanced cable management and the stylish racing stripe paint job, and the TruePower Quattro 1200 leaves every other power supply in the dust.

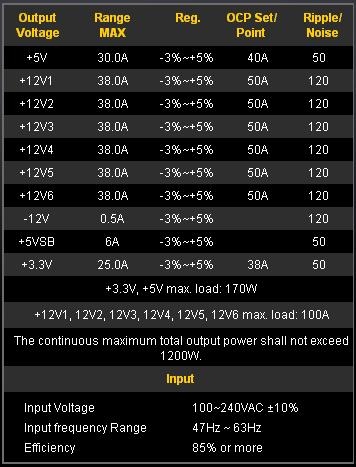

Output Table :
Certification:
Features:
PowerCache, a high-performance capacitor that delivers an extra power reserve when and where users need it most
NVIDIA SLI - ready certified and ATI CrossFire certified
80PLUS Silver Certified - 85% or more efficiency at 20%, 50%, and 100% load
Designed to support quad core, Core i7 and Core i5 CPUs, quad GPUs
Six 12V output circuits and DC to DC Voltage Regulator Modules ensure supreme system stability
80mm cooling fan uses Pulse Width Modulation for whisper-quiet operation
Advanced sleeved cable management improves airflow and reduces clutter
Gold plated connectors for superior conductivity
Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
Universal Input and Active PFC allow the Quattro to operate efficiently on any power grid in the world
Operating Temperature:
Approvals: UL, CUL, FCC, TV, CE, C-tick, CCC, CB, BSMI
TPQ-1200 OC edition available from select Antec resellers with the following overclocking features:
- Speed control knob for PSU cooling fan (Min. - Max.)
- +12V output voltage knob (11.8V - 12.4V)
- Two additional 6 PCI-E Connectors
- Two additional 8 (6+2) PCI-E Connectors
Unit Dimensions:
- 3.4" (H) x 5.9" (W) x 7.9" (D)
- 86mm (H) x 150mm (W) x 200mm (D)
Package Dimensions:
- 9.4" (H) x 12.4" (W) x 5.3" (D)
- 240mm (H) x 315mm (W) x 135mm (D)
Net Weight: 7.0 lbs / 2.72 kg
Gross Weight: 10.0 lbs / 4.53 kg
