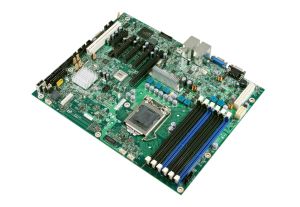

Intel S3420GPLX Motherboard
LGA1156, I3420, 6xDDR3-RDIMM or 4xUDIMM RAM, 6xSATA-II, RAID, 2xGigLAN, VGA, ATX

No Longer Available

Part Number:

144385

(?) Brand:

Intel Web Site

Manuf No:

S3420GPLX

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

S3420GPLX, 1066794, 735858211802

Intel Entry Server Board S3420GPLX has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series


Intel Entry Server Board S3420GPLX
Intel Xeon Processor 3000 Sequence

Tech Specs
Product Description
Intel Entry Server Board S3420GPLX has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series
Supported Chipset
Intel 3420 Server Chipsets
Memory Capacity
Support up to 32GB Registered or 16GB Unbuffered ECC DDR3 memory Loading requirements: - 1066/1333 Registered (RDIMM) Single or Dual Rank 3 per channel (6 sockets total) - 1066 Registered (RDIMM) Quad Rank 2 per channel (4 sockets total) - 1066/1333 Unbuffered (UDIMM) Single or Dual Rank 2 per channel (4 sockets total) See Technical Product Specification for supported detail memory configuration information NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment.
PCI Slot Type
Six PCI Slots: - One 5V PCI 32 bit / 33 MHz - One PCI Express* Gen1 x4 (x1 throughput) - One PCI Express* Gen1 x8 (x4 throughput) - One PCI Express* Gen2 x8 (x4 throughput) - One PCI Express* Gen2 x8 (x8 throughput) - One PCI Express* Gen2 x16 (x8 throughput)
Storage
Integrated IPMI 2.0 compliant Baseboard Management Controller
Supported Processor
Intel Xeon Processor 3400 Series

Target Market
Intel Entry Server Board S3420GPLX is an affordable General purpose Uni-Processor server with essential server class features and can be easily deployed in pedestal or rack mount chassis

Supported Chassis	Intel Entry Server Chassis SC5650UP; SC5299DP; and SC5299BRP
Number of Processors Supported	One
Independent PCI Buses
Total PCI Slots	Six
Integrated SAS	N/A
Integrated SATA	Supports six Serial ATA II hard drives
Integrated SCSI	N/A
Integrated LAN	One Gigabit Ethernet PHY 82578 connected to PCH through PCI-E x1 interface and one Gigabit Ethernet PHY 82574
Integrated Graphics	Onboard ServerEngines* LLC Pilot II BMC Controller - Integrated 2D Video Controller - 64-MB DDR2 667 MHz Memory
USB Connections	- Four ports on two USB/LAN combo connectors at rear of board - Two internal USB 2x5 pin headers, each supporting two USB 2.0 ports
Server Management	Intel System Management Software 3.5
Supported Operating System	Fully validated Operating Systems: - Microsoft Windows 2003, Enterprise Edition, SP2 (IA32 & EM64T) - Submission Logo ID: 1349281 - Microsoft Windows Server 2008, SP2 (IA32 & EM64T) and R2 (EM64T) - Submission Logo ID: 1350308 - RedHat* Enterprise Linux 5.0 Advanced Server, U4 (IA32 & EM64T) - SuSE* Linux Enterprise Server 11 (IA32 & EM64T) Install Only supported Operating Systems: - Microsoft Windows* XP (32bit and 64bit) SP2 - SuSE* Linux Enterprise Server 10; SP3 (IA32 & EM64T) - RedHat* Enterprise Linux4.0; U8 Advanced Server, U4 (IA32 & EM64T) - VMWare* 4.0 Update 1 (Requires additional add-in NIC card) - Certification: INT-17NOV09
Dimension	ATX - 12" x 9.6"
System Bus	Intel QuickPath Technology
Integrated RAID Support	Onboard SW RAID 0, 1, 5, and 10
Warranty	Three-year limited

Items Included With This Product

Item	Part Number	MM#	# Required	Description
Intel Entry Server Board S3420GPLX	S3420GPLX	902720	1	Intel Entry Server Board S3420GPLX has PCIe/PCI support, six SATA ports and Dual GbE. Compatible with Intel Xeon processor 3400 series
